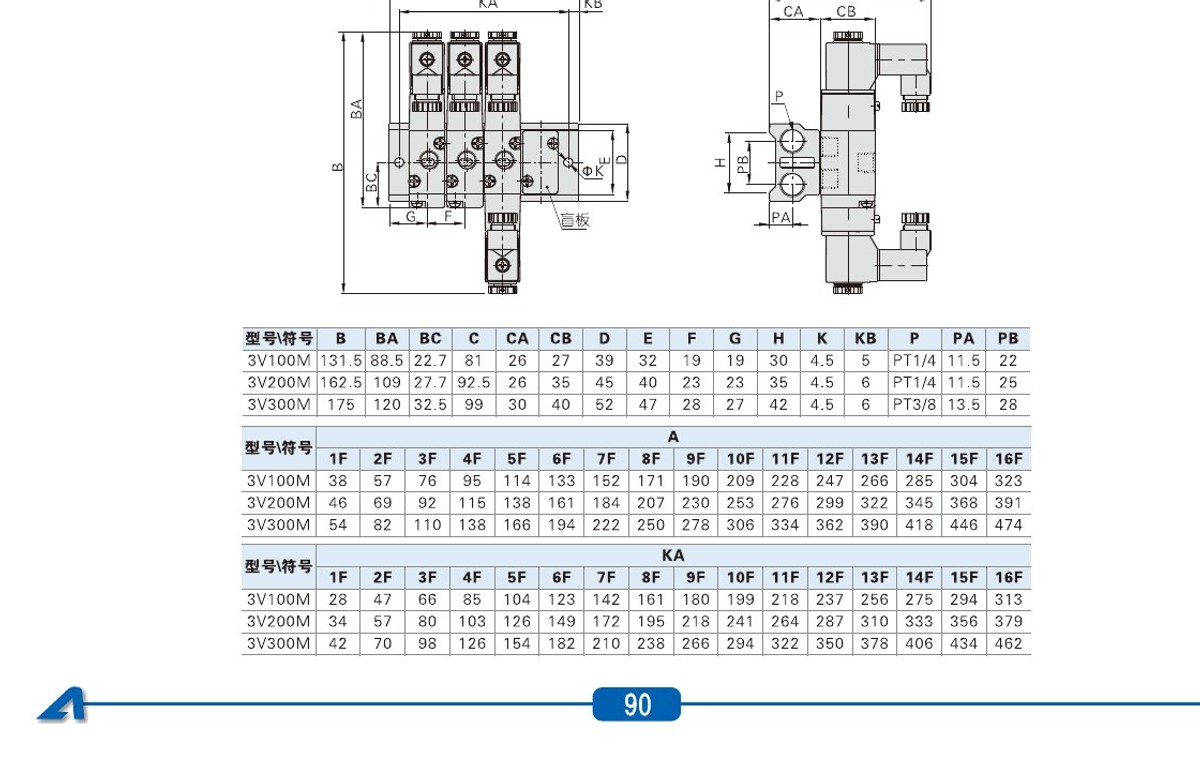

This reference covers 3V100M, 3V200M and 3V300M manifold bases and their panel components. Match the valve family, station count, thread, inlet/exhaust arrangement and mounting dimensions...
Ordering code matching
Code format

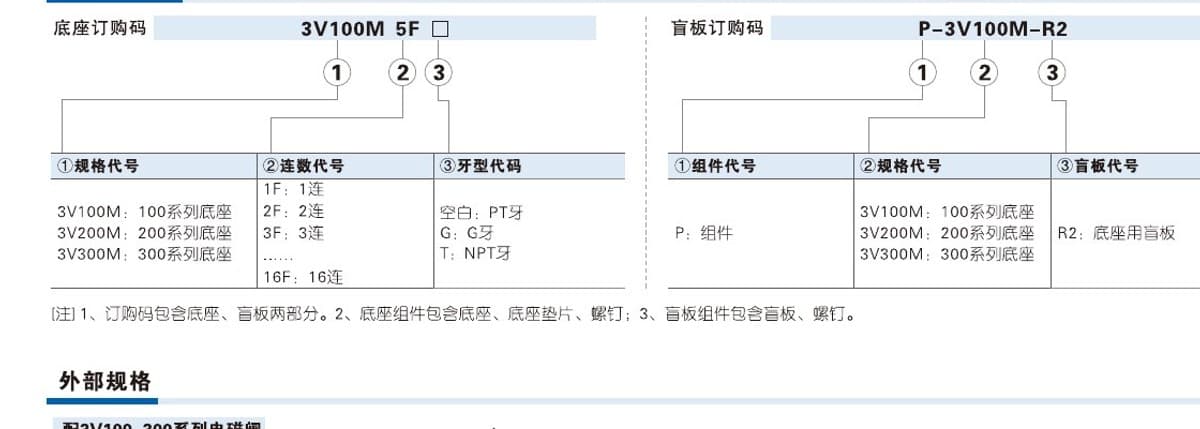

3V100M / 3V200M / 3V300M [1F–16F] [PT/G/NPT]Published manifold-base code layoutP-3V100M / P-3V200M / P-3V300M-R2Published panel component code3V100M 5F3V200M 3F GP-3V100M-R2| ①Valve family | ②Stations | ③Thread/component |
|---|---|---|
| 100M for 3V100; 200M for 3V200; 300M for 3V300. | 1F through 16F connected stations. | Blank PT; G G; T NPT. P-…-R2 identifies the published panel component. |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
3V100M
Base for 3V100 valves
3V200M
Base for 3V200 valves
3V300M
Base for 3V300 valves
If the label is incomplete, send the readable parts together with a photo.
3V100M 5F G3V100M / 3V200M / 3V300MBase family
Matches the 3V100, 3V200, or 3V300 valve family.
5FStation count
1F to 16F published connected stations.
GThread
Blank PT; G G thread; T NPT thread.

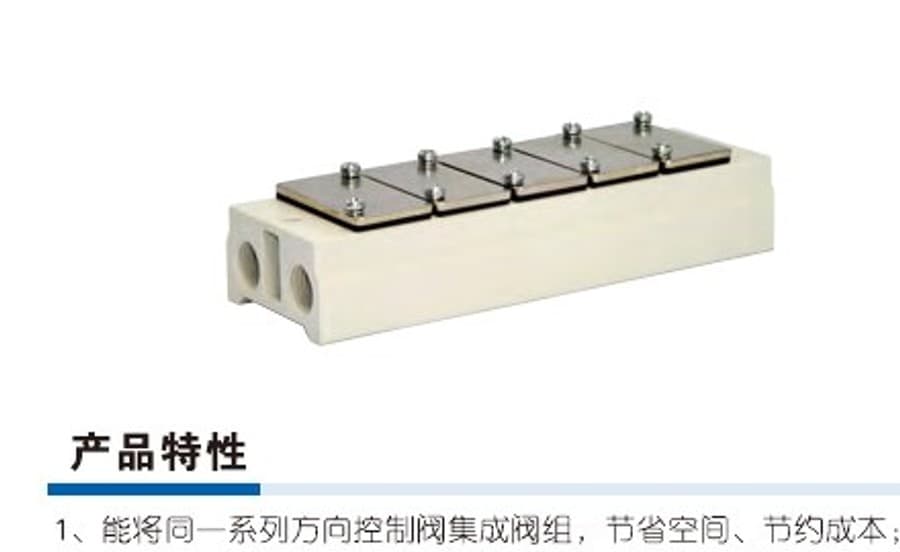

3V100M, 3V200M and 3V300M are manifold-base families for their corresponding valve series. They are not interchangeable valve bodies: select the matching valve family, number of stations, port thread and panel/base component arrangement.
Product matching reference
No. The published base codes correspond to their own 3V valve families. Match the valve family, station count, thread and panel/base arrangement...
