Home/Product Series/AirTAC Sourcing/Solenoid Valves/3V1

AirTAC 3V1 Solenoid Valve Sourcing

AirTAC 3V1 is a direct-acting, normally closed 3/2-way solenoid valve series. Confirm the full model, coil voltage, port specification, installation direction and required valve...

Request type
AirTAC originalModel matchingChina-source alternative
Start RFQSend photo / label
3V1Solenoid Valves
3V1 solenoid valve product reference
Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

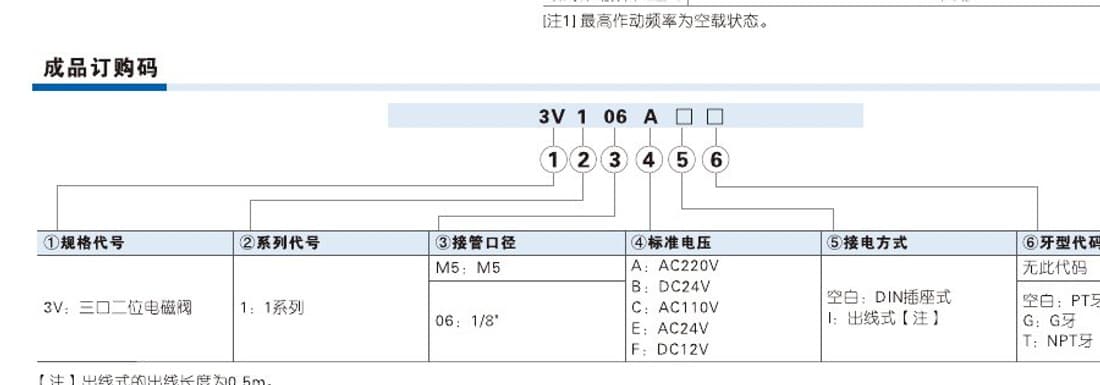

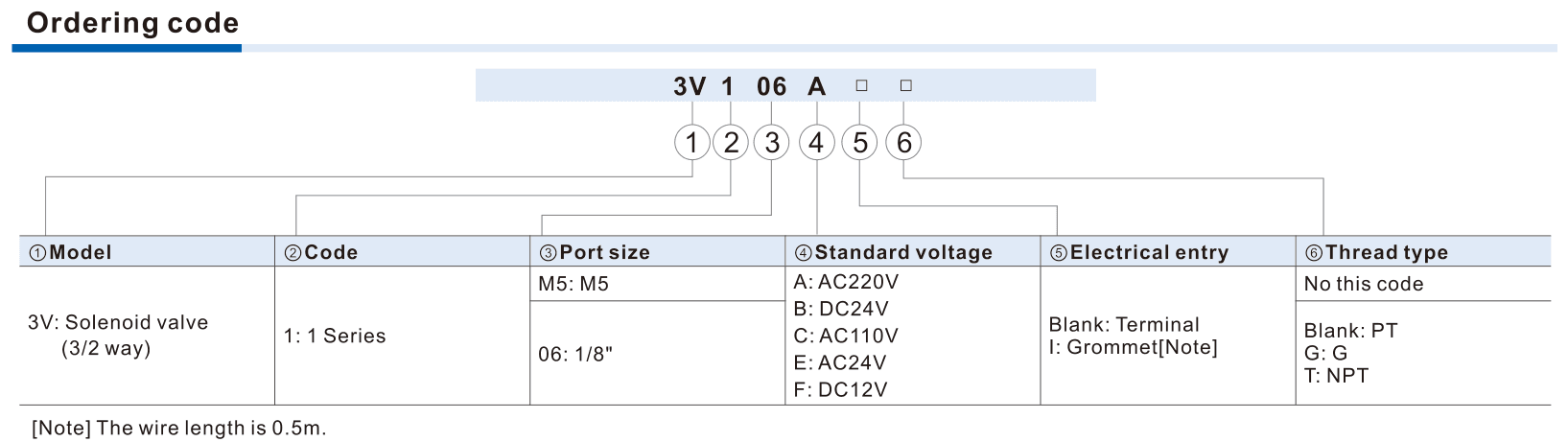

Code format

3V1 [M5/06] [A-F] [DIN/lead] [PT/G/NPT]Published 3V1 code layout
3V1-M53V1-06-A3V1-06-B-G
①Valve②Port③Voltage④Output/thread
3V1 direct-acting, normally closed 3/2 valve.M5 or 1/8 inch.A AC220V; B DC24V; C AC110V; D AC24V; E AC12V; F DC12V.Blank DIN plug; I lead; blank PT, G or T thread.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

3V 1 06 A

3VValve family

Three-port, two-position solenoid valve.

1Series

3V1 direct-acting series.

M5 / 06Port

M5 or 1/8 inch port.

A–FVoltage

Published AC/DC voltage code.

I / G / TOutput/thread

Blank DIN plug; I lead; blank PT, G or T thread.

About 3V1

A compact direct-acting 3/2-way valve reference for normally closed pneumatic control. The exact code and installed connection layout are needed to confirm the required version.

Product matching reference

Compare the photo, drawing, and measurable details first

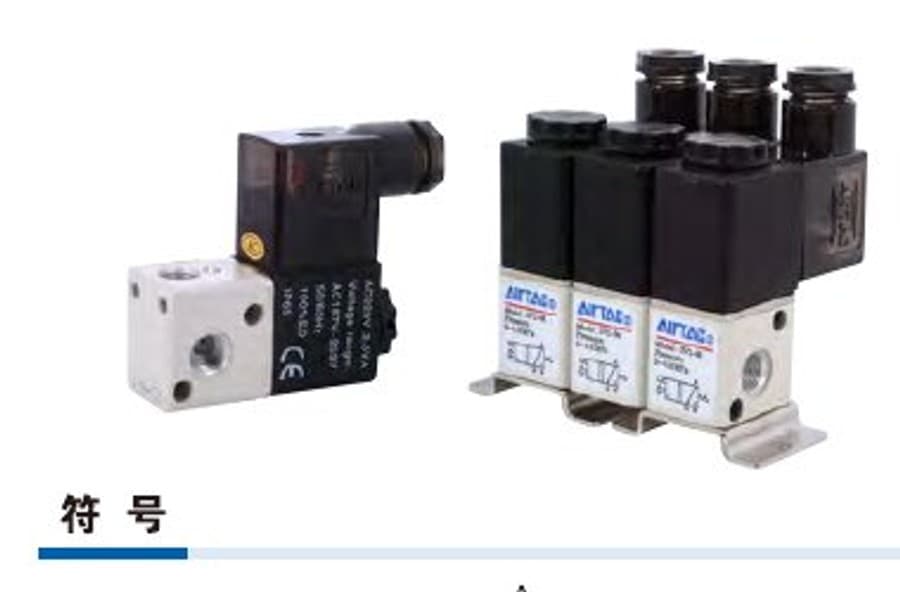

Identify from the photo
3V1 solenoid valve product reference
  • Complete 3V1 model code or valve and coil label
  • Normally closed 3/2-way function and required circuit behaviour
  • Required coil voltage and cable or connector arrangement
  • Port specification, installed flow direction and whether several valves are grouped

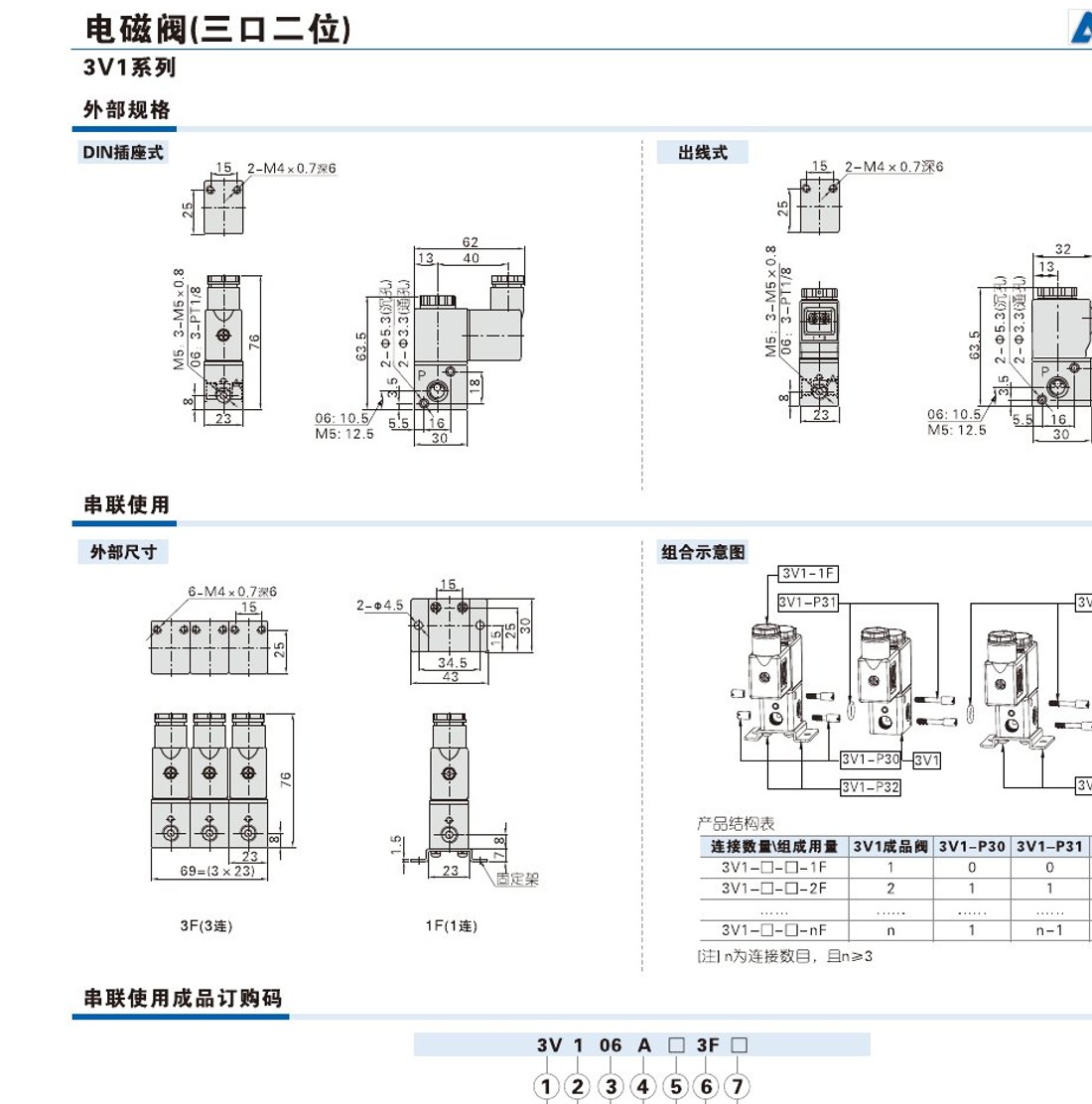

Drawing reference
3V1 solenoid valve ordering code referenceOpen drawing3V1 valve installation drawing referenceOpen drawing
  • Confirm the 3V1 direct-acting normally closed 3/2 function, M5 or 1/8 inch port, voltage, thread and connector/lead arrangement
  • Compare the installed valve body, port face and valve-group mounting arrangement with the 3V1 drawing
Key details for matching

Model patterns

  • 3V1-M5
  • 3V1-06
  • 3V1-06-A
  • 3V1-06-B-G

Reference details

  • Series type: Direct-acting solenoid valve
  • Published function: Normally closed 3/2-way
  • Published installation option: Several valves can be installed integrally
  • Published electrical option: Several standard voltage grades
  • Published port sizes: M5 or 1/8 inch
  • Published pressure range: 0–0.8 MPa (0–114 psi)
  • Reference pages: PDF pages 1–2

Matching Questions

What should I include in a 3V1 RFQ?

Send the full code where available, plus coil voltage, port specification, the installed flow direction and any connector or valve-group...

Can a normally closed valve be replaced without checking the circuit?

No. The normal state is a functional requirement. Confirm the circuit behaviour and connection layout before selecting a sourcing or replacement...

3V1

Include this series in a project RFQ

3V1 Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quoteSend a parts list or BOM
