3V100 is a three-port, two-position solenoid-valve series in 110 and 120 configurations. Match the complete code, port, normal state, control method, voltage, pilot type and installed...
Ordering code matching

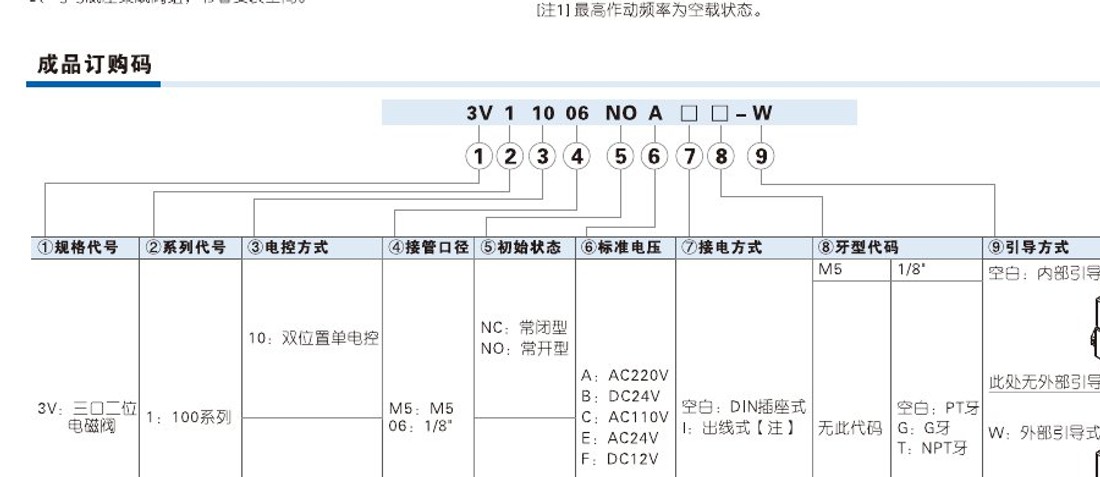

Code format
3V1 [10/20] [M5/06] [NC/NO] [A-F] [DIN/lead] [PT/G/NPT] [W]Published 3V100 code layout3V110-M53V110-06-NO-A3V120-06-NC-B-W| ①Valve/control | ②Port and state | ③Voltage | ④Pilot/thread |
|---|---|---|---|
| 3V110 single solenoid; 3V120 double solenoid. | M5 or 1/8 inch; NC or NO where applicable. | A AC220V; B DC24V; C AC110V; D AC24V; E AC12V; F DC12V. | Blank internal pilot; W external pilot; blank PT, G or T thread. |
If the label is incomplete, send the readable parts together with a photo.
3V 1 10 06 NO A -W3VValve family
Three-port, two-position solenoid valve.
1Series
100 series.
10 / 20Control
10 single solenoid; 20 double solenoid.
M5 / 06Port
M5 or 1/8 inch published port.
NO / NCNormal state
Match the installed state.
A–FVoltage
Published AC/DC voltage code.
WPilot type
W identifies external pilot; blank is internal pilot.

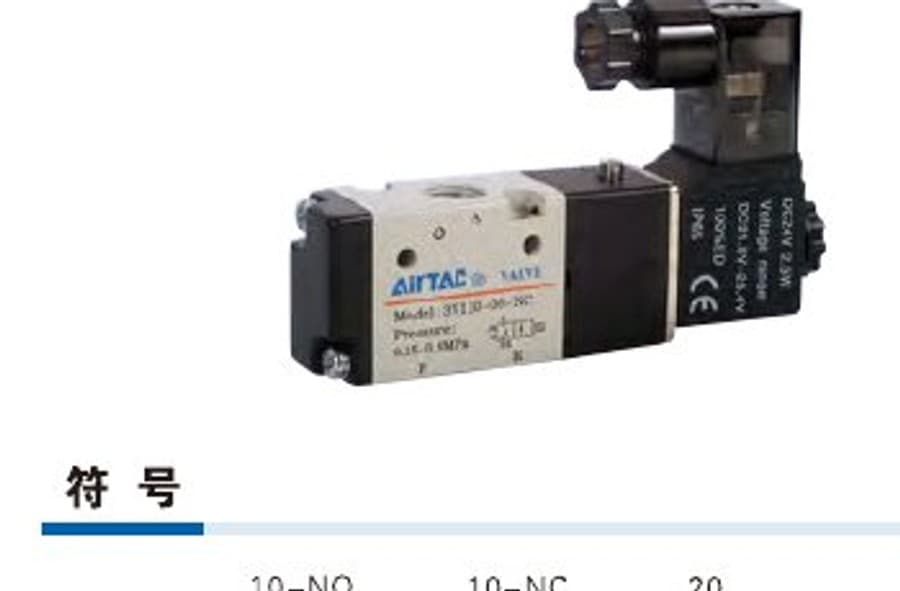

3V100 is a three-port, two-position valve family. 110 is single-solenoid and 120 is double-solenoid; port size, normal state, voltage, output form, thread and pilot method remain selection fields on this one canonical page.
Product matching reference
3V110 is the published single-solenoid configuration and 3V120 is the double-solenoid configuration. Confirm the normal state, port, voltage and...
