This reference covers published FB explosion-proof configurations for selected 3V, 4V and 4M solenoid valves. Send the full valve code, voltage, port size and installation arrangement for...

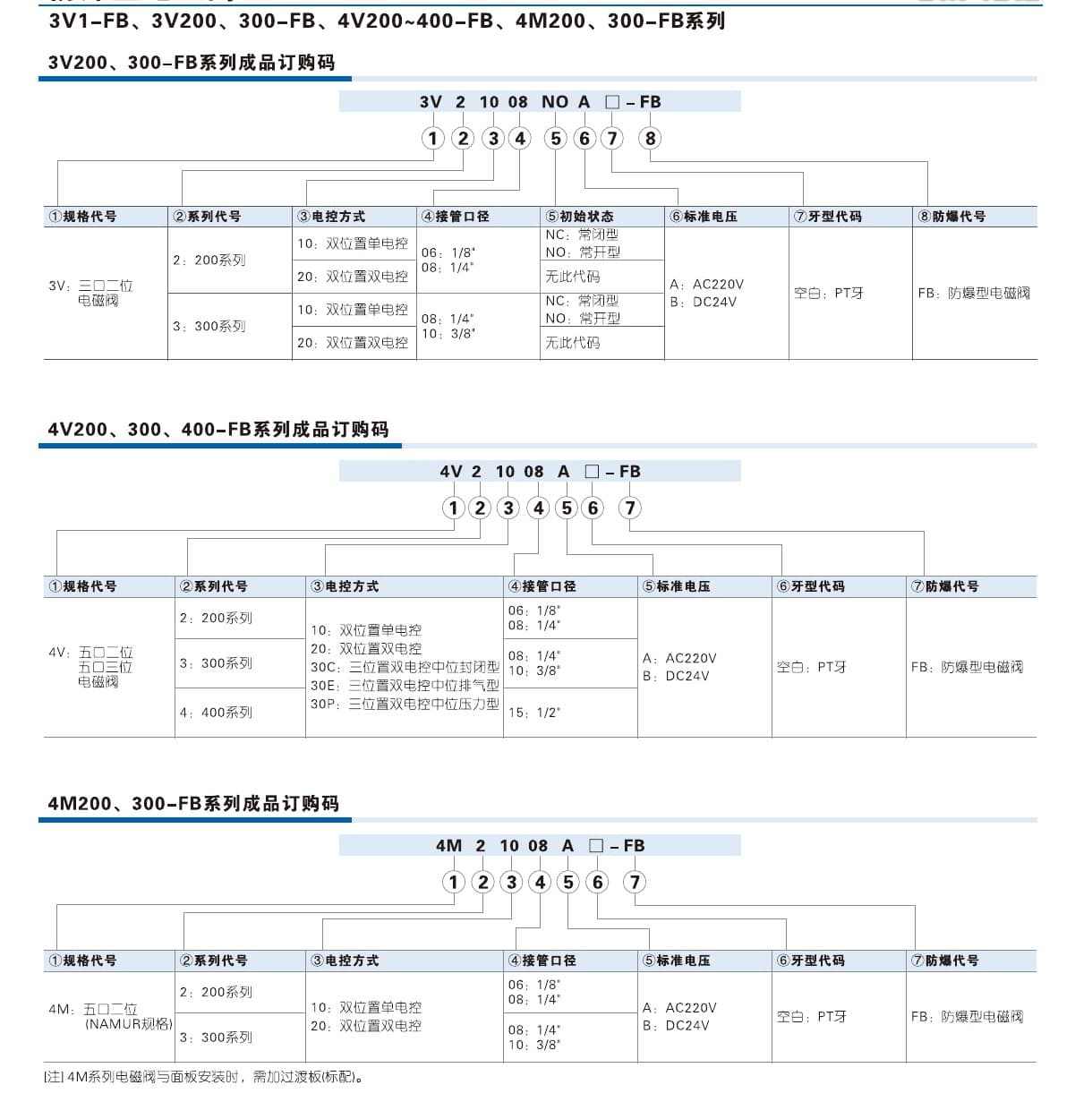

Ordering code matching
Code format
3V / 4V / 4M [series] [control] [port] [state if applicable] [A/B] [PT/G] -FBPublished FB valve code layoutCFB092 [A/B]Published explosion-proof coil code3V 2 10 08 NO A -FB4V 2 10 08 A -FB4M 2 10 08 A -FBCFB092ACFB092B| ①Valve family | ②Series and control | ③Port and state | ④Voltage | ⑤FB suffix |
|---|---|---|---|---|
| 3V two-port; 4V five-port; 4M NAMUR. | Use the published 200/300/400 and control code for that family. | Match port size and NC/NO state where the 3V code uses it. | A AC220V; B DC24V. Coil code: CFB092A or CFB092B. | Explosion-proof solenoid-valve configuration. |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
3V-FB
3V two-port explosion-proof configuration
4V-FB
4V five-port explosion-proof configuration
4M-FB
4M NAMUR explosion-proof configuration
If the label is incomplete, send the readable parts together with a photo.
4V 2 10 08 A -FB3V / 4V / 4MValve family
Select the published valve family before matching the FB configuration.
2 / 3 / 4Series
Published 200, 300, or 400 series positions depend on the valve family.
10 / 20 / 30C / 30E / 30PControl arrangement
Use the published single- or double-solenoid and three-position code for the valve family.
06 / 08 / 10 / 15Port size
Match the published port-size code for the selected family and series.
A / BRated voltage
A: AC220V; B: DC24V.
FBExplosion-proof configuration
Published FB explosion-proof solenoid-valve suffix.

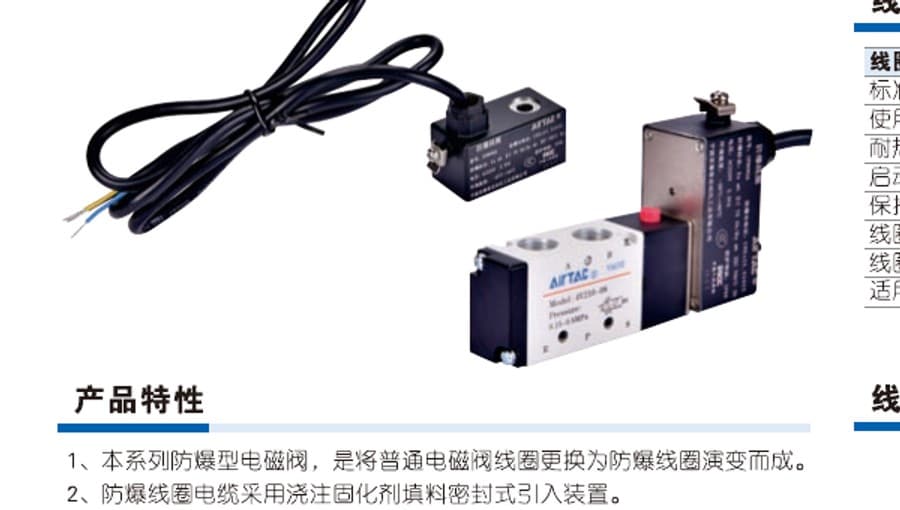

FB identifies the published explosion-proof solenoid-valve configuration for selected 3V, 4V and 4M valve families. It is a standalone-valve arrangement, so match the valve family and its normal base model before treating the FB coil and cable as a replacement solution.
Product matching reference

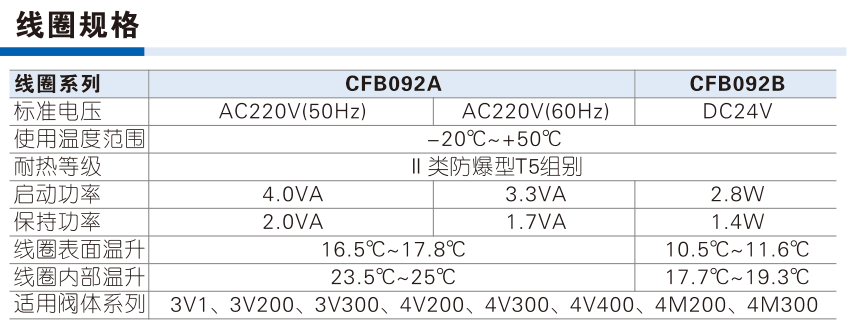

No. CFB092A and CFB092B identify the published coil voltage, but the valve family, series, control arrangement, ports, thread and standalone...
