AirTAC 4V / 5V Valve Manifold Bases and Panel Components

This reference covers 100M, 200M, 300M and 400M manifold bases and panel components for published 4V and 5V valve families. Match the valve family, station count, thread and installed...

Request type

AirTAC originalModel matchingChina-source alternative

Start RFQ Send photo / label

4V+5VSolenoid Valves

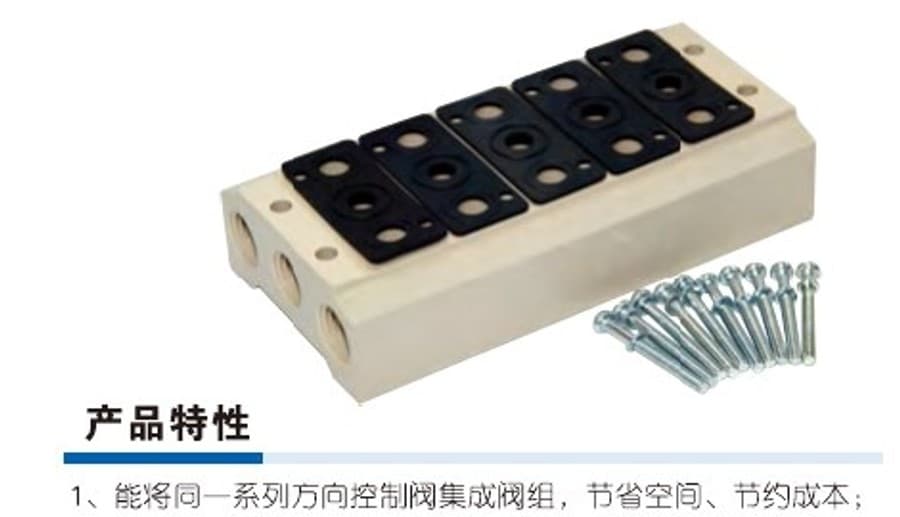

4V and 5V valve manifold base product reference — Verified product-family reference image.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

200M 8F G

100M / 200M / 300M / 400MBase family

Matches the associated 4V or 5V valve family.

8FStation count

Published connected station count.

GThread

Blank PT; G G thread; T NPT thread.

About 4V+5V

100M, 200M, 300M and 400M are manifold-base families for their matching 4V and 5V valve series. They are not valve bodies. Select the existing valve family, station count, thread and panel/base arrangement as one assembly.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo

Existing 4V or 5V valve family and readable base label
100M, 200M, 300M, or 400M base family
Station count: 100M/200M up to 16, 300M up to 12, 400M up to 8
PT, G, or NPT thread
Base versus panel component, inlet/exhaust side and installed dimensions

Drawing reference

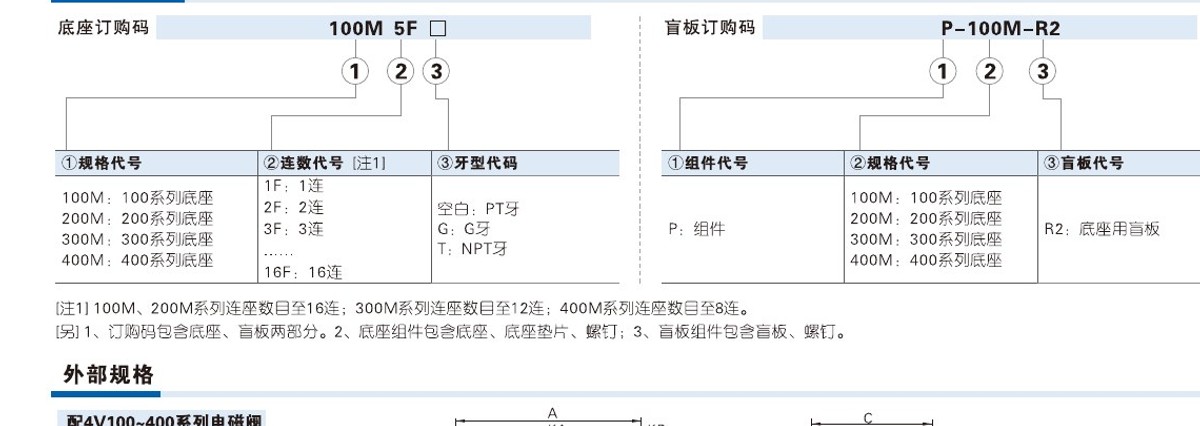

4V and 5V valve manifold base ordering code reference

Open drawing

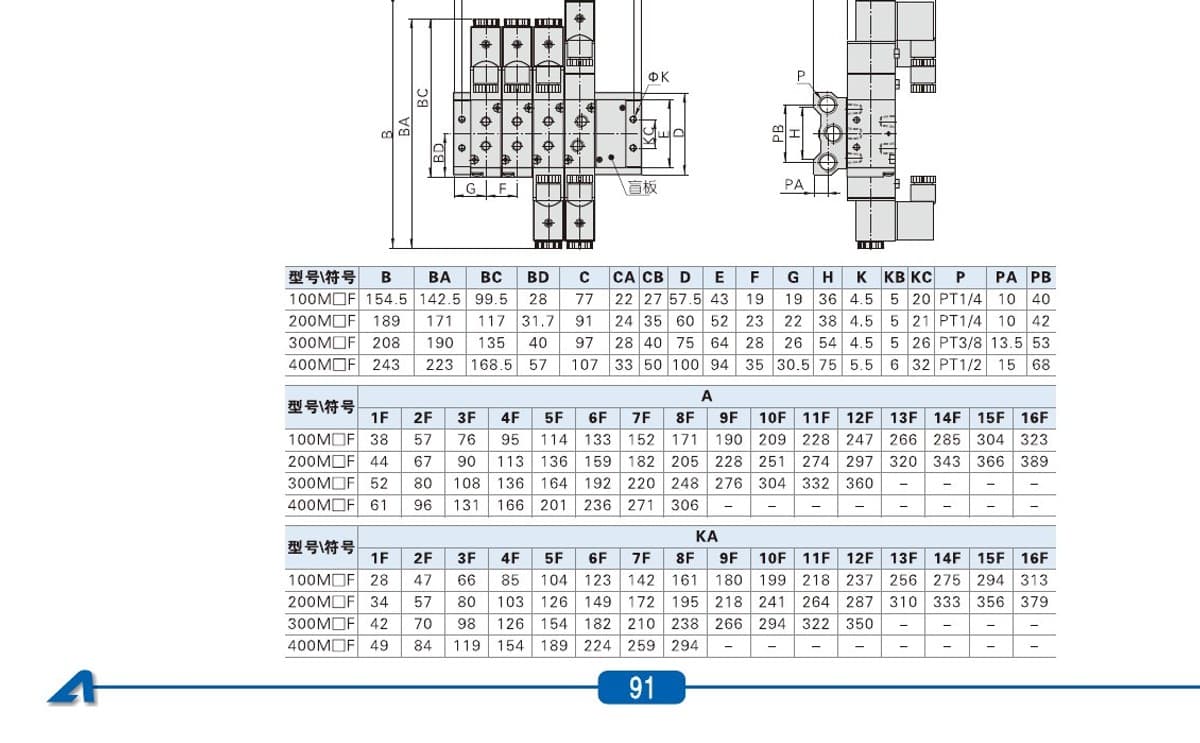

4V and 5V valve manifold base installation drawing reference

Open drawing

Confirm the installed valve family: 4V100/200/300/400 or 5V100/200/300/400
Compare station count, base or panel component, PT/G/NPT thread, inlet/exhaust direction and mounting dimensions

Key details for matching

Model patterns

100M 5F
200M 8F G
300M 12F T
400M 8F

Reference details

Compatible valve families: 4V100–400 and 5V100–400
Published station limits: 100M/200M: 16; 300M: 12; 400M: 8
Published temperature: -20 to 70 °C
Reference pages: PDF page 1

Matching Questions

Can a 100M base be used for any 4V or 5V valve?

No. Each published base family corresponds to a specific 4V or 5V valve series. Confirm the valve family, station count, thread and installed...
