Choose the AFC+BFC family first
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
AFC
A-series two-part filter-regulator
BFC
B-series two-part filter-regulator
AirTAC AFC+BFC Filter-Regulator Units
AFC and BFC are two-part filter-regulator families. Confirm size, port, drain, pressure form, gauge, filter grade, bowl and thread before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
AFC+BFCAB Series Air Preparation

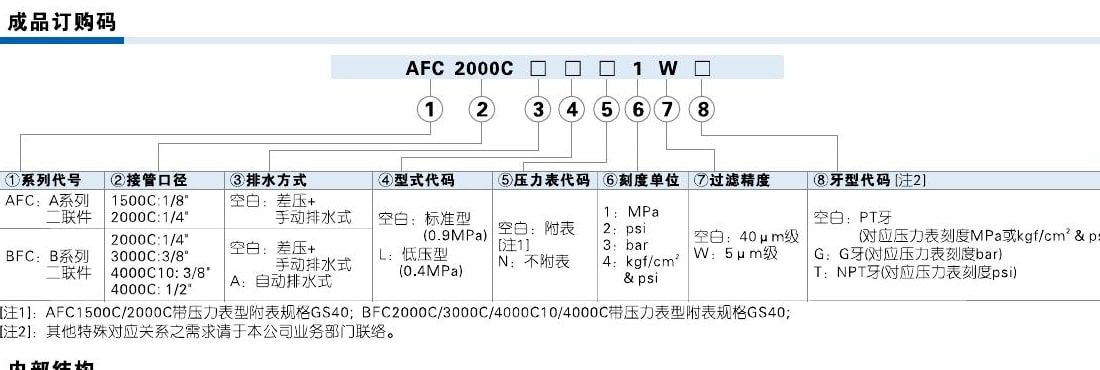

Ordering code matching
Match each code segment
Code format
AFC/BFC [size] [port] [drain] [pressure] [gauge] [scale] [filter] [thread]Published AFC/BFC code layoutAFC 2000C □ □ □ 1 W □BFC 4000C10| ①Family / size / port | ②Drain / pressure | ③Gauge / filtration |
|---|---|---|
| AFC or BFC; published 1500C–4000C sizes and PT1/8 to PT1/2 ports by size. | Blank manual drain, A automatic drain; blank standard or L low-pressure form. | Gauge, scale unit, blank 40 μm or W 5 μm, bowl and thread match the full code. |

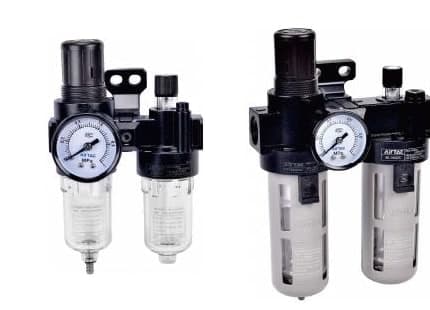

About AFC+BFC
AFC and BFC are integrated two-part filter-regulator units. AFC is the A-series form; BFC is the B-series form with the larger body range and bowl protection context. Size, port, drain, standard or low-pressure form, gauge, scale, filter grade, bowl and thread remain code-level fields on one page.
Product matching reference
Compare the photo, drawing, and measurable details first
Identify from the photo
- Complete AFC/BFC code or clear installed unit photo
- AFC or BFC family and published size
- 1500C, 2000C, 3000C or 4000C/4000C10
- Port, manual or automatic drain and standard/low-pressure form
- Gauge, 40/5 μm grade, bowl protection/material and thread

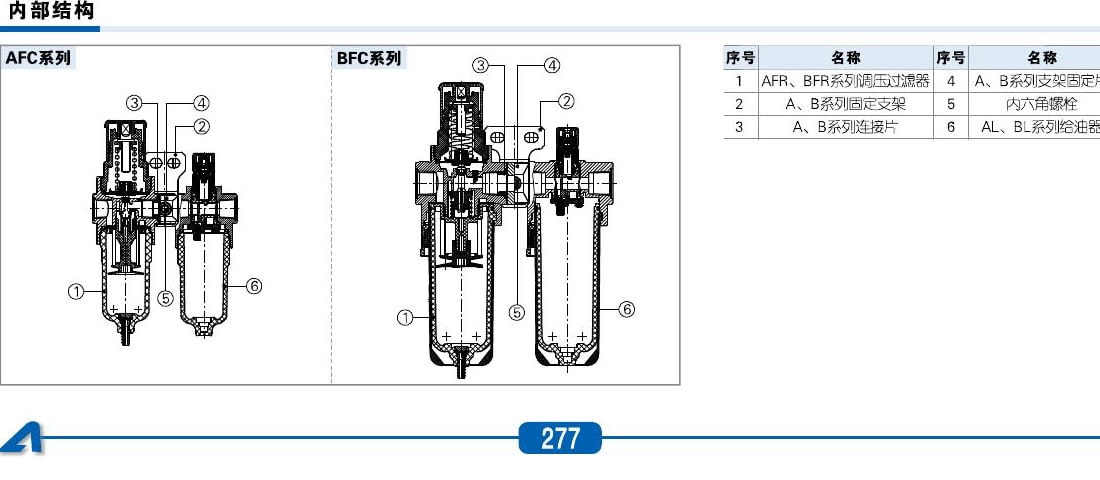

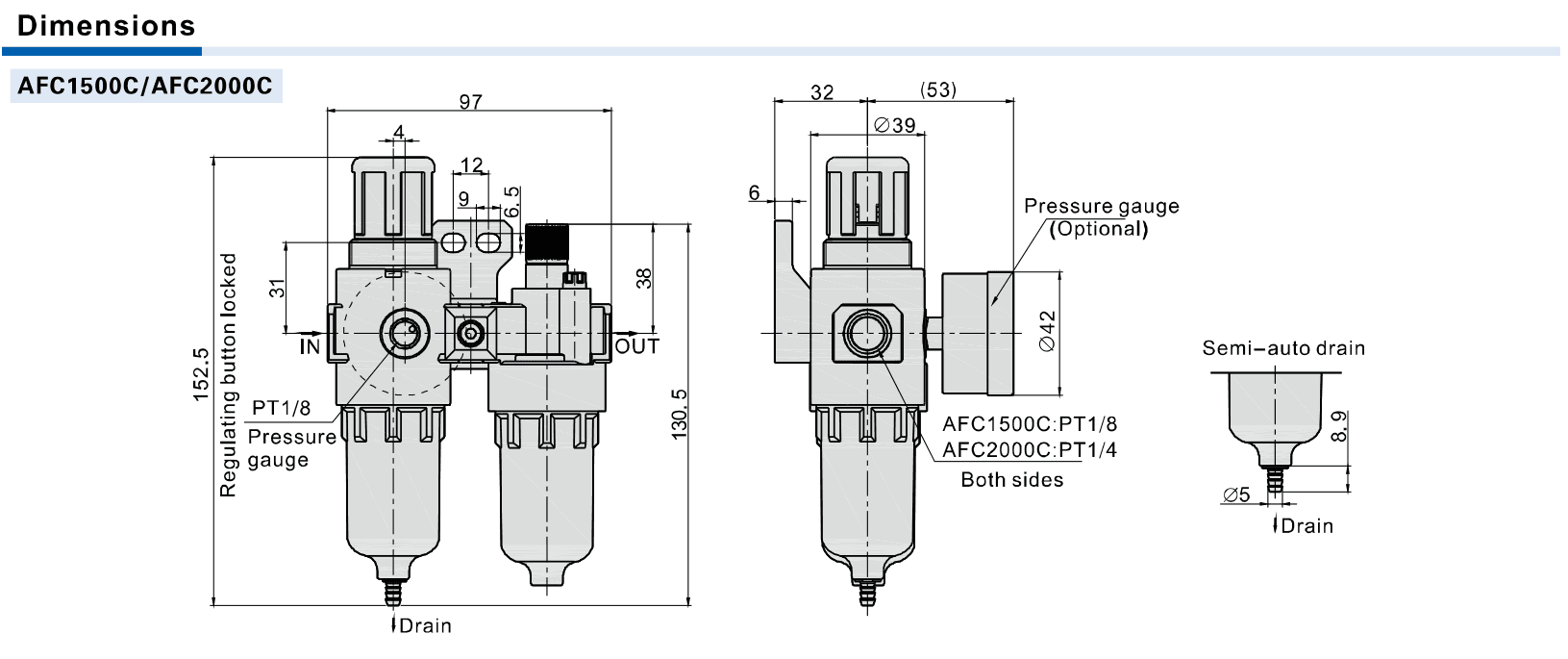

Drawing reference
- Confirm AFC or BFC two-part filter-regulator family
- Match size, port, drain, pressure form, gauge, filter grade, bowl and thread
Key details for matching
Model patterns
- AFC1500C
- AFC2000C
- BFC2000C
- BFC3000C
Reference details
- Product type: Two-part filter-regulator unit
- Published pressure range: Standard 0.15–0.9 MPa; low pressure up to 0.4 MPa
- Published maximum / proof pressure: 1.0 MPa / 1.5 MPa
- Published filter grades: 40 or 5 μm
- Reference pages: PDF pages 1–3
Matching Questions
Can AFC and BFC be matched by port size alone?
No. The A-series and B-series constructions differ, and drain, pressure form, gauge, filtration, bowl and thread also affect the match. Confirm the...
AFC+BFC
Include this series in a project RFQ
AFC+BFC Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
