Fits when
- A compact cylinder is needed where installation height is limited
- The required motion, bore, stroke, and rod-end arrangement are known
AirTAC SDA Series Compact Cylinders
The SDA Series covers compact pneumatic cylinders in SDA, SSA, STA, SDAD, SDAJ, SDAT and SDAW configurations. Use the family code first, then check bore, stroke, mounting, and sensor...
Request type
AirTAC originalModel matchingChina-source alternative
Match an SDA model code
Enter the code from the label. Spaces and ×/x formats work.
SDAUltra-Thin Cylinders
Ordering code matching
Match each code segment
Code format
SDA 20 × 30 S BDouble-acting compact cylinderSDAD 20 × 30 S BDouble-rod compact cylinderSDAJ 20 × 30-30 S BAdjustable-stroke compact cylinderSDAT 20 × 30 × 10 S BDuplex compact cylinderSDA 20 × 30 S B [PT]SDAD 20 × 30 S B [PT]SDAJ 20 × 30-30 S B [PT]| ①Model | ②Bore (mm) | ③Stroke | ④Adjustable stroke | ⑤Magnet | ⑥Rod type | ⑦Thread type |
|---|---|---|---|---|---|---|
| SDA: double acting SSA: single acting, push STA: single acting, pull SDAD: double rod SDAJ: adjustable stroke | SDA / SDAD / SDAJ: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 SSA / STA: 12, 16, 20, 25, 32, 40, 50, 63 | Required travel in mm. Match against the stroke table or installed cylinder. | Blank for SDA / SSA / STA / SDAD. SDAJ: 10, 20, 30, 40, 50, 75, 100 mm. | Blank: without magnet S: with magnet | Blank: female thread B: male thread | Blank: PT |
Avoid a wrong match
- SDA, SSA, and STA can look similar but use different motion types
- Compare bore and stroke with the installed cylinder, not the body shape alone
- Check the sensor groove and rod-end thread where they are needed
Choose the SDA family first
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
SDA
AirTAC SDA Double-Acting Compact Cylinder
View details →SSA
AirTAC SSA Single-Acting Push Compact Cylinder
View details →STA
AirTAC STA Single-Acting Pull Compact Cylinder
View details →SDAD
AirTAC SDAD Double-Rod Compact Cylinder
View details →SDAJ
AirTAC SDAJ Adjustable-Stroke Compact Cylinder
View details →Read the model code
If the label is incomplete, send the readable parts together with a photo.
SDA 20 × 30 S B [PT]SDAFamily
Double-acting compact cylinder. Use a different family code where the motion differs.
20Bore
Cylinder bore in mm. Published SDA-family bores run from 12 to 100 mm, depending on variant.
30Stroke
Required travel in mm. Compare it with the installed cylinder or drawing.
SMagnet
S denotes a magnetic option; check the sensor requirement and groove arrangement.
BRod end
B denotes a male thread; blank denotes a female thread in the published code guide.
[PT]Thread standard
The published code guide indicates PT when this position is left blank. Compare the installed thread for replacement work.
About SDA
Compact cylinders for limited installation space. SDA, SSA, STA, SDAD, SDAJ, SDAT and SDAW belong to one family but are not interchangeable; the family code identifies the configuration.
Product matching reference
Compare the photo, drawing, and measurable details first

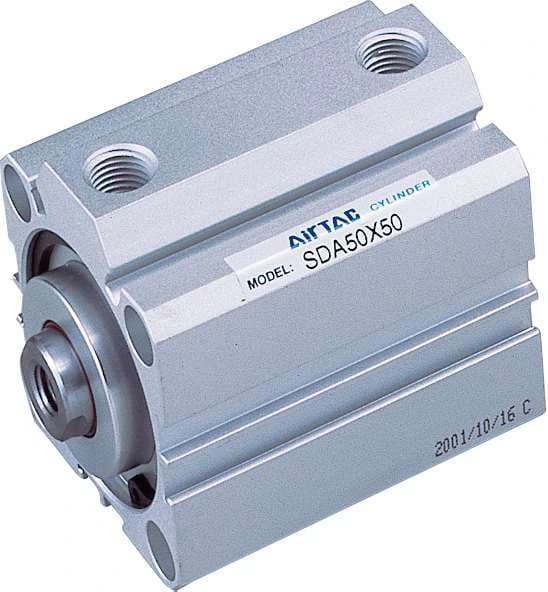

Identify from the photo
- Full SDA-family model code or label
- Bore and required stroke
- Rod-end, mounting and installed clearance
- Whether a magnetic switch or sensor groove is required

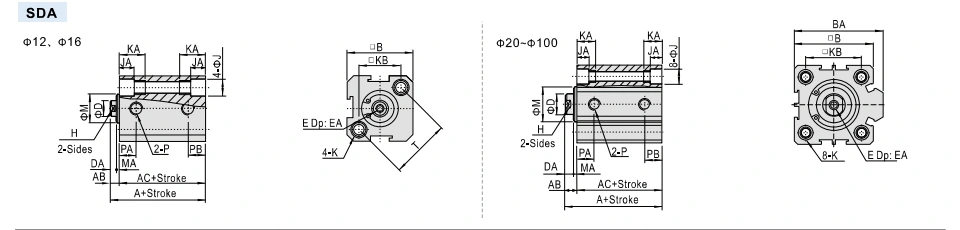

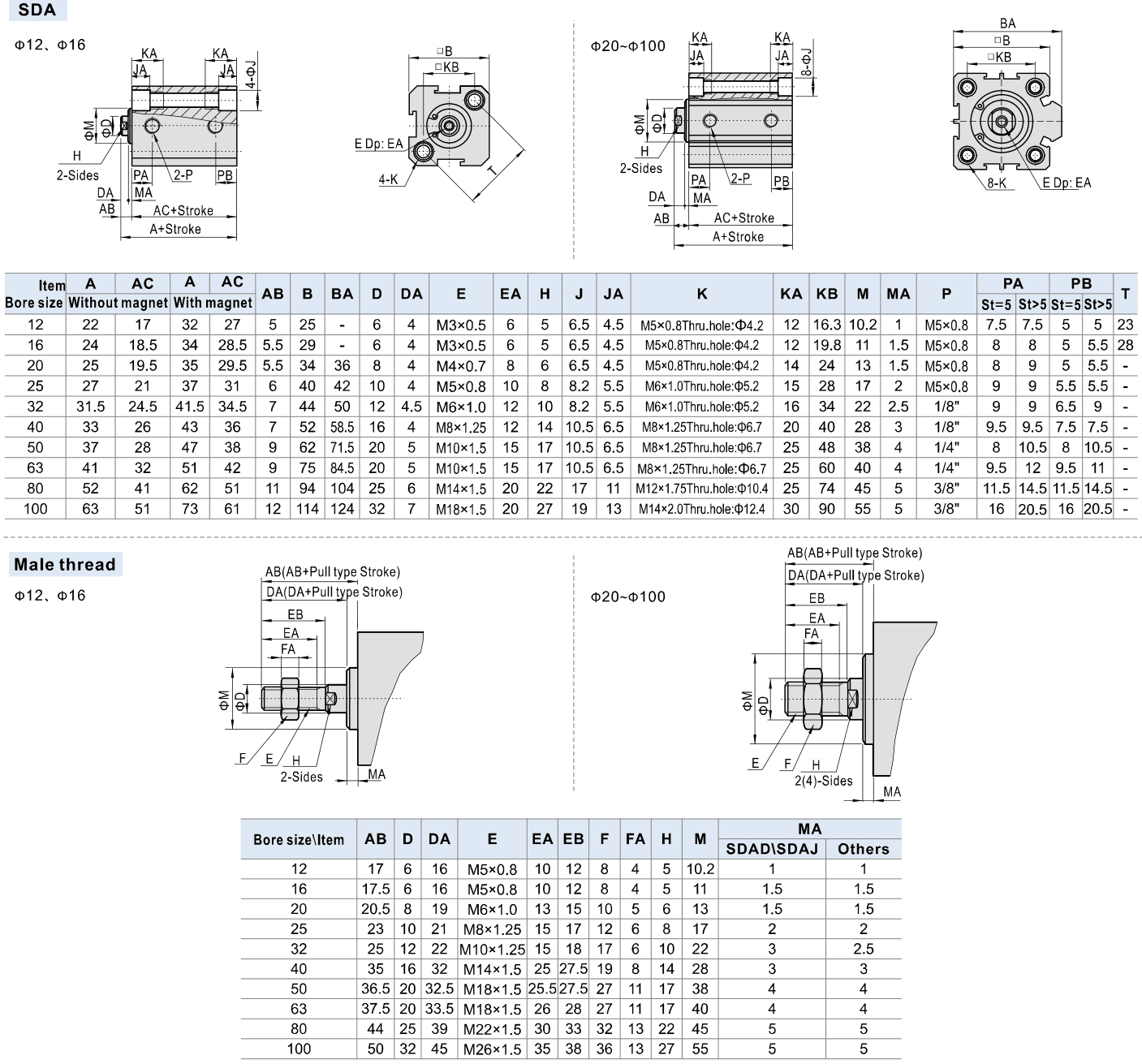

Drawing reference
- Use the drawing for the matching SDA-family configuration
- Compare bore, stroke, mounting holes, rod-end thread, and installed clearance
- For replacement work, include the full drawing with the RFQ when fit is critical
Key details for matching
Model patterns
- SDA
- SSA
- STA
- SDAD
Reference details
- Series type: Compact pneumatic cylinder
- Published bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
- Variant families: Double acting, single acting and multi-position options
Matching Questions
Which SDA details should be included in an RFQ?
Send the full code where available, plus bore, stroke, mounting or rod-end details and the required sensor arrangement. A photo or drawing helps...
Does this page cover only the SDA standard cylinder?
No. This is the SDA Series family page. SDA is the standard double-acting variant; SSA, STA, SDAD, SDAJ, SDAT and SDAW have different motion or...
SDA
Include this series in a project RFQ
SDA Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
