ZL112
- Nozzle:
- 1.2 mm
- Suction flow:
- 100 L/min reference
- Ultimate vacuum:
- −84 kPa reference
PneuPart · SERIES ZL

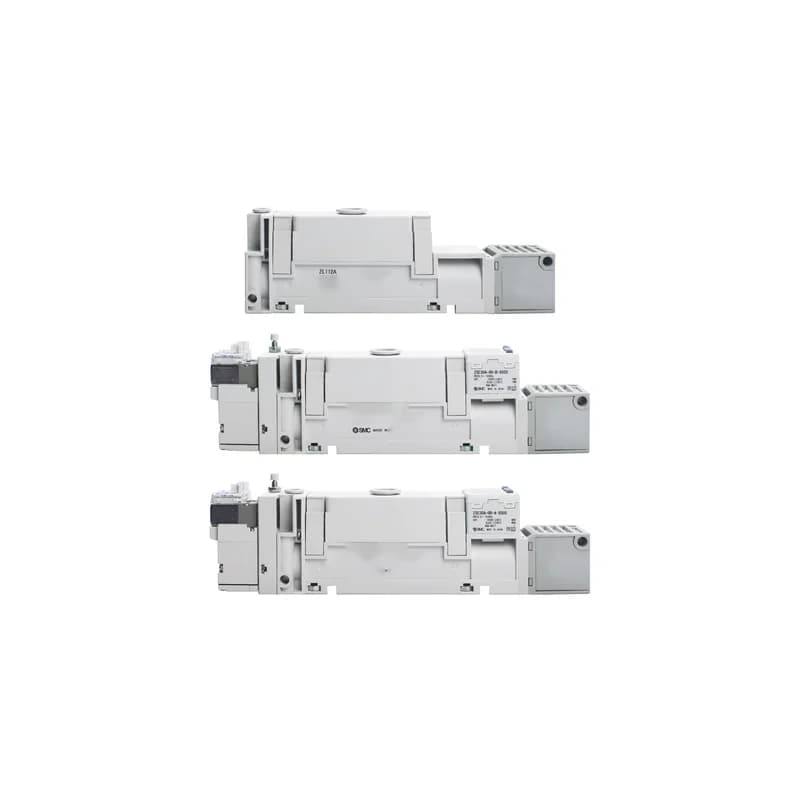

ZL multi-stage vacuum generators
Compare the 112 and 212 reference members by nozzle count, supply pressure, target vacuum and circuit requirements. Do not multiply one member's data to predict an unlisted version.
Two reference members, one family
ZL212
- Nozzle:
- 1.2 mm × 2
- Suction flow:
- 200 L/min reference
- Ultimate vacuum:
- −84 kPa reference
Reference values use the reviewed catalogue basis. The 112 page lists K1 supply + blow-off and K2 supply-only; the 212 source does not establish the same valve matrix.
Confirm your model or requirements
These fields describe a technical request and do not generate a validated SKU. Thread, valve, switch and coil combinations require the selected version's matrix.
Request model & availability confirmationPerformance reference
- Reference pages list 2–5 bar operating pressure, 7 bar maximum and 5–50 °C for the reviewed versions.
- Operating suction flow (approx. 62–63 L/min ANR at standard supply) is verified against your target pressure point upon quotation.
- Valve response ≤25 ms and 5 Hz belong to the valve reference, not a complete circuit evacuation time or machine cycle approval.
Installation & matching
Request the drawing for the selected member, ports and optional valve or switch. Standard, P exhaust and switch assemblies use different envelopes; the 112 and 212 drawings are not interchangeable.
PneuPart · Technical documents
Drawing and configuration
The form schematic shows the selection features. Dimensional, port and installation drawings are supplied against the confirmed delivery version.
Shape and connection
ShownShown on this page; not to scale.
Dimensional drawing
By enquiryRequest for the confirmed size and port variant.
Selection / ordering drawing
By enquiryConfirm code, options and supply scope together.
Send the model code, a photo or existing mounting dimensions together; a complete model is not required to start confirmation.
Request drawing
