SC standard double acting tie-rod cylinders, bores 32/40/50/63/80/100/125/160/200/250 mm. Match complete code, published stroke, mount, magnet, seal and PT/G thread; send model, quantity and destination for quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Choose a type; send a model or photo if unsure.
SC
standard double acting
SCD
double rod
View details →SCJ
adjustable stroke
View details →SCT
multi-position, two strokes
View details →Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
Match an SC-family model code

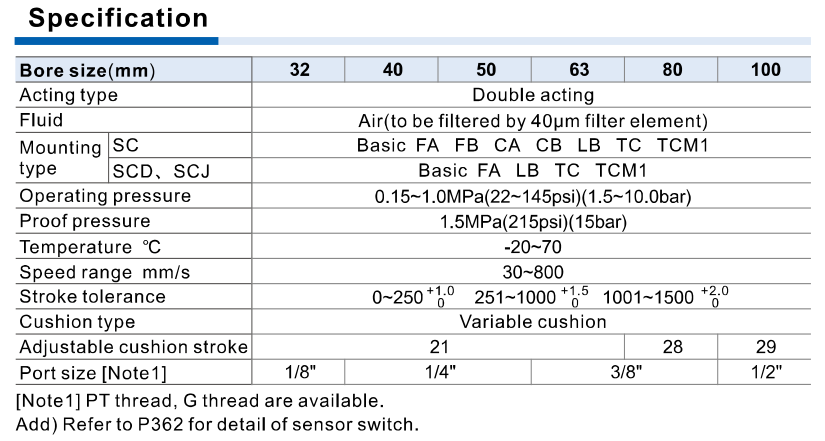

SC official sc specifications; select exact labelled construction and bore
Helpful for Model Matching:
| Identity / motion | SC standard double acting tie-rod cylinders, bores 32/40/50/63/80/100/125/160/200/250 mm. Match complete code, published stroke, mount, magnet, seal and PT/G thread; send model, quantity and destination for quotation. |
| Pressure / proof / temperature | 0.15–1.0 MPa working; 1.5 MPa proof is not working pressure. Air filtered 40 μm; standard −20 to +70°C. High-temperature seal option feature says 0–150°C; it is not the standard temperature rating and actual application needs confirmation. |
| Speed / cushion / tolerance | 32–100: 30–800 mm/s; 125–250: 30–500 mm/s. Variable/adjustable air cushion. Stroke 0–250: +1.0/0, 251–1000: +1.5/0, 1001–1500: +2.0/0 mm. Exact load/speed and cushion selection require confirmation. |
| Ports / magnet / seal | 32: 1/8; 40/50: 1/4; 63/80: 3/8; 100/125: 1/2; 160/200: 3/4; 250: 1. Blank PT, G: G; no NPT/T published. Blank without magnet, S with magnet.32–100 seal blank TPU, H Viton, N NBR; 125–250 blank NBR, H Viton (no explicit N option in big-bore ordering). CMSG/DMSG/EMSG listed in accessory table, not automatically included. |
| Mount options / accessories | SC blank/LB/FA/FB/CA/CB/TC; SCD/SCJ blank/LB/FA/TC. SCT blank/LB/FA/FB/CA/CB only: ordering/accessory applicability does not authorize TC/TCM1. TC on applicable families is used with TCM1 and must be ordered with cylinder; installation position cannot be moved arbitrarily. F-SC mount codes are accessories, not complete cylinders. |
| Discrete strokes / custom boundary | Listed discrete strokes only, not every value in the max range. SC/SCD/SCJ32 max listed500; 40/50/63 listed1000; 80/100 listed1000.32–100 ordering note explicitly makes stroke≥1600 non-standard (separate from listed160mm).125/160 listed1000; 200/250 listed1000. Consult for nonstandard strokes; max2000 is not a standard list. |
| Functional extra fields | SCD has two rods and own mounting envelope. SCJ needs adjustment 10/20/30/40/50/75/100 mm and own rear adjustment mechanism; selected adjustment should not exceed stroke without confirmation. SCT two strokes each listed25/50/75/80/100/125/150/160/175/200/250/300/350/400/450/500; 32–63 maximum800 custom; all bores listed to500; maximum800 is not the listed standard table, and note≥800 is nonstandard. Stage order and required stop sequence need confirmation. |
| Standards / fit | Source says SC differs from ISO 15552 and is shorter at same bore. Big-bore feature literally prints ISO 6430; preserve as a source statement requiring independent clarification, not a guaranteed ISO interchangeability claim and not silently corrected to another ISO. Confirm actual installed hole pattern, envelope, rod thread and stroke. |
| Thrust / materials / installation | Source pressure-area push/pull table is reference thrust, not usable offset payload or self-locking guarantee. Side load excluded by installation notes; cushion-setting starts at minimum before commissioning. Material list based on certain bore; exact requested construction/material requires confirmation. Magnetic/non-magnetic dimensions are the same per dimensional notes. |
Ordering code matching
Code format
SC[bore]×[stroke][S][mount][seal][G]Bore- and family-specific ordering rulesSC50×100SLBH-GSC250×1000S| ①Family / bore / stroke | ②Magnet / mount / seal / thread |
|---|---|
| SC standard double acting tie-rod cylinders, bores 32/40/50/63/80/100/125/160/200/250 mm. Match complete code, published stroke, mount, magnet, seal and PT/G thread; send model, quantity and destination for quotation. SCD has two rods and own mounting envelope. SCJ needs adjustment 10/20/30/40/50/75/100 mm and own rear adjustment mechanism; selected adjustment should not exceed stroke without confirmation. SCT two strokes each listed25/50/75/80/100/125/150/160/175/200/250/300/350/400/450/500; 32–63 maximum800 custom; all bores listed to500; maximum800 is not the listed standard table, and note≥800 is nonstandard. Stage order and required stop sequence need confirmation. | 32: 1/8; 40/50: 1/4; 63/80: 3/8; 100/125: 1/2; 160/200: 3/4; 250: 1. Blank PT, G: G; no NPT/T published. Blank without magnet, S with magnet.32–100 seal blank TPU, H Viton, N NBR; 125–250 blank NBR, H Viton (no explicit N option in big-bore ordering). CMSG/DMSG/EMSG listed in accessory table, not automatically included. SC blank/LB/FA/FB/CA/CB/TC; SCD/SCJ blank/LB/FA/TC. SCT blank/LB/FA/FB/CA/CB only: ordering/accessory applicability does not authorize TC/TCM1. TC on applicable families is used with TCM1 and must be ordered with cylinder; installation position cannot be moved arbitrarily. F-SC mount codes are accessories, not complete cylinders. |
If the label is incomplete, send the readable parts together with a photo.
SC50×100SLBH-G①Family / bore / stroke
SC standard double acting tie-rod cylinders, bores 32/40/50/63/80/100/125/160/200/250 mm. Match complete code, published stroke, mount, magnet, seal and PT/G thread; send model, quantity and destination for quotation. SCD has two rods and own mounting envelope. SCJ needs adjustment 10/20/30/40/50/75/100 mm and own rear adjustment mechanism; selected adjustment should not exceed stroke without confirmation. SCT two strokes each listed25/50/75/80/100/125/150/160/175/200/250/300/350/400/450/500; 32–63 maximum800 custom; all bores listed to500; maximum800 is not the listed standard table, and note≥800 is nonstandard. Stage order and required stop sequence need confirmation.
②Magnet / mount / seal / thread
32: 1/8; 40/50: 1/4; 63/80: 3/8; 100/125: 1/2; 160/200: 3/4; 250: 1. Blank PT, G: G; no NPT/T published. Blank without magnet, S with magnet.32–100 seal blank TPU, H Viton, N NBR; 125–250 blank NBR, H Viton (no explicit N option in big-bore ordering). CMSG/DMSG/EMSG listed in accessory table, not automatically included. SC blank/LB/FA/FB/CA/CB/TC; SCD/SCJ blank/LB/FA/TC. SCT blank/LB/FA/FB/CA/CB only: ordering/accessory applicability does not authorize TC/TCM1. TC on applicable families is used with TCM1 and must be ordered with cylinder; installation position cannot be moved arbitrarily. F-SC mount codes are accessories, not complete cylinders.
SC standard double acting tie-rod cylinders, bores 32/40/50/63/80/100/125/160/200/250 mm. Match complete code, published stroke, mount, magnet, seal and PT/G thread; send model, quantity and destination for quotation.
Heavy-duty industrial tie-rod pneumatic cylinder engineered for high-thrust factory automation lines, transfer conveyors, stamping press feeding mechanisms, and heavy pallet lifters. Operates across 0.1 to 1.0 MPa with dual-end adjustable pneumatic cushioning to suppress end-of-stroke impact shock.
Engineering Notice: Referenced manufacturer series and part numbers are provided for interchange identification and replacement compatibility purposes.
Upload Nameplate / BOMSCD has two rods and own mounting envelope. SCJ needs adjustment 10/20/30/40/50/75/100 mm and own rear adjustment mechanism; selected adjustment should not exceed stroke without confirmation. SCT two strokes each listed25/50/75/80/100/125/150/160/175/200/250/300/350/400/450/500; 32–63 maximum800 custom; all bores listed to500; maximum800 is not the listed standard table, and note≥800 is nonstandard. Stage order and required stop sequence need confirmation. Match exact drawings and motion before replacement.
