AirTAC ACQ Series Ultra-Thin Cylinders

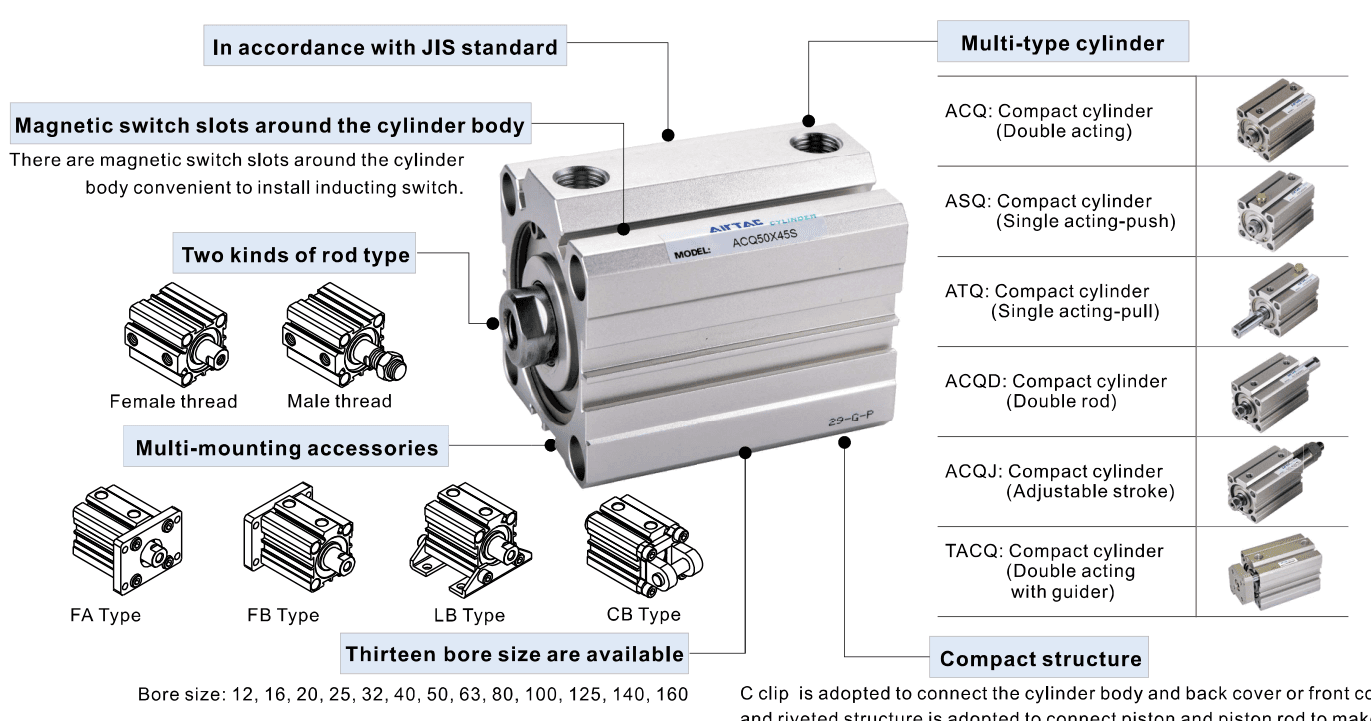

ACQ JIS compact cylinder family, printed 108 — Series product image

Request a Quote WhatsApp Send a Photo — We’ll Help Identify It

Source ACQ JIS compact cylinders: ACQ double acting, ASQ push, ATQ pull, ACQD double rod,...

Official reference

Based on manufacturer documentation

Model support

For model confirmation

Parts lists

Code, photo, or BOM

Availability / lead time

By model and quantity

Sourcing route & inquiry details

Source ACQ JIS compact cylinders: ACQ double acting, ASQ push, ATQ pull, ACQD double rod, ACQJ adjustable stroke, and TACQ guided. Send a known model directly for a quote; a label or photo is enough to start if the code is incomplete.

Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

Request type

AirTAC originalModel matchingChina-source alternative

Find your ACQ type

Choose a type; send a model or photo if unsure.

ACQ

Double-acting ultra-thin cylinder

View details →

ASQ

Single-acting, push type

View details →

ATQ

Single-acting, pull type

View details →

ACQD

Double-rod ultra-thin cylinder

View details →

ACQJ

Adjustable-stroke ultra-thin cylinder

View details →

TACQ

Double acting with double guide rods

View details →

Request a Quote Send a Photo — We’ll Help Identify It →

Send the model, quantity and destination. For multiple items, attach a parts list or BOM.

Match an ACQ model code

Enter the code from the label. Spaces and ×/x formats work. TACQ is included.

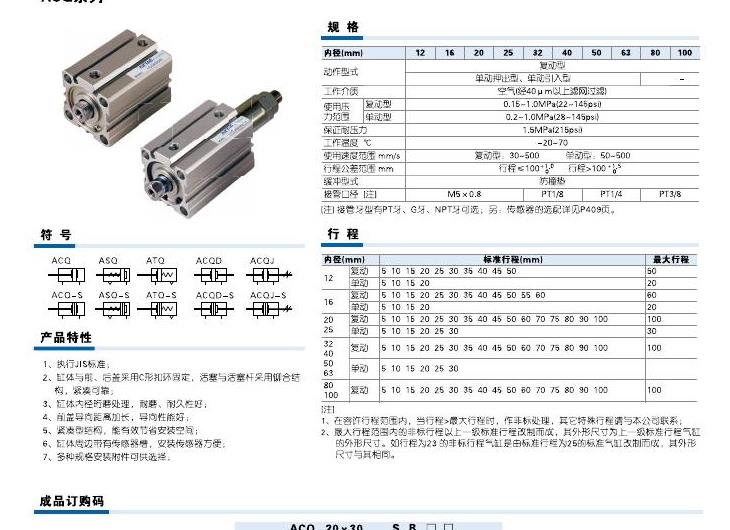

Drawings & dimensions

Installation Drawings & Technical Specifications

Compare installed dimensions

Full View

Technical reference

Click to open full drawing ↗

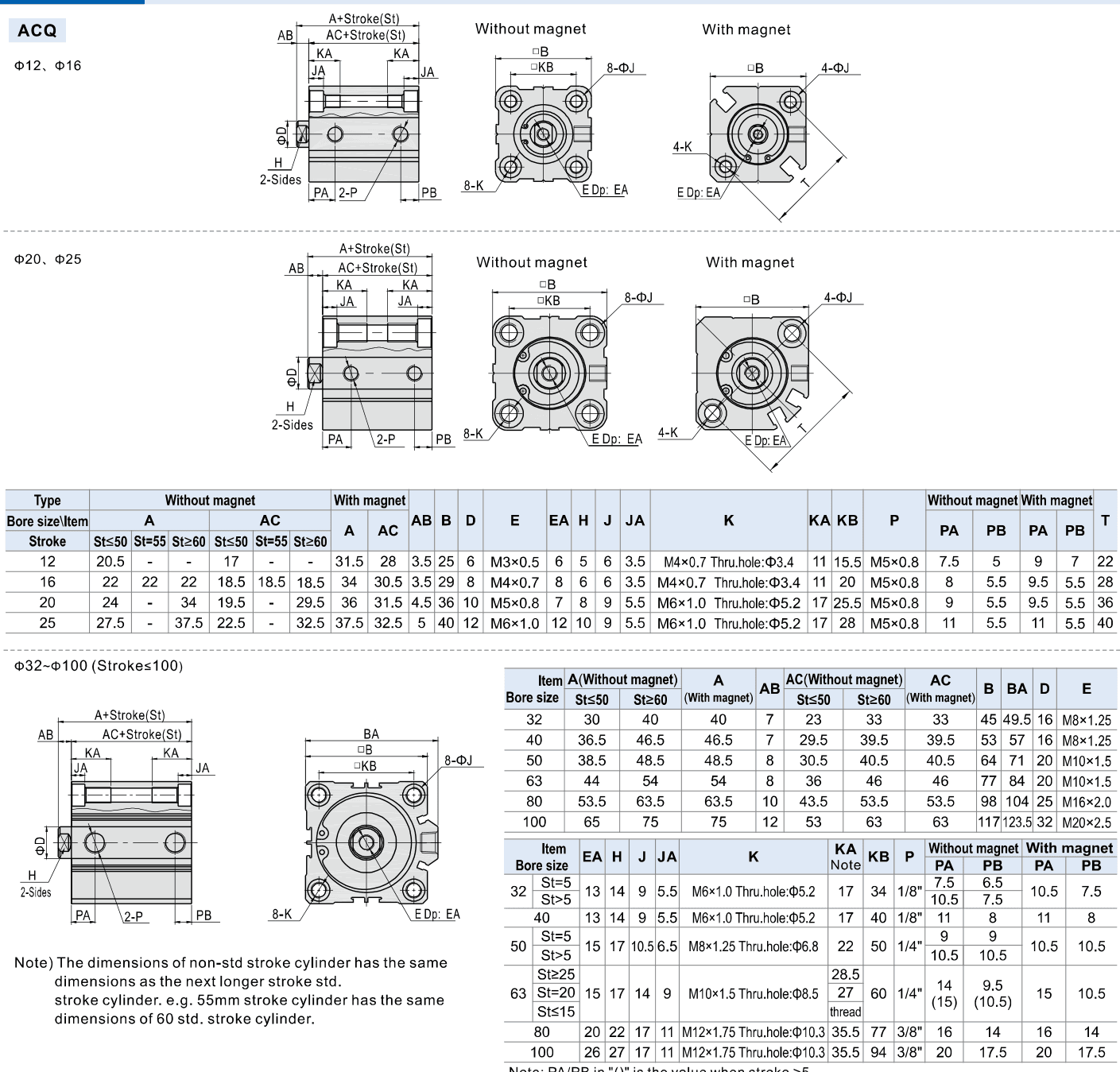

ACQ standard dimensions, printed 110

Helpful for Model Matching:

Full ACQ-family model code or cylinder label
Required motion, bore, and stroke
Mounting, port, rod-end, and installed clearance
Magnet option and sensor requirement where applicable

Choose the matching model and standard, big-bore, longer-stroke or guided chapter
Known model: request a quote directly; incomplete label: send a photo

Catalogue Technical Specifications

AirTAC reference data

Published design	JIS compact cylinder (catalogue statement)
Bores	ACQ/ACQD/ACQJ: 12–100 + 125/140/160 mm; ASQ/ATQ: 12–63; TACQ: 12–100 mm
Operating pressure	Double acting: 0.15–1.0 MPa; single acting: 0.2–1.0 MPa
Proof pressure	1.5 MPa
Temperature	−20 to +70 °C
Speed	Double acting: 30–500 mm/s; single acting: 50–500 mm/s
Medium / cushion	40 μm filtered air; bumper
Ports	Ø12–25: M5×0.8; Ø32/40: 1/8; Ø50/63: 1/4; Ø80–160: 3/8. TACQ Ø32: 1/8 at stroke ≤5, 1/4 at stroke ≥10. PT / G / NPT options.
Stroke tolerance	≤100 mm: +1.0/0 mm; >100 mm: +1.5/0 mm; TACQ: +1.0/0 mm
Catalogue	Printed 108–121; standard 109–112, big bore 113–114, longer stroke 115–116, TACQ 117–119, accessories 120–121

Common Model Codes & Configurations:Useful for an RFQ

ACQASQATQACQD

Send the model code, quantity and destination, or attach a parts list.

WhatsApp Quote BOM

Technical reference & selection notes

Ordering Codes, Fit Verification & Specifications

Specifications, installation dimensions, and ordering-code notes.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

ACQ / ASQ / ATQ / ACQD [bore] × [stroke] [S] [B] [FA/FB/CB/LB] [G/T]Ø12–100; blank thread is PT. Single acting only up to Ø63.

ACQJ [bore] × [stroke]-[adjustment] [S] [B] [FA/FB/LB] [G/T]Adjustment: 10/20/30/40/50/75/100 mm; no CB.

ACQ / ACQD / ACQJ [125/140/160] × [stroke] [-adjustment for ACQJ] S [B] [G/T]Big bores: magnet required by published guide; no mounting accessories listed.

TACQ [bore] × [stroke] [S] [G/T]Guided model: no B or mounting-code field.

ACQ 20 × 30 S B [PT]ACQD 20 × 30 S B [PT]ACQJ 20 × 30-30 S B [PT]ACQ 125 × 300 S B [PT]ACQ 50 × 150 S B [PT]TACQ 50 × 100 S [G]

①Model	②Bore (mm)	③Stroke	④Options	⑤Mounting	⑥Thread
ACQ: double acting ASQ: single acting, push ATQ: single acting, pull ACQD: double rod ACQJ: adjustable stroke TACQ: double acting with guide rods	ACQ / ACQD / ACQJ: 12–100; big bore 125/140/160 mm ASQ / ATQ: 12–63 mm TACQ: 12–100 mm	Standard: bore-dependent, 5–100 mm. Ø32–100 longer stroke: 125/150/175/200/250/300 mm. Big bores: 10/20/30/40/50/75/100/125/150/175/200/250/300 mm. Single acting: up to 20/25/30 mm. TACQ: up to 30/50/100 mm, bore-dependent. Special strokes: ask us.	ACQJ adds an adjustment value. S: magnetic option; B: male rod-end option where applicable.	Blank / FA / FB / CB / LB. ACQJ excludes CB. Big bores and TACQ have no mounting field.	Blank: PT; G: G; T: NPT. Display accepts [PT], [G], or [NPT].

Fits when

An ultra-thin cylinder is required where installation space is limited
The required motion and installed interface can be identified from a code, label, photo, or drawing

Avoid a wrong match

ACQ, ASQ, and ATQ use different motion types even when their bodies look similar
ACQD has a double-rod construction and TACQ has a guided-rod arrangement
ACQJ needs its additional adjustable-stroke value
ACQ is published as JIS; do not assume ACE ISO 21287 interchangeability.
Ø125/140/160 use S (magnet) and have no listed mounting accessories.
Longer strokes at Ø32–100 use separate drawings and change Ø50/63 ports to 1/4 inch.
ACQJ excludes CB mounting; TACQ has no B rod-end or mounting-code field.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

ACQ 20 × 30 S B [PT]

ACQFamily

Double-acting ACQ-family configuration. Use the other family codes where motion or construction differs.

20Bore

Cylinder bore in mm. Published ACQ-family bore availability depends on the configuration.

30Stroke

Required travel in mm. Compare the installed cylinder or drawing.

S / BOptions

S indicates a magnetic option; B indicates a male rod-end option in the published guide.

FA / FB / CB / LBMounting

Blank: no accessories. ACQJ excludes CB; no mounting field for big bores or TACQ.

[PT/G/NPT]Port thread

Blank: PT; G: G; T: NPT. [PT/G/NPT] is a readable display, not a literal suffix.
