AirTAC 4V200 five-port solenoid valves for 5/2 and 5/3 circuits. Match valve function/center, port and thread, coil voltage and electrical entry. Send the model code, valve/coil labels or circuit with quantity and destination for quotation and fit confirmation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Match a 4V100 / 200 solenoid valve
Choose the base by valve size. Confirm stations, thread, blank plates and supply scope; the 4V reference drawing does not establish complete 5V assembly dimensions.
View base details and request a quote →AirTAC 4V200 official English function symbols
Helpful for Model Matching:

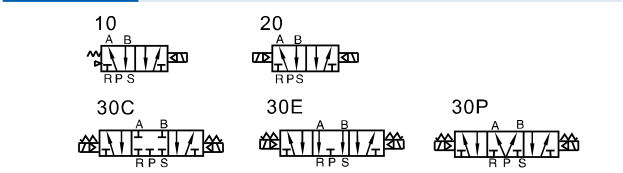

| Valve function and center | 10: single-solenoid 5/2; 20: double-solenoid 5/2 with memory; 30C: double-solenoid 5/3 closed center; 30E: exhaust center; 30P: pressure center. Match the circuit and desired center behavior. A memory or center choice is not a certified safety stop or load-holding guarantee. |
| Pilot and pressure | Internal or external pilot is stated in the specification. The published ordering table does not encode a pilot selector: confirm actual pilot arrangement, available pressure and circuit separately. Operating pressure 0.15–0.8 MPa; proof pressure 1.2 MPa is not an operating rating. |
| Air and temperature | Air filtered to 40 μm or finer; −20 to 70°C; aluminum alloy body. Lubrication not required. If lubrication is used, continue with the same medium; ISO VG32 or equivalent is recommended. |
| Voltage and electrical entry | A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V. AC tolerance ±15%; DC ±10%. Blank: terminal; I: grommet with 0.5 m lead. Confirm AC/DC, voltage, coil power, connector orientation and terminal/grommet clearances. |
| Coil and timing conditions | Insulation class B and IP65 (DIN40050) are published coil specifications; verify the complete installed connector/sealing arrangement. Activation time 0.05 s or below is not a complete machine-cycle guarantee. Maximum frequency 5 cycles/s for 10/20, 3 cycles/s for 30C/E/P, under no-load conditions. |
| Thread and code boundary | For inch ports, blank means PT, G means G thread, T means NPT. Center codes 30C/30E must not be confused with voltage codes C/E. Standard valve lookup does not establish explosion-proof, alternate-pilot, coil-only or manifold accessory compatibility. |
| Manifold and RFQ inputs | A manifold/base is a separate accessory, not a valve function. Confirm base model, station count, valve size, thread, blank plates and assembly from labels/drawings. Send valve and coil codes or photos, circuit, pressure/flow need, voltage/entry, ports, mounting envelope, quantity and destination for quotation. |
| 4V200 ports | 06: inlet, outlet and exhaust all 1/8. 08: inlet/outlet 1/4, exhaust remains 1/8. Match PT/G/NPT thread and actual exhaust routing; 08 does not mean all five ports are 1/4. |
| 4V200 coil power and weight | AC220/110: 4.5VA; AC24: 5.0VA; DC24: 3.0W; DC12: 2.5W. Valve weights: 220g single 5/2, 320g double 5/2, 360g three-position. |
| 4V200 published flow scope | 4V210-08 and 4V220-08: equivalent area 17 mm², Cv 1.0; 4V230C-08: 13.6 mm², Cv 0.8. This row does not individually rate 06 or 30E/30P; confirm those separately. Flow chart specifically illustrates 4V210-08 under AirTAC laboratory conditions, not an unconditional L/min promise. |
| 4V200 mounting and base reference | Use 4V210, 4V220 and 4V230 terminal/grommet drawings and their 06/08 dimension tables. A exhaust is 1/8 for both; B work port is 1/8 or 1/4. Ordering note refers to manifold printed page 96, absent from this two-page valve PDF; verify the separate official manifold sheet, not valve page 88. |
