AFR and BFR are integrated filter-regulator families. Confirm body, size, port, drain, gauge arrangement, pressure form, filter grade and thread before RFQ.

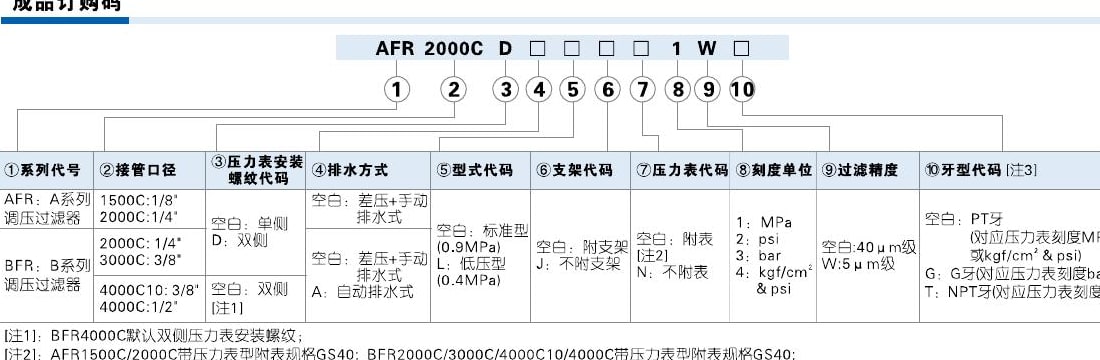

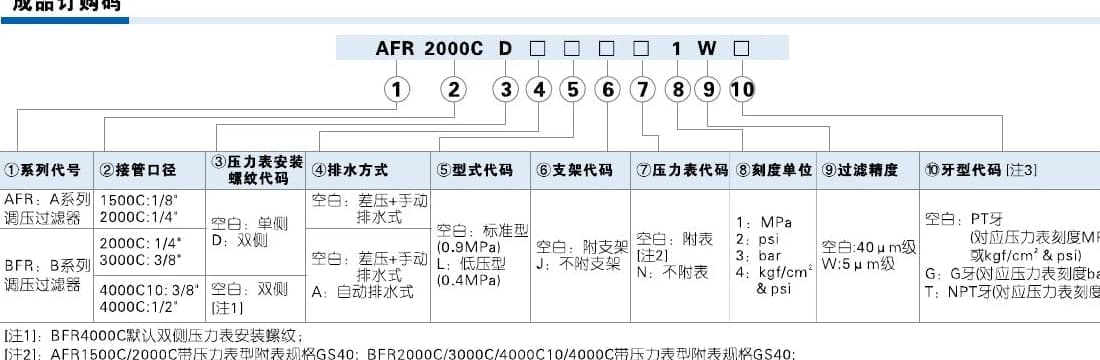

Ordering code matching
Code format
AFR/BFR [size] [gauge mounting] [port] [drain] [pressure] [bracket] [gauge] [scale] [filter] [thread]Published AFR/BFR code layoutAFR 2000C D □ □ □ □ 1 W □BFR 4000C| ①Family / size / gauge position | ②Port / drain / pressure | ③Gauge / filtration / thread |
|---|---|---|
| AFR or BFR; match the published size and, where applicable, blank single or D double gauge mounting. | Match port, blank manual or A automatic drain, and blank standard or L low-pressure form. | Bracket, gauge, scale, blank 40 μm or W 5 μm, bowl and thread must match the full code. |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
AFR
A-series integrated filter-regulator
BFR
B-series integrated filter-regulator

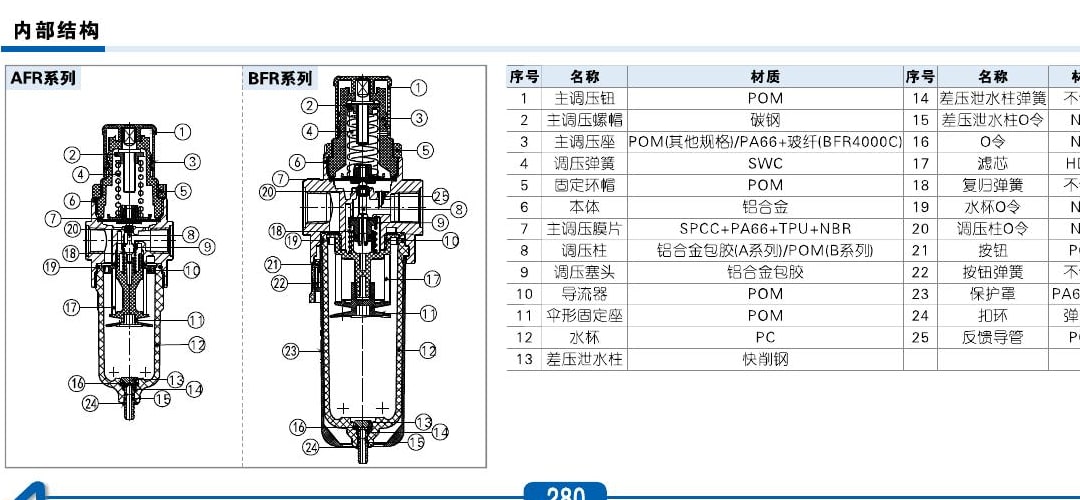

AFR and BFR combine filtering and pressure regulation in one body. AFR is the A-series format; BFR is the B-series format and its published gauge position can differ. Size, port, single/double gauge mounting, drain, standard or low-pressure form, bracket, gauge, filter grade, bowl and thread must remain code-level matching fields.
Product matching reference
Not automatically. Their A-series and B-series construction, gauge mounting and size context differ. Confirm the complete code and installed...
