AirTAC AL / BL Lubricators

AL compact lubricator left; BL lubricator with bowl guard right — AL lubricator left; BL with bowl guard right

Request a Quote WhatsApp Send a Photo — We’ll Help Identify It

Compressed-air lubricators with 1/8–1/2 ports and 25, 60 or 90 cm³ oil bowls. AL is compact;...

Official reference

Based on manufacturer documentation

Model support

For model confirmation

Parts lists

Code, photo, or BOM

Availability / lead time

By model and quantity

Sourcing route & inquiry details

Compressed-air lubricators with 1/8–1/2 ports and 25, 60 or 90 cm³ oil bowls. AL is compact; BL includes a bowl guard. Send the model, quantity and destination for a quote.

Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

Request type

AirTAC originalModel matchingChina-source alternative

Find your AL / BL type

Choose a type; send a model or photo if unsure.

AL1500C

1/8 · 25 cm³ oil bowl · 124 mm height

AL2000C

1/4 · 25 cm³ oil bowl · 124 mm height

BL2000C

1/4 · 60 cm³ oil bowl · 161.5 mm height

BL3000C

3/8 · 60 cm³ oil bowl · 161.5 mm height

BL4000C10

3/8 · 90 cm³ oil bowl · 185.5 mm height

BL4000C

1/2 · 90 cm³ oil bowl · 185.5 mm height

Request a Quote Send a Photo — We’ll Help Identify It →

Send the model, quantity and destination. For multiple items, attach a parts list or BOM.

AL / BL model details

Drawings & dimensions

Installation Drawings & Technical Specifications

Compare installed dimensions

Full View

Technical reference

Click to open full drawing ↗

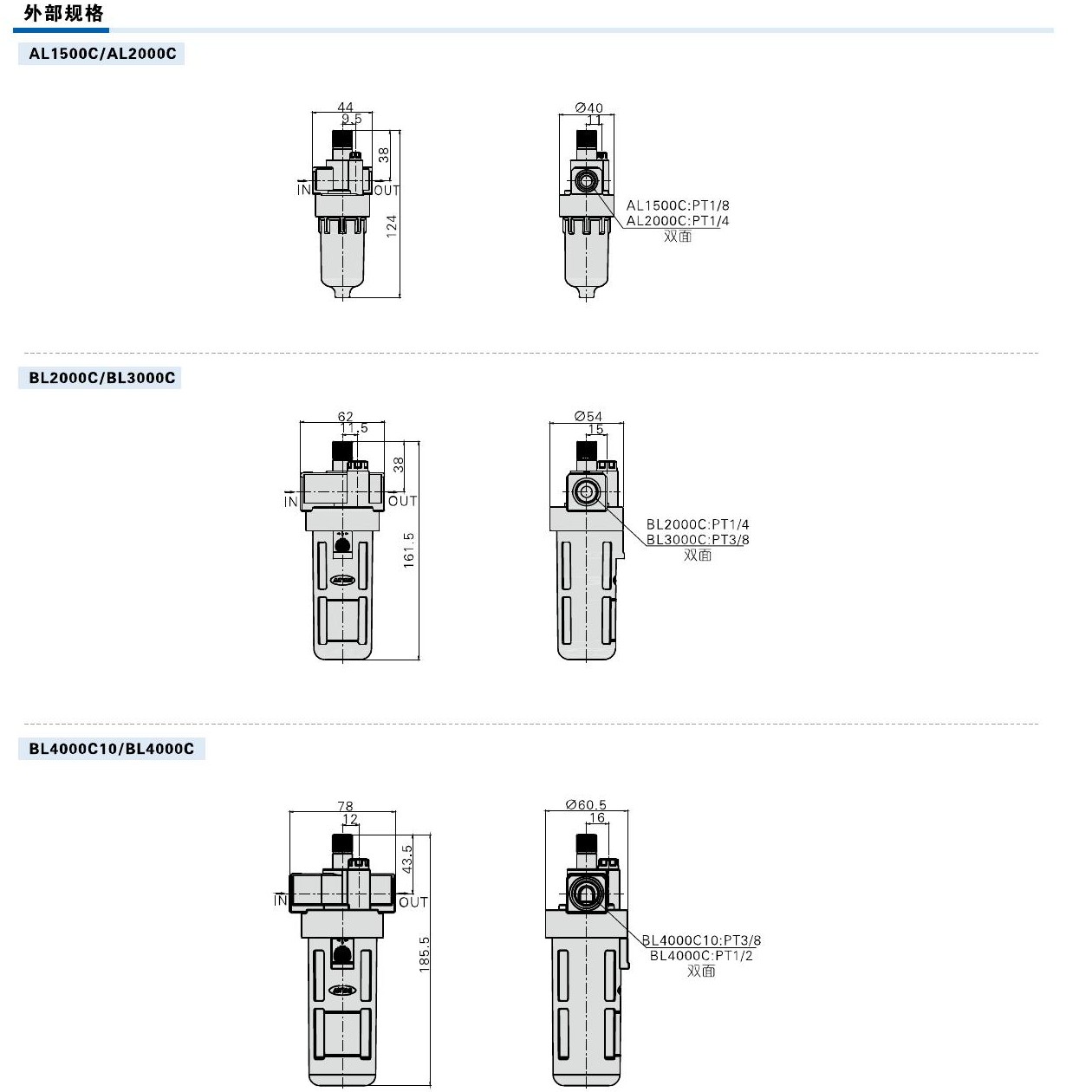

AL1500C and AL2000C lubricator installation dimensions and IN OUT direction

Helpful for Model Matching:

Full code or installed label; quantity and destination
Model-specific main port and PT/G/NPT thread
25/60/90 cm³ oil bowl and matching body height
ISO VG 32 or equivalent; downstream lubrication requirements
IN left / OUT right in drawings; bowl service clearance

Use the matching AL/BL drawing and embedded main-port size
Drawings show IN left and OUT right; check the installed arrows
Compare oil-bowl volume, body height and maintenance clearance

Catalogue Technical Specifications

AirTAC reference data

Function	Compressed-air lubrication / Druckluftschmierung
Working medium	Air / Druckluft
Main port by model	AL1500C: 1/8; AL2000C/BL2000C: 1/4; BL3000C/BL4000C10: 3/8; BL4000C: 1/2
Working pressure	0.05–1.0 MPa
Proof pressure	1.5 MPa
Temperature	−5–70 °C, non-freezing / frostfrei
Oil bowl capacity	AL: 25 cm³; BL2000C/3000C: 60 cm³; BL4000C10/4000C: 90 cm³
Recommended lubricant	ISO VG 32 or equivalent / gleichwertig
Reference overall height	AL1500C/2000C: 124 mm; BL2000C/3000C: 161.5 mm; BL4000C10/4000C: 185.5 mm
Construction	Aluminium-alloy body; PC oil bowl; BL bowl guard / Aluminiumgehäuse; PC-Ölbehälter; BL-Behälterschutz

Common Model Codes & Configurations:Useful for an RFQ

ALBLAL1500CAL2000C

Send the model code, quantity and destination, or attach a parts list.

WhatsApp Quote BOM

Technical reference & selection notes

Ordering Codes, Fit Verification & Specifications

Specifications, installation dimensions, and ordering-code notes.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

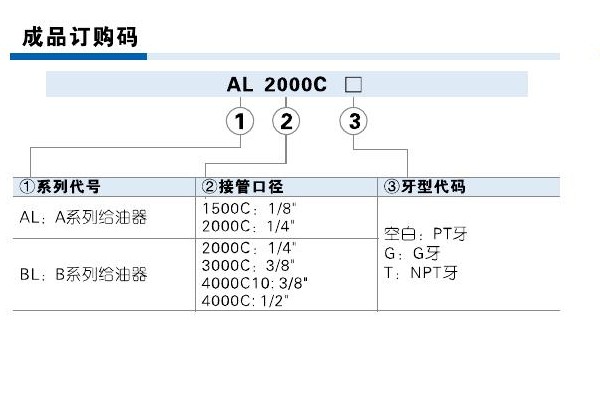

Code format

[AL/BL base model][blank/G/T]Main port is included in the base model

AL2000CBL3000CGBL4000C10TBL4000C

①–②Model and included main port	③Thread
AL1500C 1/8; AL2000C/BL2000C 1/4; BL3000C/BL4000C10 3/8; BL4000C 1/2. No separate port suffix.	Blank PT; G G-thread; T NPT. No filter, drain, pressure-setting, bracket, gauge or bowl-option field is published.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

BL3000CG

Model and included main portModel and included main port

AL1500C 1/8; AL2000C/BL2000C 1/4; BL3000C/BL4000C10 3/8; BL4000C 1/2. No separate port suffix.

ThreadThread

Blank PT; G G-thread; T NPT. No filter, drain, pressure-setting, bracket, gauge or bowl-option field is published.

Matching Questions

Can AL2000C and BL2000C replace each other because both have 1/4 ports?

A shared port does not establish fit. AL2000C has a 25 cm³ oil bowl and 124 mm reference height; BL2000C has a guarded 60 cm³ oil bowl and 161.5 mm reference height. Send the installed label and photo to compare body size, thread and service clearance.

AL / BL

Include this series in a project RFQ

AL / BL Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quote WhatsApp Send a parts list or BOM

Confirm inspection requirements before quotationSpecify shipping preferenceConfirm timing in the quotationOcean & Rail Available
