3A100 is a three-port, two-position externally air-piloted valve range. Confirm 10/20 control, M5 or 1/8 port, NC/NO state and thread before RFQ.
Ordering code matching
Code format

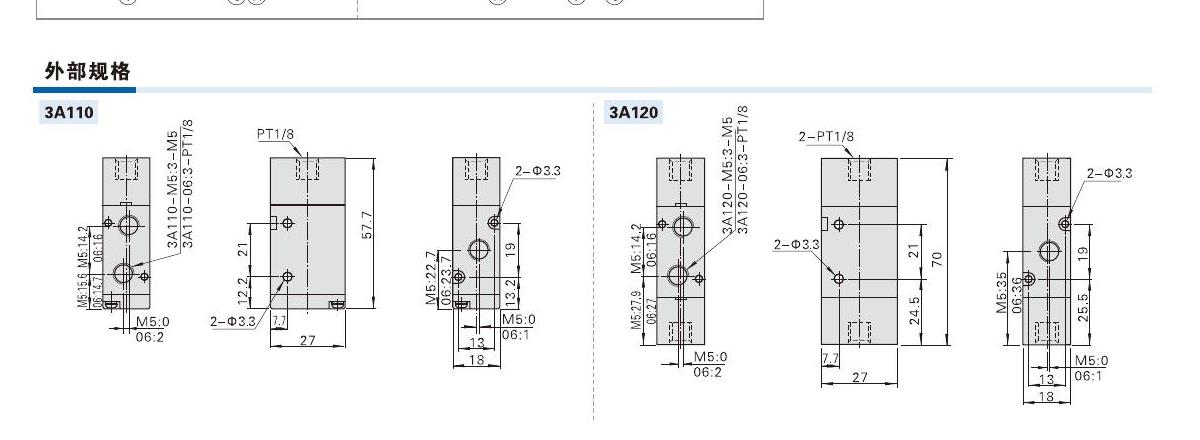

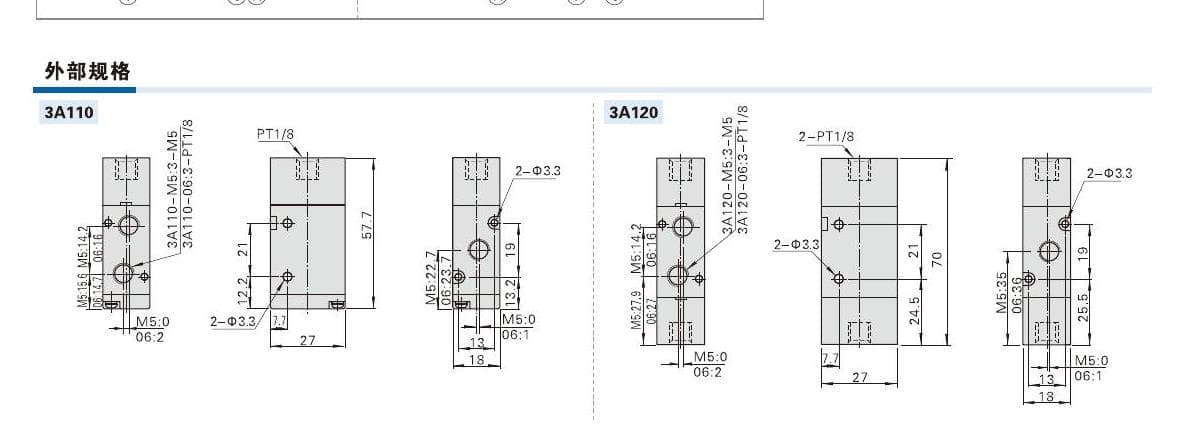

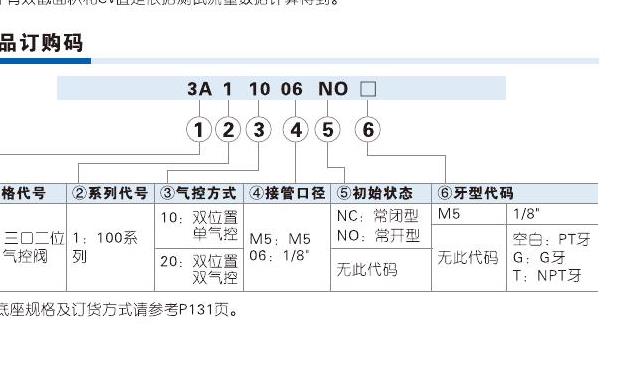

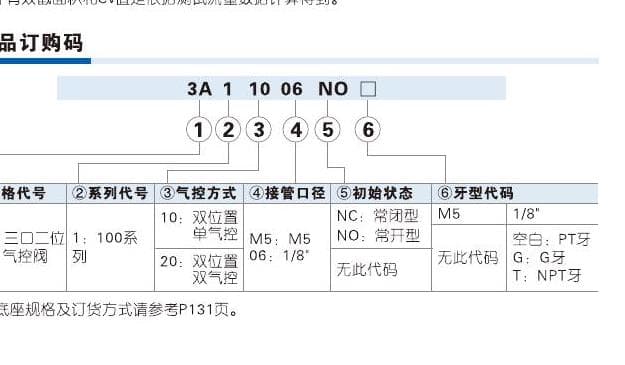

3A 1 [10/20] [M5/06] [NC/NO for 10] [PT/G/NPT]Published 3A100 code layout3A110-M53A120-M53A110-06-NC| ①Control | ②Port | ③Thread |
|---|---|---|
| 10 single pilot (NC/NO) or 20 double pilot. | M5 or 1/8 inch for the 100 range. | Blank PT; G G thread; T NPT thread. |
If the label is incomplete, send the readable parts together with a photo.
3A 1 10 06 NC3AValve family
Published three-port two-position externally air-piloted valve.
1Series size
100 range.
10 / 20Pilot control
10 single pilot; 20 double pilot.
M5 / 06Port
M5 or 1/8 inch published port.
NC / NO / PT/G/NPTState and thread
10 uses NC or NO; blank is PT, G and T identify published thread options.
3A100 is the smallest published range in the 3A externally air-piloted three-port valve group. Its M5 and 1/8 port options, flow area and envelope are specific to this range; do not select it only because the circuit symbol looks similar to 3A200 or 3A300.
Product matching reference
No. All are externally air-piloted three-port ranges, but the PDF publishes different port, flow and dimensional data for each. Match the complete...
