Externally air-piloted 5/2 and 5/3 valves with M5 or 1/8 main ports. Choose single or double pilot, or closed/exhaust/pressure center; send the model or label, quantity and destination for a quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Choose a type; send a model or photo if unsure.
4A110
5/2 single air pilot
4A120
5/2 double air pilot, memory function
4A130C
5/3 closed center
4A130E
5/3 exhaust center
4A130P
5/3 pressure center
Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
Match a 4A100 model code
1–16 stations, 1/4 base inlet; request the base, blank plates or valve assembly. The 3V bases for 3A are separate.
View base details and request a quote →4A100 ordering-code fields
Helpful for Model Matching:
| Function | 5 ports; 5/2 (10/20) or 5/3 (30C/E/P); external air pilot |
| Main ports | M5 or 06=1/8; M5 no thread suffix; 06 PT/G/NPT |
| Equivalent flow area / Cv | 4A110-06 / 4A120-06: 10.2 mm² / 0.6; 4A130C-06: 8.6 mm² / 0.51. M5 and E/P values not stated. |
| Operating pressure | 0.15–0.8 MPa (21–114 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | −20 to +70 °C |
| Maximum no-load frequency | 5/2: 5 cycles/s; 5/3: 3 cycles/s |
| Medium / lubrication | Air filtered through 40 μm element. Lubrication not required; once lubricated, continue the same medium; ISO VG32 or equivalent recommended. |
| Body | Aluminum alloy |

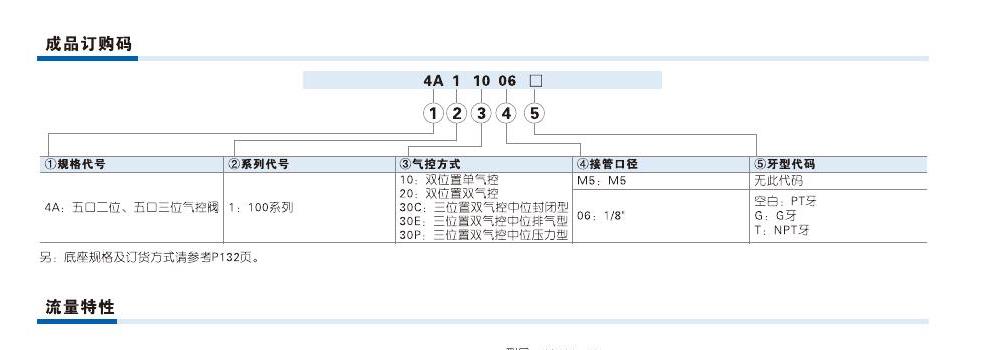

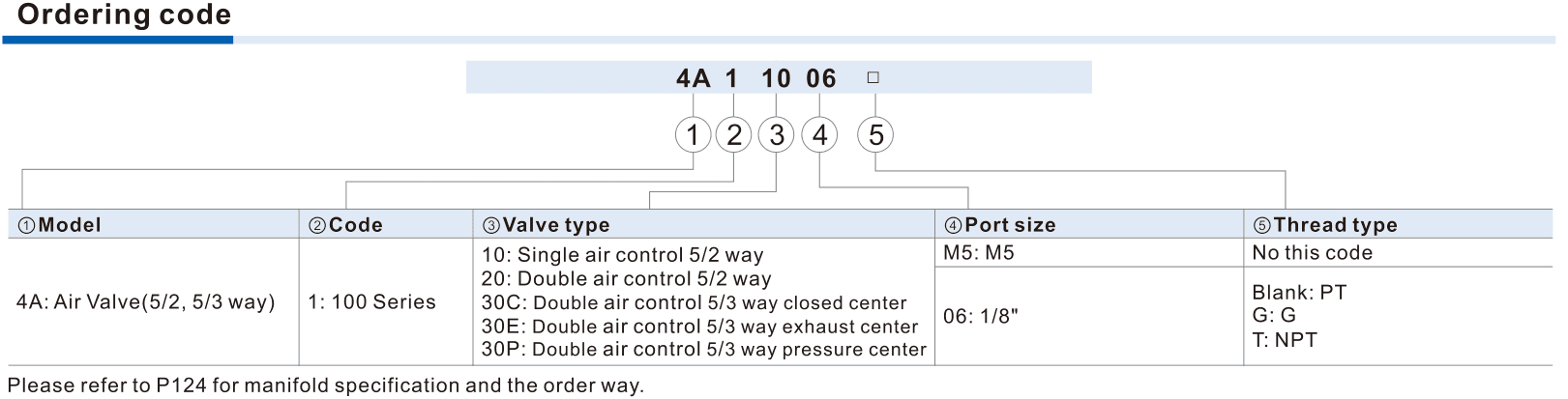

Ordering code matching
Code format
4A1[10/20/30C/30E/30P]-M5M5, no thread suffix4A1[10/20/30C/30E/30P]-06-[blank/G/T]1/8, thread option4A110-M54A120-06-G4A130C-06-T4A130E-M54A130P-06| ①Circuit | ②Port / thread |
|---|---|
| 10 single-pilot 5/2; 20 double-pilot 5/2; 30C closed, 30E exhaust, 30P pressure center 5/3. | M5: no suffix. 06: 1/8; blank PT, G, T=NPT. |
If the label is incomplete, send the readable parts together with a photo.
4A130E-06-G4A1Valve family / size
100 range, externally air-piloted 5/2 or 5/3.
10 / 20 / 30C / 30E / 30PControl / circuit
10 single pilot; 20 double pilot; 30C closed, 30E exhaust, 30P pressure center.
M5 / 06Main port
M5 or 06=1/8; pilot connections shown separately as 1/8.
blank / G / TThread (06 only)
Blank PT, G or T=NPT. M5 has no thread suffix.
4A100 includes single-pilot 4A110 and double-pilot 4A120 5/2 valves, plus double-pilot 4A130C/E/P 5/3 valves with different center circuits. Retain the complete circuit code when sourcing a replacement; port size alone does not identify its behavior.
The 10/20 and 30C/30E/30P codes identify different pneumatic behaviour. Match the complete code rather than choosing only by port size.
No. The table lists 10.2 mm² / Cv 0.6 for 4A110-06 and 4A120-06, and 8.6 mm² / Cv 0.51 specifically for 4A130C-06. It does not state an equivalent value for M5 or E/P center forms. Send the operating requirement for confirmation.
Yes. Send the label or photos, circuit function, quantity and destination. We can help clarify single or double pilot, center condition, ports and the installed base before quoting.
The official 4A accessory page lists 100M, with 1–16 stations, a 1/4 base inlet and blank PT, G or T=NPT threads. Blank-plate kit P-100M-R2 is separate. Send the valve model and required supply scope; do not substitute the 3V100M base listed for 3A100.
