Identify from the photo
- Full 6STA code or readable label
- 0500, 100, 200 or 300 range
- 10 single-pilot or 20 double-pilot arrangement
- NC or NO normal state where applicable
- Port code, PT/G/NPT thread and any 6STV manifold-base code
AirTAC 6STA Three-Port Air-Pilot Valves
6STA is a three-port, two-position air-pilot valve family. Confirm range, 10 or 20 pilot arrangement, normal state, port, thread and any manifold-base requirement before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
6STAAir Pilot Valves
Ordering code matching
Match each code segment

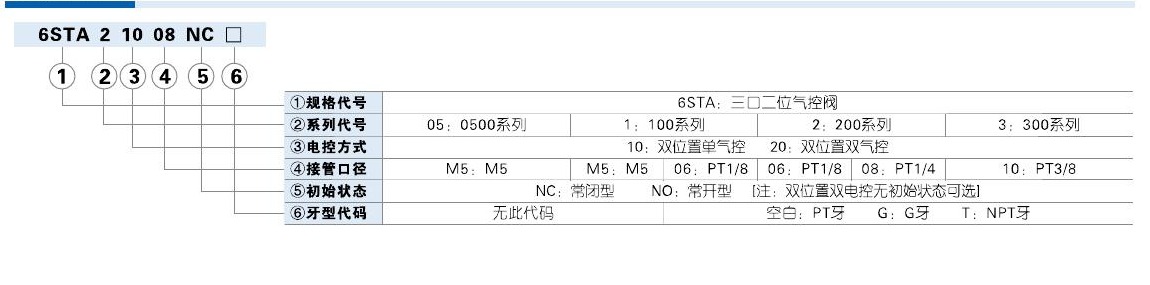

Code format
6STA [05/1/2/3] [10/20] [M5/06/08/10] [NC/NO] [PT/G/NPT]Published 6STA valve code layout6STV[0500M/100M/200M/300M] [1F–30F] [PT/G/NPT]Published 6STV manifold-base code layout6STA 05 10 M5 NC6STA 1 20 066STA 3 10 10 NO6STV200M-5F| ①Range | ②Pilot arrangement | ③Port | ④State / thread |
|---|---|---|---|
| 05: 0500; 1: 100; 2: 200; 3: 300. | 10 single pilot; 20 double pilot. | M5, 06 1/8, 08 1/4, 10 3/8 as published by range. | NC normally closed or NO normally open where applicable; blank PT, G G-thread, T NPT. |
About 6STA
6STA covers the published 0500, 100, 200 and 300 three-port ranges. Normal state applies to the single-pilot arrangement; the source identifies initial state as optional for the double-pilot arrangement. Confirm any 6STV base together with the valve.
Product matching reference
Compare the photo, drawing, and measurable details first
Drawing reference
- Confirm 6STA0500, 6STA100, 6STA200 or 6STA300 together with the installed valve or base
- Match 10/20 pilot arrangement, NC/NO state where applicable, port code, PT/G/NPT thread and any 6STV manifold-base configuration
Key details for matching
Model patterns
- 6STA0500
- 6STA0510-M5
- 6STA120-06
- 6STA220-08
Reference details
- Product type: Three-port, two-position air-pilot valve
- Published valve ranges: 0500, 100, 200, 300
- Published operating pressure: 0.15–0.8 MPa
- Published temperature: −20 to +70 °C

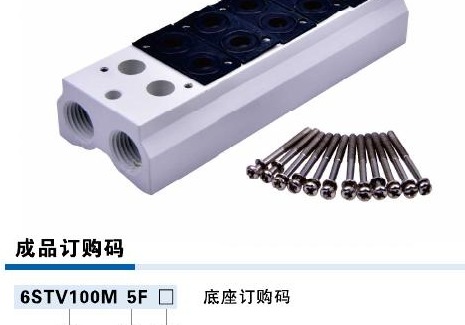

- Related manifold bases: 6STV0500M, 6STV100M, 6STV200M, 6STV300M
- Reference pages: PDF pages 1–4
Matching Questions
When should NC or NO be confirmed for 6STA?
Confirm NC or NO for the applicable single-pilot configuration. For a double-pilot arrangement, use the full installed code and circuit requirements...
6STA
