AirTAC 7SA Five-Port Air-Pilot Valves
7SA is a five-port, two-position and three-position air-pilot valve family. Confirm range, circuit, port, thread and any manifold-base requirement before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
7SAAir Pilot Valves
Ordering code matching
Match each code segment
Code format

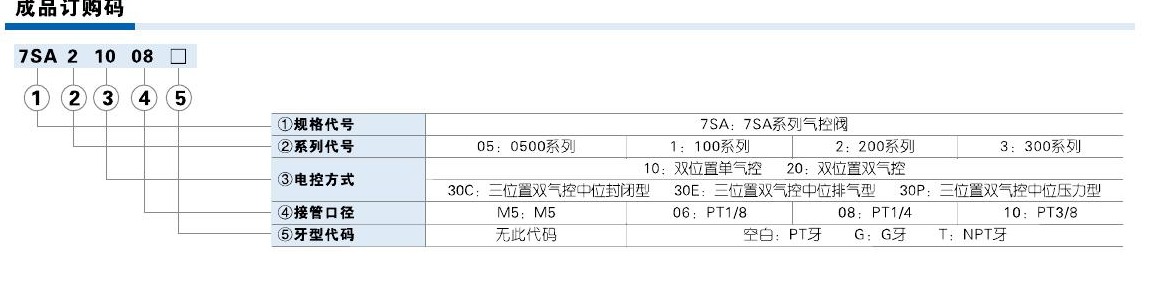

7SA [05/1/2/3] [10/20/30C/30E/30P] [M5/06/08/10] [PT/G/NPT]Published 7SA valve code layout7SV[0500M/100M/200M/300M] [1F–30F] [PT/G/NPT]Published 7SV manifold-base code layout7SA0510-M57SA120-067SA230-087SA310-107SV200M-5F| ①Range | ②Circuit | ③Port | ④Thread / base |
|---|---|---|---|

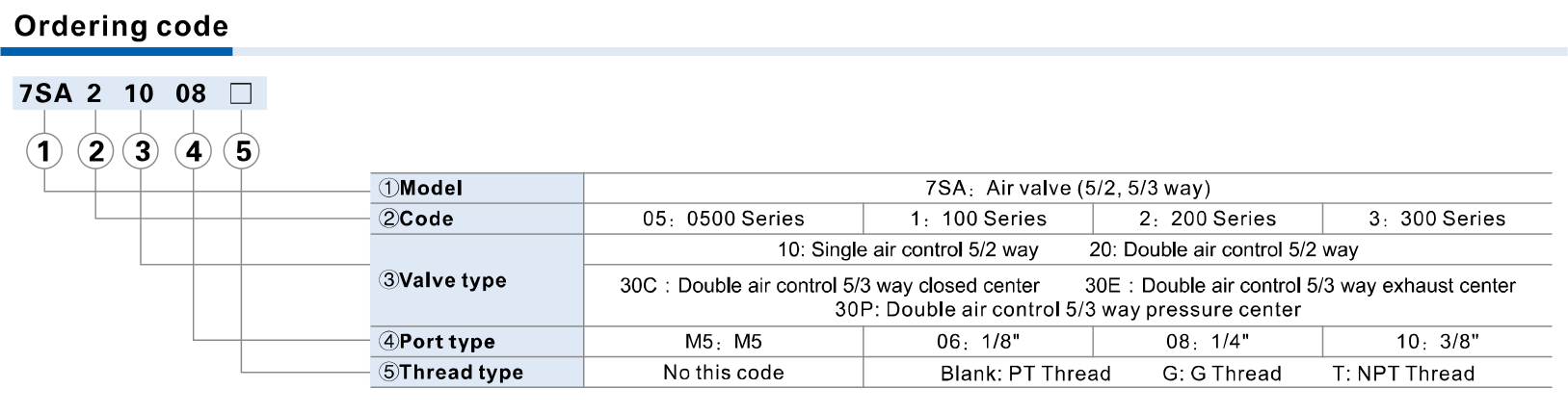

| 05: 0500; 1: 100; 2: 200; 3: 300. | 10/20 two-position; 30C closed centre, 30E exhaust centre, 30P pressure centre. | M5, 06 1/8, 08 1/4, 10 3/8 as published by range. | Blank PT, G G-thread, T NPT; 7SV base uses its range and station code. |
About 7SA
7SA covers the published 0500, 100, 200 and 300 ranges. The source also defines 7SV manifold bases; match the valve range and circuit with any installed base and station count.
Product matching reference
Compare the photo, drawing, and measurable details first
Drawing reference
- Confirm 7SA0500, 7SA100, 7SA200 or 7SA300 together with the installed valve or base
- Match 10/20/30C/30E/30P function, port code, PT/G/NPT thread and any 7SV manifold-base configuration
Key details for matching
Model patterns
- 7SA0500
- 7SA0510-M5
- 7SA120-06
- 7SA230-08
Reference details
- Product type: Five-port two-position and three-position air-pilot valve
- Published valve ranges: 0500, 100, 200, 300
- Published operating pressure: 0.2–0.8 MPa for three-position; 0.15–0.8 MPa for other types
- Published temperature: −20 to +70 °C

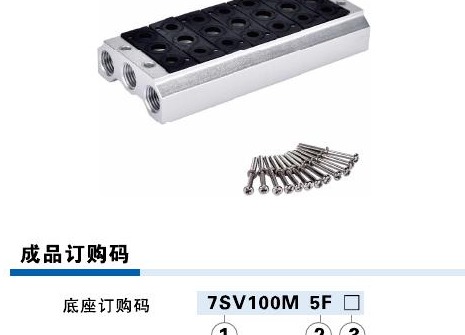

- Related manifold bases: 7SV0500M, 7SV100M, 7SV200M, 7SV300M
- Reference pages: PDF pages 1–4
Matching Questions
Is a 7SV manifold base the same as a 7SA valve?
No. 7SV is the matching base range. Confirm the 7SA valve range and circuit together with its 7SV base range, station count and installed port...
7SA
