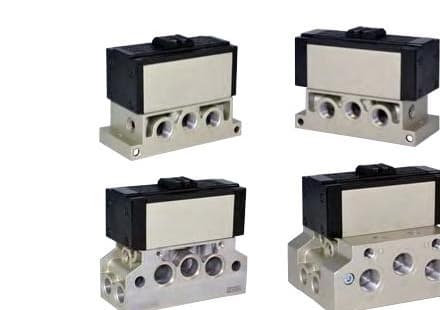

AirTAC EAV ISO Standard Air-Pilot Valves
EAV is an ISO standard five-port, two-position and three-position air-pilot valve family. Confirm range, circuit, ISO interface and ESV base configuration before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
EAVAir Pilot Valves
Ordering code matching
Match each code segment
Code format

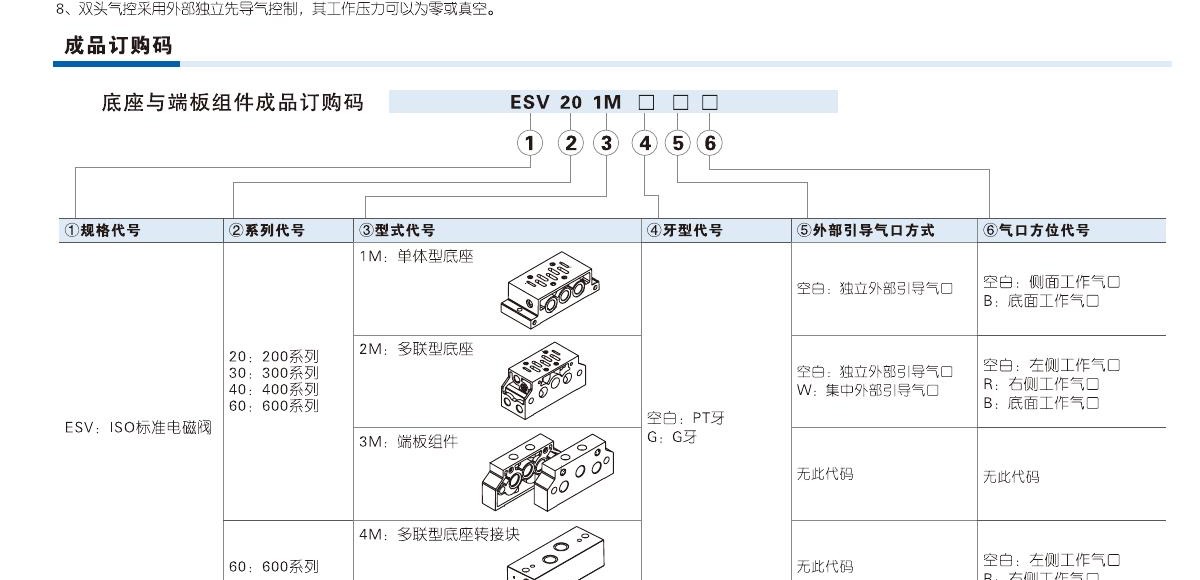

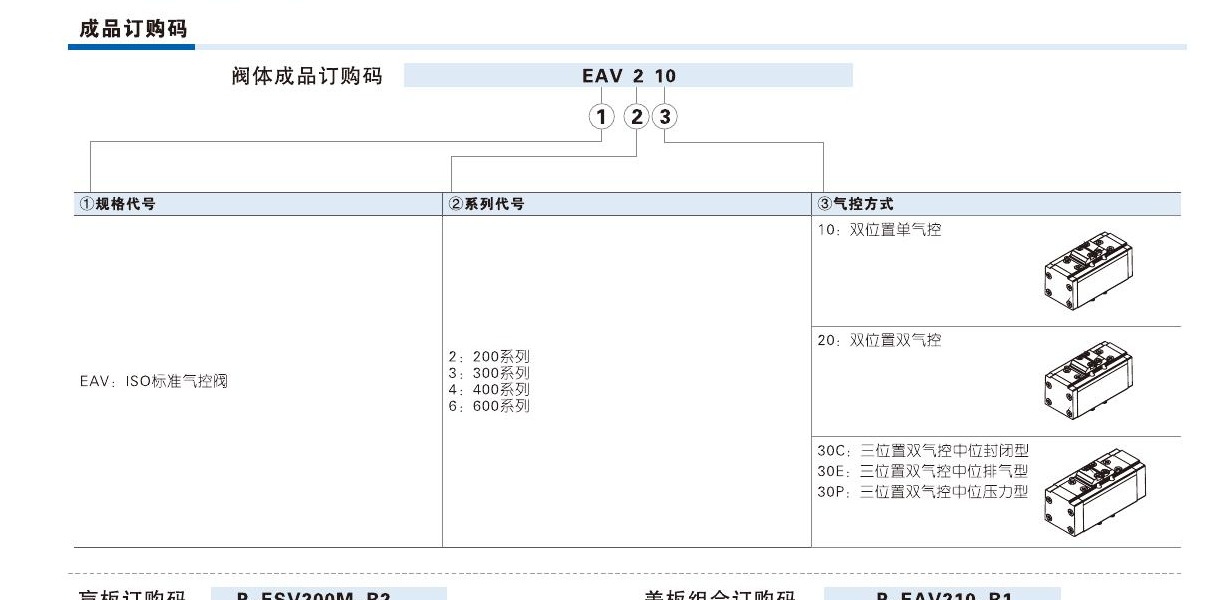

EAV [2/3/4/6] [10/20/30C/30E/30P]Published EAV valve code layoutESV [20/30/40/60] [1M/2M/3M/4M] [PT/G] [pilot/port options]Published ESV base and end-block code layoutEAV210EAV230CEAV410ESV20-1M| ①Valve range | ②Circuit | ③Base / manifold | ④Interface |
|---|---|---|---|
| 2: 200; 3: 300; 4: 400; 6: 600. | 10/20 two-position; 30C closed centre, 30E exhaust centre, 30P pressure centre. | Match ESV range and base, multi-base or end-block configuration. | ISO 5599-1 mounting interface and installed pilot/port orientation. |
About EAV
EAV covers ISO-standard 200, 300, 400 and 600 valve ranges. Its ISO 5599-1 mounting interface and the ESV base or manifold configuration are core matching details, not optional accessories.
Product matching reference
Compare the photo, drawing, and measurable details first
Drawing reference
- Confirm EAV200, EAV300, EAV400 or EAV600 and the complete circuit code
- Match ISO 5599-1 interface, base/manifold form, pilot arrangement, port orientation and installed envelope
Key details for matching
Model patterns
- EAV200
- EAV210
- EAV220
- EAV230C
Reference details
- Product type: ISO standard five-port two-position and three-position air-pilot valve
- Published ranges: 200, 300, 400, 600
- Published mounting interface: ISO 5599-1
- Published operating pressure: Single pilot 0.2–1.0 MPa; double pilot −0.09–1.0 MPa
- Reference pages: PDF pages 1–8
Matching Questions
Why is the ESV base configuration needed for EAV matching?
EAV uses the ISO interface but the installed base determines pilot arrangement, port direction and assembly layout. Send the valve code and a photo...
EAV
Include this series in a project RFQ
EAV Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
