Home/Product Series/AirTAC Sourcing/Fluid Control Valves/2J

AirTAC 2J Pneumatic Angle-Seat Valves

2J is a two-port, two-position pneumatic angle-seat valve family. Confirm body material, normal state, nominal passage, port, actuator size and medium direction before RFQ.

Request type
AirTAC originalModel matchingChina-source alternative
Start RFQSend photo / label
2JFluid Control Valves
2J angle-seat valve family product reference
Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

2J [S/W] [blank/Y/K] [150/200/250/320] [10/15/20/25/32] [Q40/Q50/Q63/Q80] [G/T]Published 2J angle-seat valve code layout
2JS150-10-Q50-G2JW200-20-Q63-G2JSK250-25-Q80-T
①Body material②Normal state③Passage / port④Actuator / thread
S: SUS316L; W: SUS304.Blank normally closed without water-hammer form; Y normally closed water-hammer form; K normally open.150/200/250/320 for DN15/DN20/DN25/DN32; port 10/15/20/25/32 follows the published table.Q40/Q50/Q63/Q80 actuator bore; G G-thread, T NPT.

About 2J

2J is an angled two-port valve assembly rather than a standard directional valve. The code carries body material, normal state / water-hammer configuration, nominal passage, port and actuator bore; all are necessary for a valid match.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo
2J angle-seat valve family product reference
  • Full 2J code or readable label
  • S SUS316L or W SUS304 body material
  • Normally closed configuration, normally closed water-hammer configuration, or normally open configuration
  • Nominal passage 15, 20, 25 or 32 mm and matching port
  • Q40/Q50/Q63/Q80 actuator bore, control pressure, medium direction and installed clearance
Drawing reference

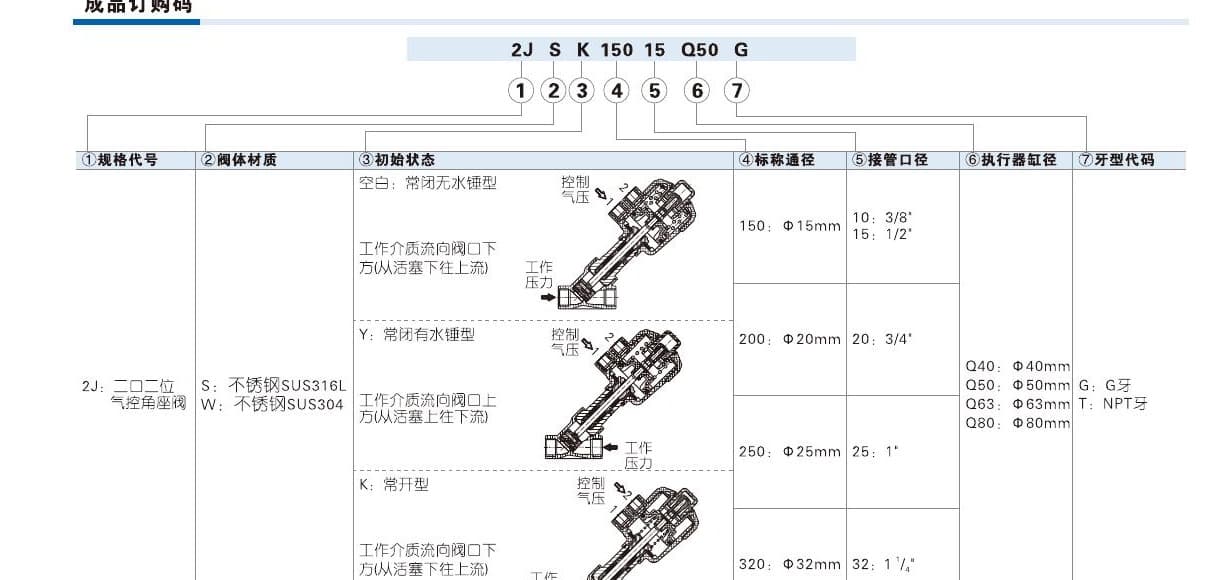

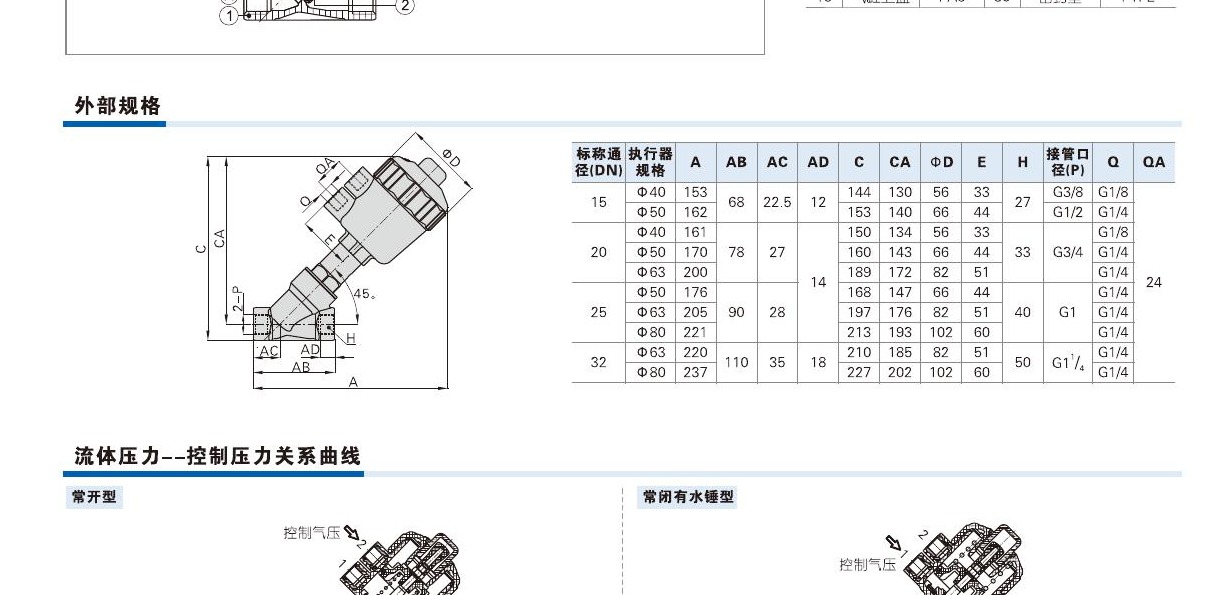

2J angle-seat valve ordering code referenceOpen drawing2J angle-seat valve installation drawing referenceOpen drawing
  • Confirm the full 2J code, including stainless-steel material and normal-state / water-hammer configuration
  • Compare nominal passage, port thread, actuator bore, control pressure, medium direction and installed clearance
Key details for matching

Model patterns

  • 2JS150-10-Q50-G
  • 2JW200-20-Q63-G
  • 2JSK250-25-Q80-T
  • 2JSY320-32-Q80-G

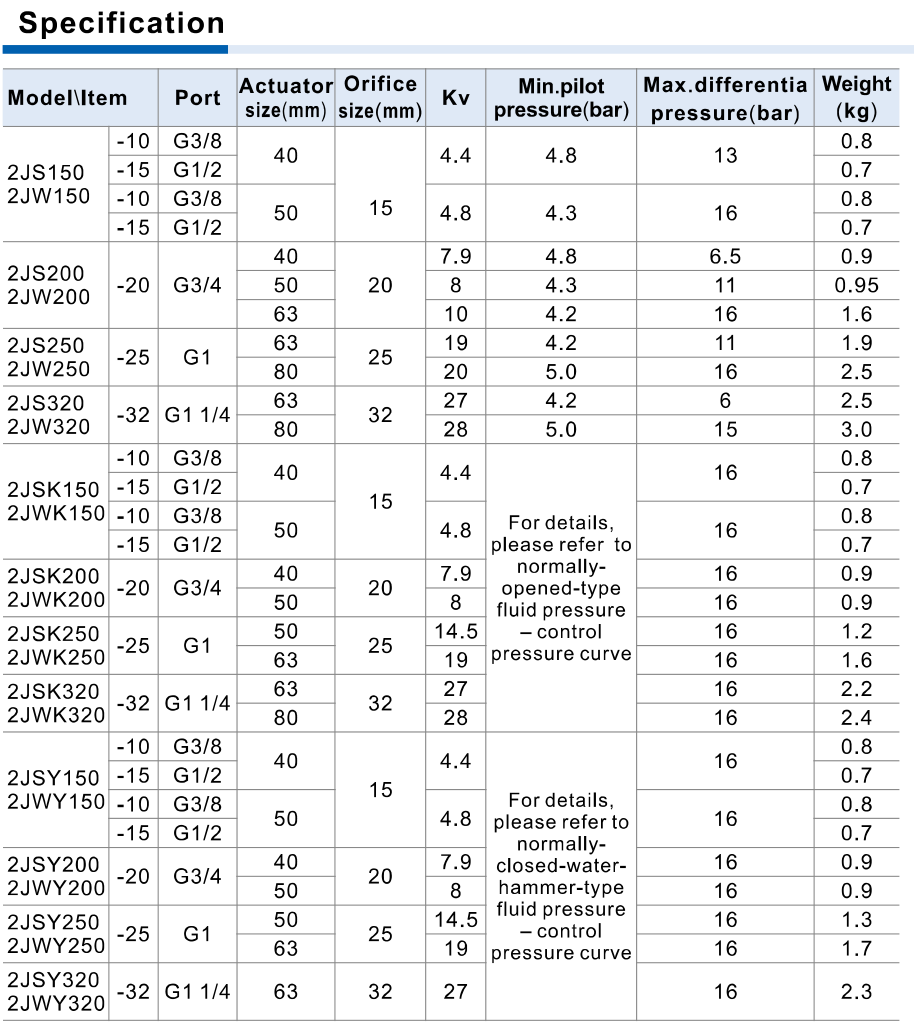

Reference details

  • Product type: Two-port, two-position pneumatic angle-seat valve
  • Published nominal passages: DN15, DN20, DN25, DN32
  • Published body materials: SUS316L or SUS304
  • Published working-medium temperature: −20 to +180 °C
  • Reference pages: PDF pages 1–3

Matching Questions

Why must medium direction and normal state be checked for 2J?

The source shows different internal flow directions for the normally closed, water-hammer and normally open forms. Confirm the installed flow...
