Choose the 2KLA family first
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
030 / 050
Direct-acting normally open
150–500
Pilot-operated normally open
AirTAC 2KLA Normally Open Fluid Control Valves
2KLA is a normally open two-port, two-position fluid-control valve family with distinct direct-acting and pilot-operated configurations. Confirm the operating structure before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
2KLAFluid Control Valves
Ordering code matching
Match each code segment
Code format

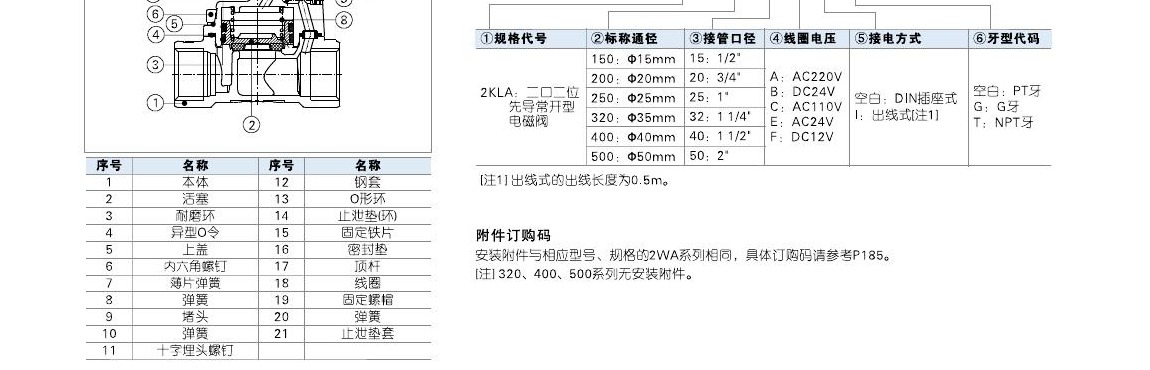

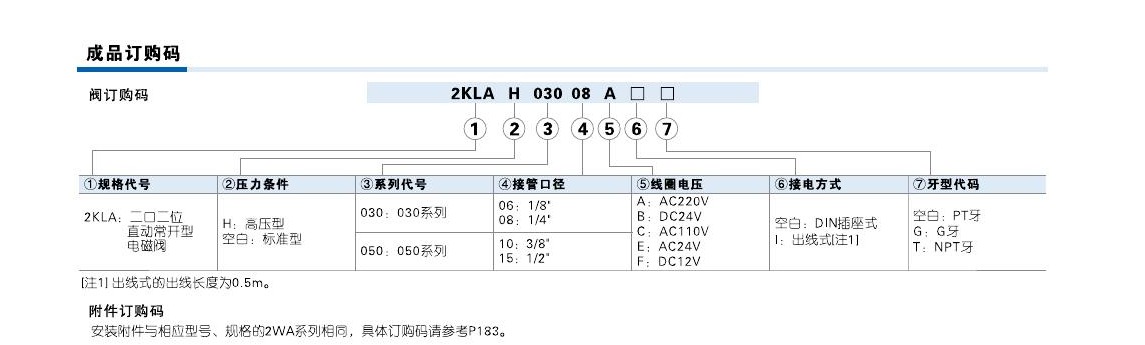

2KLA [H] [030/050] [06/08/10/15] [A–F] [DIN/lead] [PT/G/NPT]Published direct-acting code layout2KLA [150/200/250/320/400/500] [15/20/25/32/40/50] [A–F] [DIN/lead] [PT/G/NPT]Published pilot-operated code layout2KLA H 030 08 A2KLA 050 15 B2KLA 150 15 A2KLA 320 32 B| ①Structure | ②Passage / port | ③Voltage | ④Connection / thread |
|---|---|---|---|
| 030/050 direct acting; 150–500 pilot operated. H is a published high-pressure condition on the direct 030 form. | Direct: 030/050 with 06/08/10/15 ports; pilot: 150–500 with matching 15–50 ports. | A AC220V; B DC24V; C AC110V; D AC24V; F DC12V. | Blank DIN; I lead; blank PT, G G-thread, T NPT. |
About 2KLA
The source contains two structurally different normally open 2KLA configurations. Direct-acting 030 and 050 forms use a different code and pressure context from pilot-operated 150 through 500 forms. They remain grouped here for series discovery, but must not be substituted for one another.
Product matching reference
Compare the photo, drawing, and measurable details first

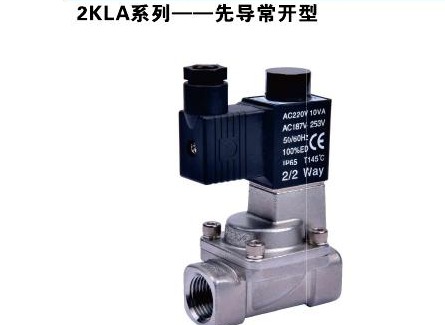

Identify from the photo
- Full 2KLA code or readable label
- Direct-acting 030/050 or pilot-operated 150/200/250/320/400/500 construction
- Normally open two-port, two-position function
- Nominal passage and port
- Coil voltage, DIN or lead connection, PT/G/NPT thread and installed dimensions
Drawing reference
- Confirm whether the installed 2KLA is direct-acting 030/050 or pilot-operated 150 through 500
- Match normally open function, nominal passage, port, coil voltage, DIN or lead connection, thread and installed envelope
Key details for matching
Model patterns
- 2KLAH030-06-A
- 2KLA030-08-B
- 2KLA150-15-A
- 2KLA320-32-B
Reference details
- Product type: Normally open two-port, two-position fluid-control valve
- Published structures: Direct acting 030/050; pilot operated 150–500
- Published pressure context: Direct 030/050: 0.7 or 1.5 MPa by form; pilot 150–500: 0.05–0.7 MPa
- Published protection class: IP65
- Reference pages: PDF pages 1–5
Matching Questions
Can a direct 2KLA030/050 replace a pilot-operated 2KLA150–500 valve?
No. The source shows different operating structures, code formats, pressure context and installed dimensions. Match the complete installed code and...
2KLA
Include this series in a project RFQ
2KLA Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
