Choose the 2KSA family first
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
030 / 050
Direct-acting normally open
150–500
Pilot-operated normally open
AirTAC 2KSA Normally Open Fluid Control Valves
2KSA is a normally open two-port, two-position fluid-control valve family with distinct direct-acting and pilot-operated configurations. Confirm the operating structure and pressure...
Request type
AirTAC originalModel matchingChina-source alternative
2KSAFluid Control Valves
Ordering code matching
Match each code segment

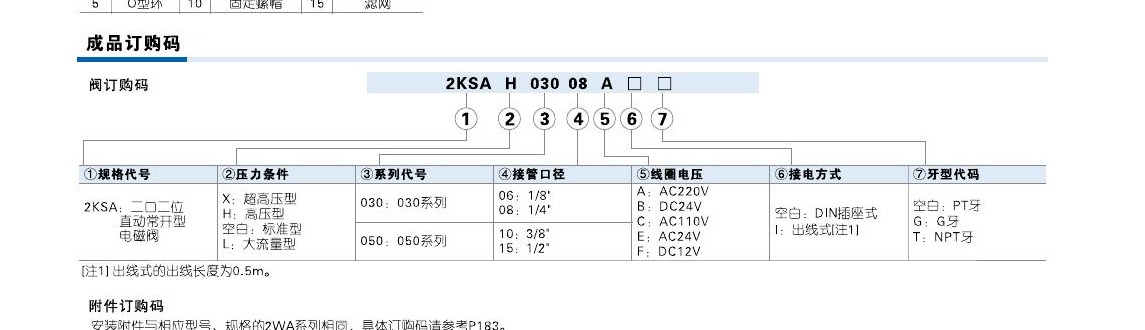

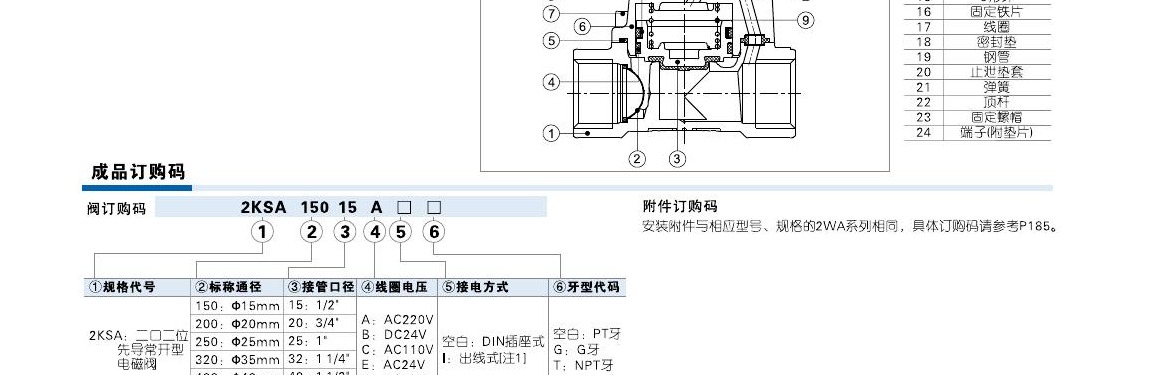

Code format
2KSA [X/H/blank/L] [030/050] [06/08/10/15] [A–F] [DIN/lead] [PT/G/NPT]Published direct-acting code layout2KSA [150/200/250/320/400/500] [15/20/25/32/40/50] [A–F] [DIN/lead] [PT/G/NPT]Published pilot-operated code layout2KSA H 030 08 A2KSA X 050 10 B2KSA 150 15 A2KSA 320 32 B| ①Structure / condition | ②Passage / port | ③Voltage | ④Connection / thread |
|---|---|---|---|
| 030/050 direct acting with X/H/blank/L condition; 150–500 pilot operated. | Direct 030/050 uses 06–15 ports; pilot 150–500 uses matching 15–50 ports. | A AC220V; B DC24V; C AC110V; D AC24V; F DC12V. | Blank DIN; I lead; blank PT, G G-thread, T NPT. |
About 2KSA
The shared 2KSA source contains direct-acting normally open 030/050 configurations and pilot-operated normally open 150–500 configurations. Direct forms also carry published X/H/blank/L pressure-condition fields. These structures must not be substituted for one another.
Product matching reference
Compare the photo, drawing, and measurable details first

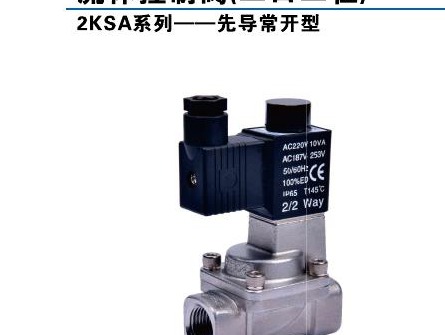

Identify from the photo
- Full 2KSA code or readable label
- Direct-acting 030/050 or pilot-operated 150/200/250/320/400/500 construction
- X high-pressure, H high-pressure, blank standard or L high-flow condition where applicable
- Nominal passage and port
- Coil voltage, DIN or lead connection, PT/G/NPT thread and installed dimensions
Drawing reference
- Confirm whether the installed 2KSA is direct-acting 030/050 or pilot-operated 150 through 500
- Match pressure condition where applicable, nominal passage, port, coil voltage, DIN or lead connection, thread and installed envelope
Key details for matching
Model patterns
- 2KSAH030-06-A
- 2KSAX050-10-B
- 2KSA150-15-A
- 2KSA320-32-B
Reference details
- Product type: Normally open two-port, two-position fluid-control valve
- Published structures: Direct acting 030/050; pilot operated 150–500
- Published direct pressure conditions: X, H, standard blank, L high-flow
- Published protection class: IP65
- Reference pages: PDF pages 1–4
Matching Questions
Can a direct 2KSA030/050 replace a pilot-operated 2KSA150–500 valve?
No. Their operating structure, pressure conditions, code format and installed dimensions differ. Match the complete code and construction before...
