2V is a normally closed two-port, two-position fluid-control valve family. The 2V025 direct-acting form and 2V130/250 pilot-operated forms must be matched by construction, passage and port...

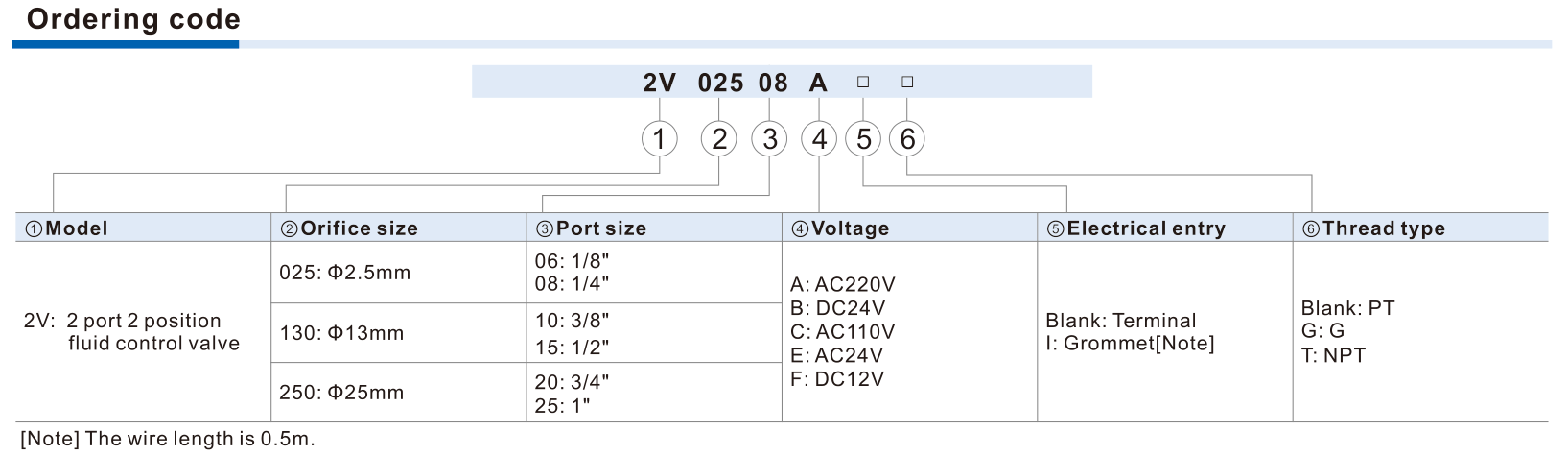

Ordering code matching
Code format
2V [025/130/250] [06/08/10/15/20/25] [A–F] [DIN/lead] [PT/G/NPT]Published 2V code layout2V025-08-A2V130-10-B2V250-25-F| ①Valve construction | ②Passage / port | ③Voltage | ④Connection / thread |
|---|---|---|---|
| 025 direct acting; 130 and 250 internally pilot operated. | 025: Ø2.5 mm with 06/08 ports; 130: Ø13 mm with 10/15; 250: Ø25 mm with 20/25. | A AC220V; B DC24V; C AC110V; E AC24V; F DC12V. | Blank DIN; I lead; blank PT, G G-thread, T NPT. |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
2V025
Direct-acting, Ø2.5 mm passage
2V130 / 2V250
Pilot-operated, Ø13 / Ø25 mm passage

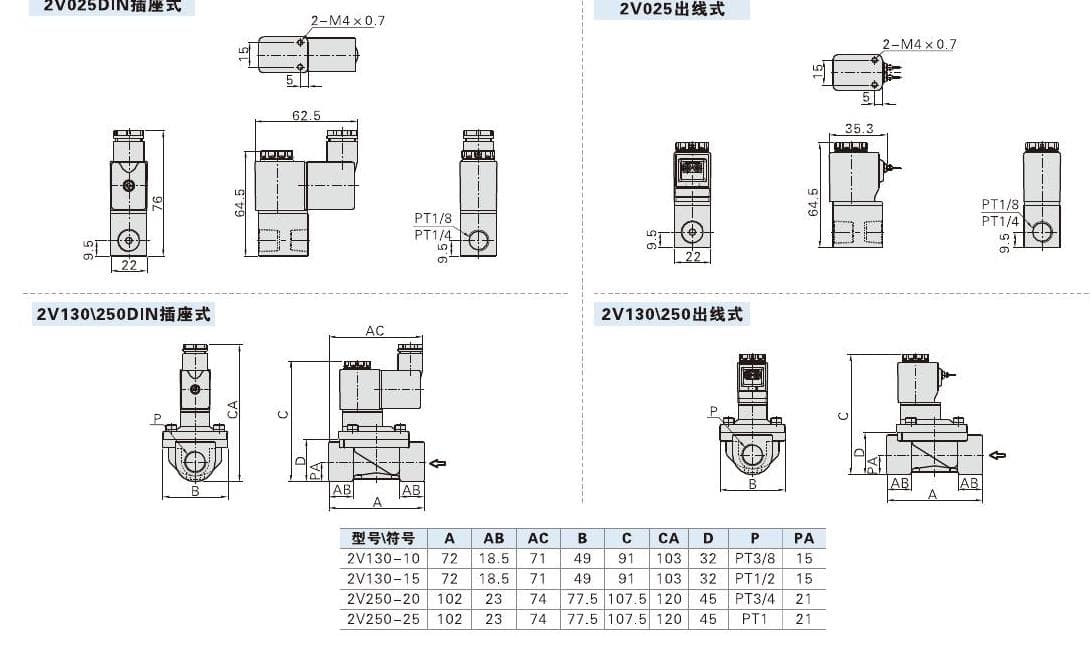

The source groups 2V025, 2V130 and 2V250 as normally closed two-port, two-position valves, but 2V025 is direct acting while 2V130 and 2V250 use internal pilot operation. Keep the construction and installed port together with the full code when replacing a valve.
Product matching reference
No. Although all are normally closed 2V valves, the PDF identifies 2V025 as direct acting and 2V130/250 as pilot operated, with different passage,...
