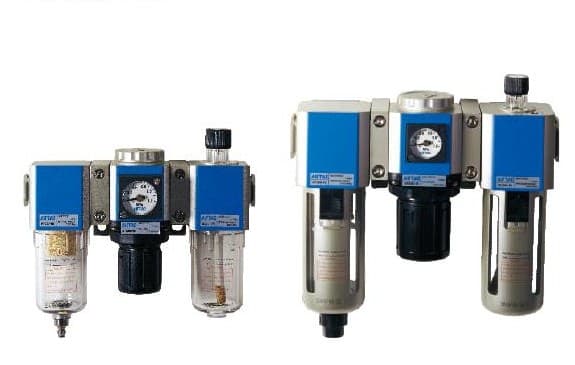

AirTAC GC Three-Part FRL Units
GC is a three-part filter-regulator-lubricator family. Confirm size, port, drain, pressure form, gauge, filtration, thread and check-valve requirement before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
GCG Series Air Preparation
Ordering code matching
Match each code segment

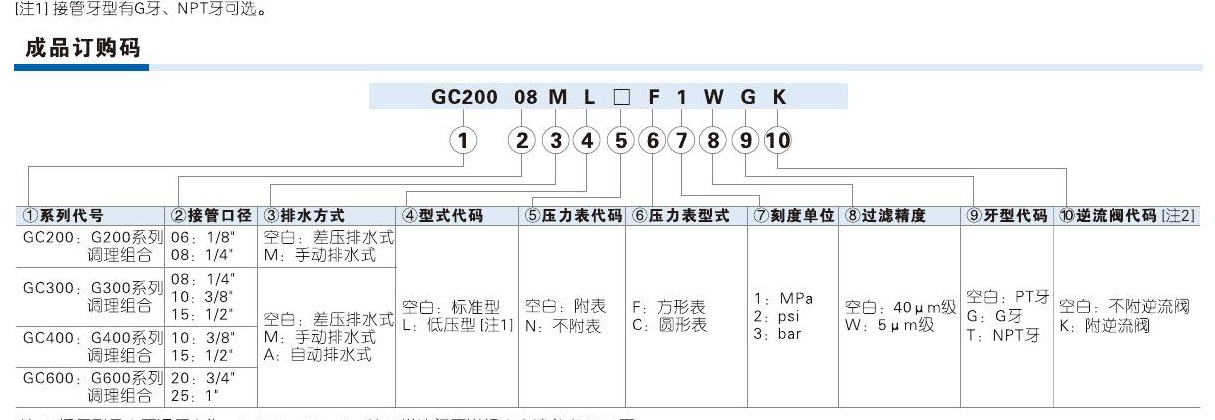

Code format
GC [200/300/400/600] [06/08/10/15/20/25] [drain] [blank/L] [gauge] [shape] [unit] [blank/W] [PT/G/NPT] [blank/K]Published GC code layoutGC200-08ML□F1WGKGC400-15| ①Size / port | ②Drain / pressure | ③Gauge / filtration / thread |
|---|---|---|
| GC200/300/400/600 and published 06–25 port codes. | Blank differential-pressure, M manual or A automatic drain; blank standard or L low-pressure form. | Gauge, F square or C round gauge, 1 MPa/2 psi/3 bar, blank 40 μm or W 5 μm, PT/G/NPT thread and blank/K check-valve choice follow the full code. |
About GC
GC is a modular three-part air-preparation assembly combining a G-series filter, regulator and lubricator. GC200, 300, 400 and 600 identify body sizes. Drain method, standard or L low-pressure form, gauge shape and unit, filtration grade, thread and optional check valve remain code-level matching fields on one canonical page.
Product matching reference
Compare the photo, drawing, and measurable details first

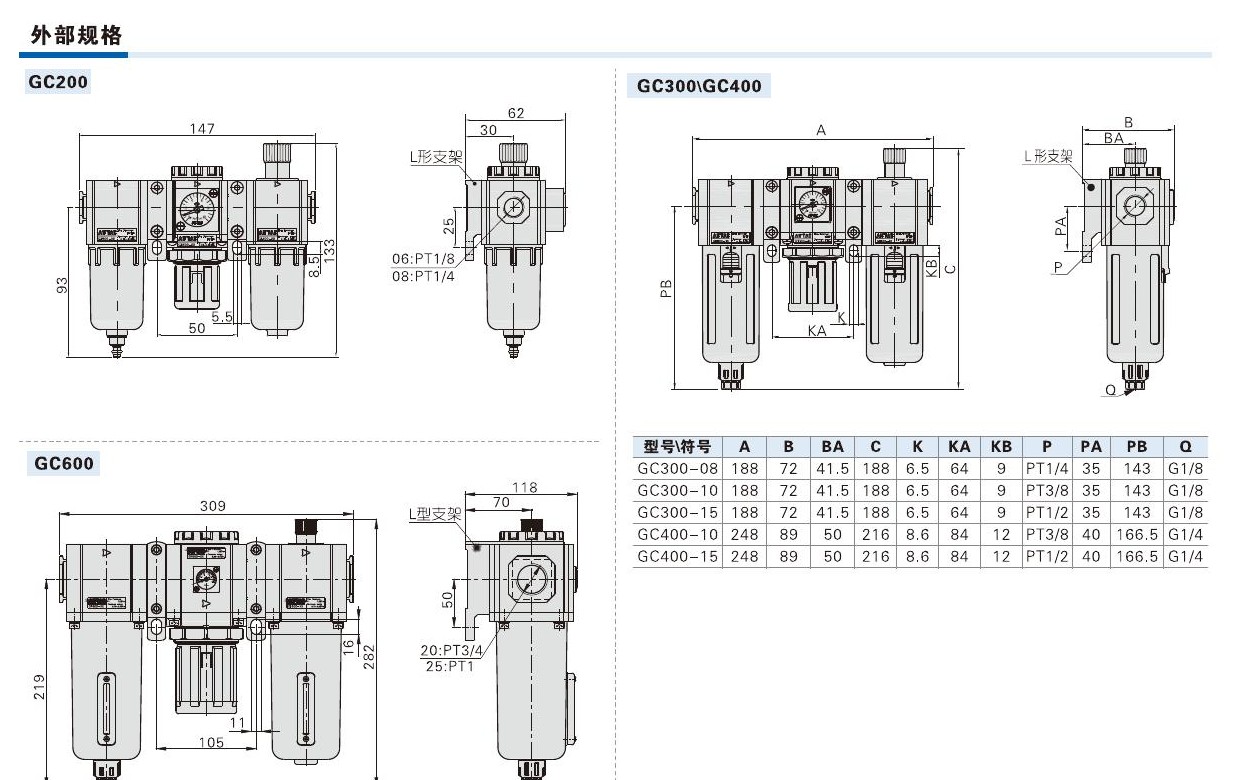

Drawing reference
- Confirm GC200, GC300, GC400 or GC600 three-part FRL family
- Match size, port, drain, pressure form, gauge, filter grade, thread and check-valve choice before RFQ
Key details for matching
Model patterns
- GC200-06
- GC200-08
- GC300-08
- GC300-10

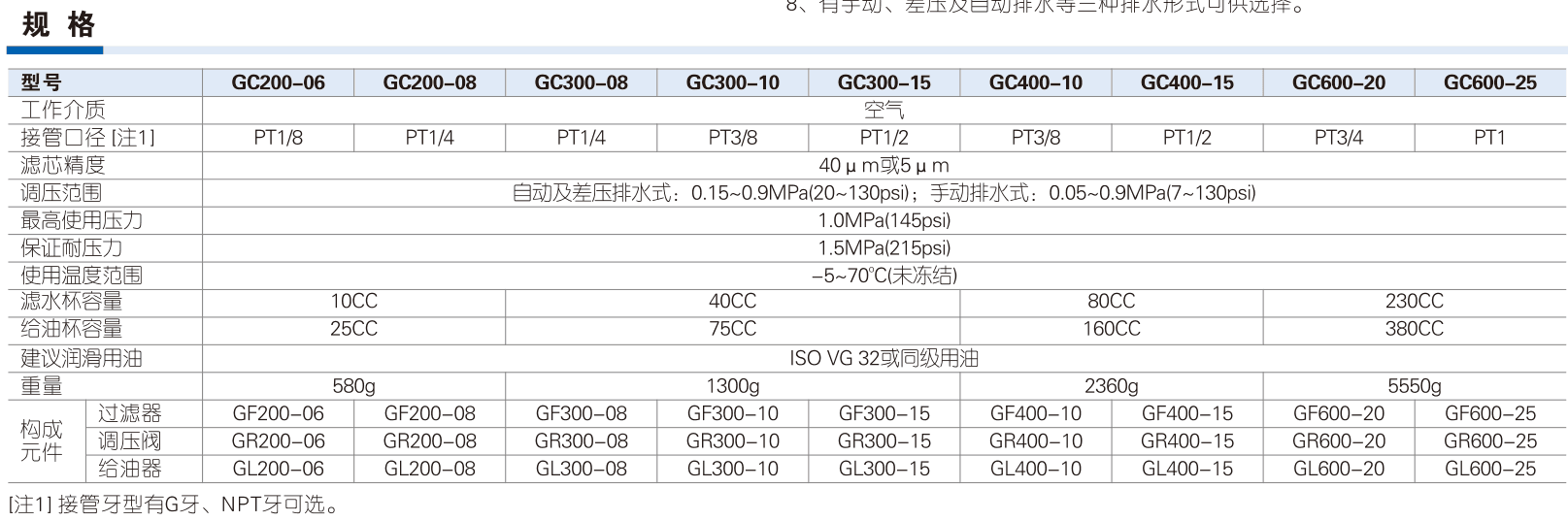

Reference details
- Product type: Three-part filter-regulator-lubricator unit
- Published working medium: Air
- Published pressure range: 0.15–0.9 MPa automatic/differential drain; 0.05–0.9 MPa manual drain
- Published maximum / proof pressure: 1.0 MPa / 1.5 MPa
- Published filter grades: 40 or 5 μm
- Reference pages: PDF pages 1–2
Matching Questions
Can GC be matched by port size alone?
No. Size, drain, pressure form, gauge, filter grade, thread and check-valve choice are published matching fields. Confirm the complete code and...
