Home/Product Series/AirTAC Sourcing/G Series Air Preparation/GFC

AirTAC sourcing reference•G Series Air Preparation

SERIESGFC

AirTAC GFC Two-Unit FRL Combinations

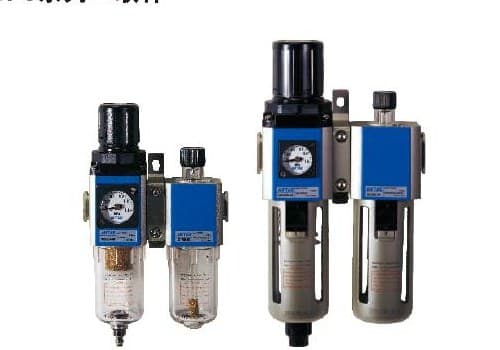

GFC200 two-unit assembly left; GFC600 filter regulator and lubricator assembly right — GFC200 two-unit assembly left; GFC600 two-unit assembly right

Request a Quote WhatsApp Send a Photo — We’ll Help Identify It

G-series combinations of a GFR filter regulator and GL lubricator, with 1/8–1 ports, 40 or 5...

Official reference

Based on manufacturer documentation

Model support

For model confirmation

Parts lists

Code, photo, or BOM

Availability / lead time

By model and quantity

Sourcing route & inquiry details

G-series combinations of a GFR filter regulator and GL lubricator, with 1/8–1 ports, 40 or 5 μm filtration and gauge options. GFC200 has differential-pressure or manual drain; larger bodies also offer automatic drain. Send your model or parts list for a quote.

Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

Request type

AirTAC originalModel matchingChina-source alternative

Find your GFC type

Choose a type; send a model or photo if unsure.

GFC200-06

1/8 · water 10 / oil 25 cm³ · 97 × 161 mm reference

GFC200-08

1/4 · water 10 / oil 25 cm³ · 97 × 161 mm reference

GFC300-08

1/4 · water 40 / oil 75 cm³ · 124 × 225.5 mm reference

GFC300-10

3/8 · water 40 / oil 75 cm³ · 124 × 225.5 mm reference

GFC300-15

1/2 · water 40 / oil 75 cm³ · 124 × 225.5 mm reference

GFC400-10

3/8 · water 80 / oil 160 cm³ · 164 × 270.5 mm reference

GFC400-15

1/2 · water 80 / oil 160 cm³ · 164 × 270.5 mm reference

GFC600-20

3/4 · water 230 / oil 380 cm³ · 204 × 363 mm reference

GFC600-25

1 · water 230 / oil 380 cm³ · 204 × 363 mm reference

Request a Quote Send a Photo — We’ll Help Identify It →

Send the model, quantity and destination. For multiple items, attach a parts list or BOM.

GFC model details

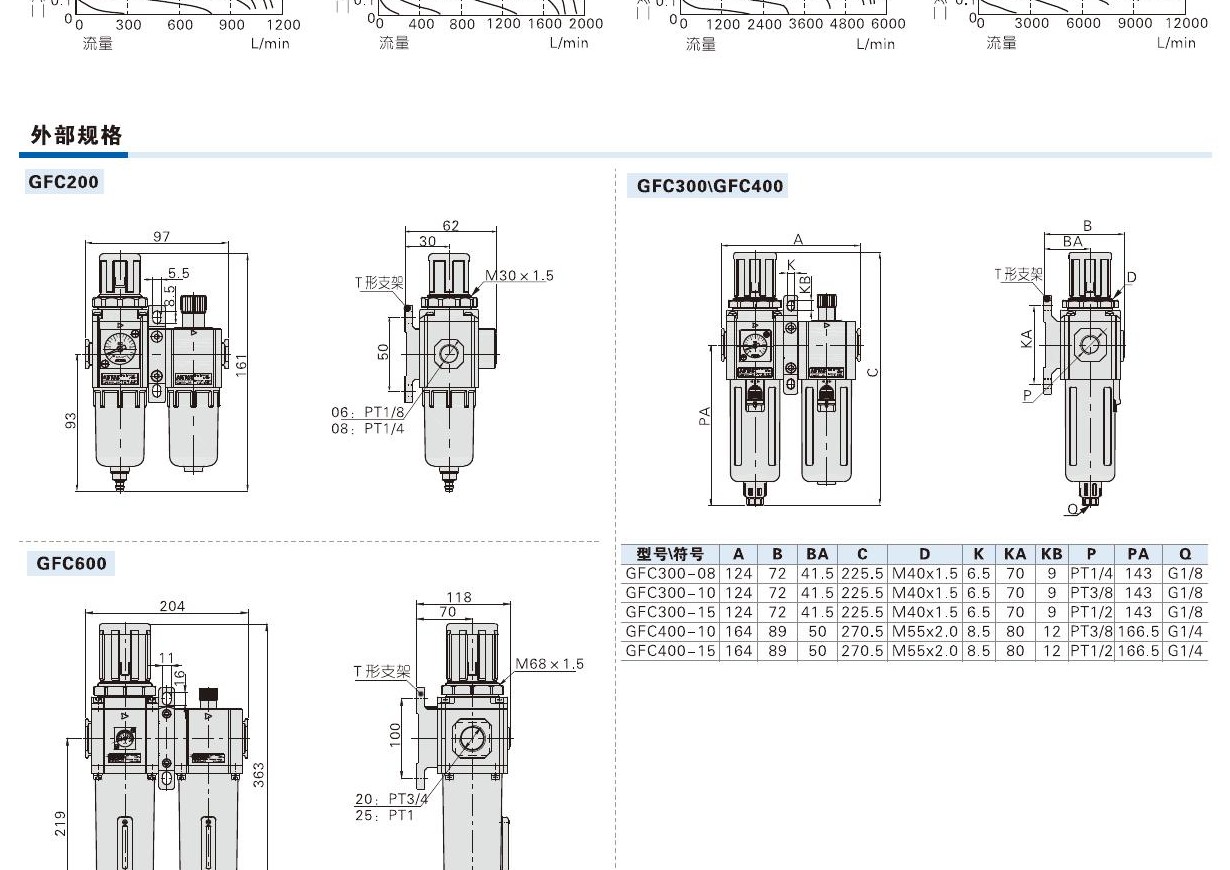

Drawings & dimensions

Installation Drawings & Technical Specifications

Compare installed dimensions

Full View

Technical reference

Click to open full drawing ↗

GFC nine model-port pairs, pressures, water and oil capacities, weights and matching GFR GL components

Helpful for Model Matching:

Full assembly code or label; quantity and destination
Exact body/port and PT/G/NPT thread
GFR filter regulator + GL lubricator of matching body/port
Drain type, standard/L adjustment and separate inlet rating
Gauge shape/scale or N no gauge; K reverse-flow valve
Water/oil capacities, ISO VG32 or equivalent-grade oil
Assembly width/height, mounting, refill and bowl clearance

Compare full assembly width and height, not a single GFR drawing
Confirm matching GFR and GL body/ports, IN/OUT, oil requirement and bowl clearance
GFC flow curves use printed0.7MPa inlet; no single rated-flow value inferred

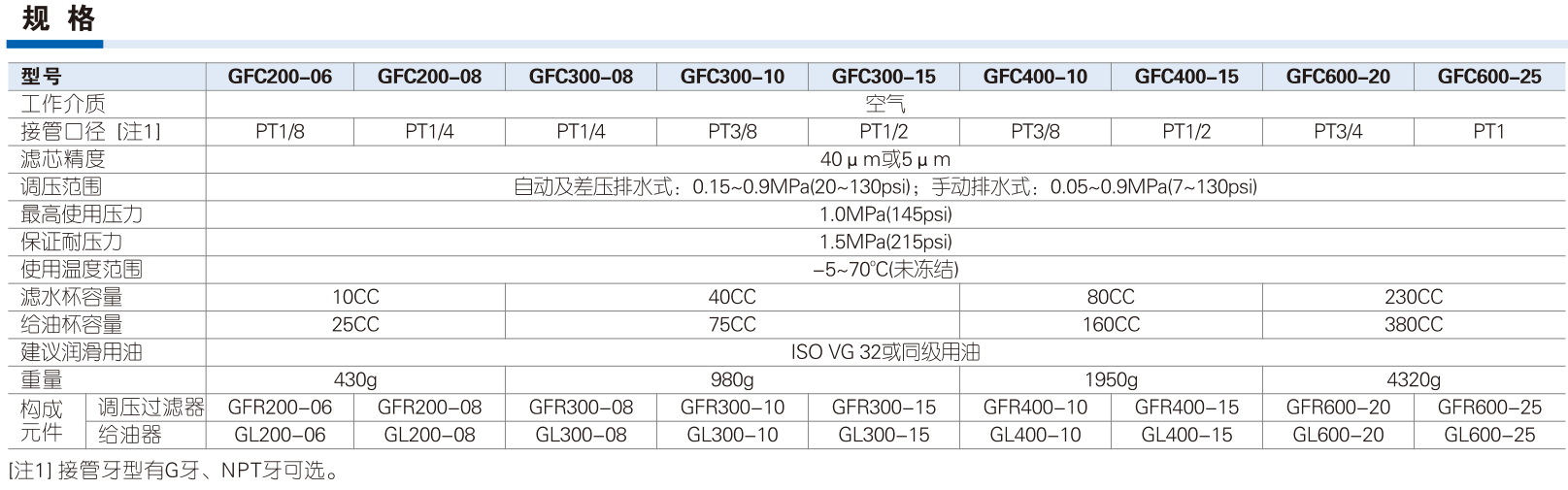

Catalogue Technical Specifications

AirTAC reference data

Working medium	Air / Druckluft
Adjustment, differential / automatic drain	0.15–0.9 MPa
Adjustment, manual drain	0.05–0.9 MPa
Low-pressure option L	Maximum adjustment 0.4 MPa / Maximaler Regeldruck 0.4 MPa
Maximum inlet pressure	1.0 MPa
Proof pressure	1.5 MPa
Temperature	−5–70 °C, non-freezing / frostfrei
Filter grade	40 μm; W: 5 μm
Main-port range	1/8–1; PT, G, NPT
Flow-curve inlet condition	0.7 MPa; model-specific curves / baugrößenspezifische Kurven
Function	Filtration, pressure regulation and lubrication / Filtration, Druckregelung und Schmierung
Components	GFR filter regulator + connecting bracket + GL lubricator / GFR-Filterregler + Verbindungshalterung + GL-Öler
Water / oil capacity	GFC200: 10/25 cm³; GFC300: 40/75 cm³; GFC400: 80/160 cm³; GFC600: 230/380 cm³
Recommended oil	ISO VG32 or equivalent grade / gleichwertige Qualität
Weight by body	GFC200: 430 g; GFC300: 980 g; GFC400: 1950 g; GFC600: 4320 g
Reference width × height	GFC200: 97 × 161 mm; GFC300: 124 × 225.5 mm; GFC400: 164 × 270.5 mm; GFC600: 204 × 363 mm

Common Model Codes & Configurations:Useful for an RFQ

GFCGFC200GFC300GFC400

Send the model code, quantity and destination, or attach a parts list.

WhatsApp Quote BOM

Technical reference & selection notes

Ordering Codes, Fit Verification & Specifications

Specifications, installation dimensions, and ordering-code notes.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

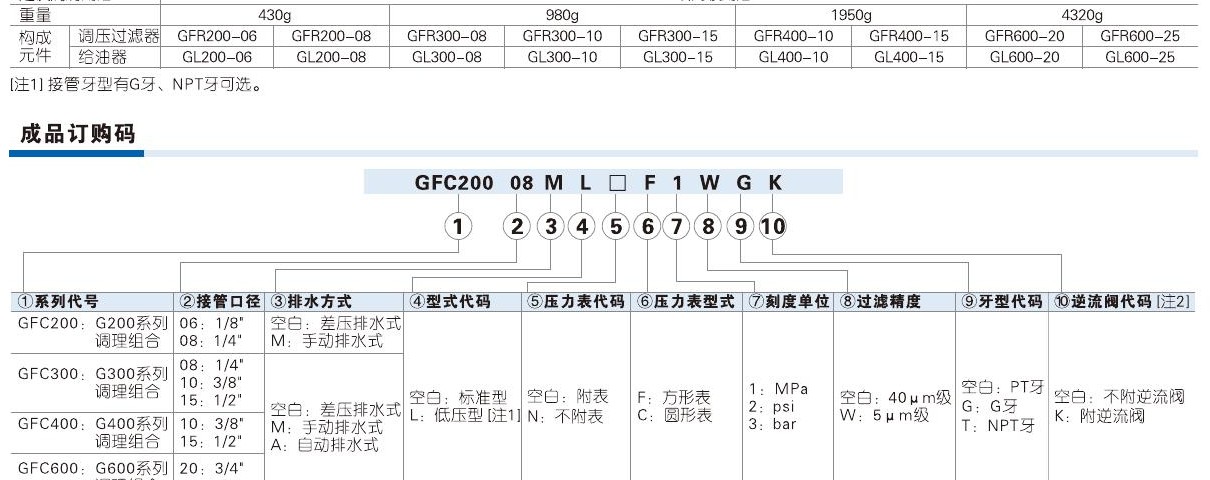

GFC[body]-[port][blank/M/A][blank/L][N or F/C+1/2/3][blank/W][blank/G/T][blank/K]Ten fields; no separate J bracket option. A only for GFC300/400/600.

GFC200-08MC3WGGFC300-15ALF1WTKGFC400-10NGFC600-25F2T

①–②Body and main port	③–④Drain and pressure	⑤–⑦Gauge, shape and scale	⑧–⑩Filter, thread and reverse flow
GFC200: 06 1/8, 08 1/4; GFC300: 08 1/4, 10 3/8, 15 1/2; GFC400: 10 3/8, 15 1/2; GFC600: 20 3/4, 25 1. Use a published pair.	Blank differential-pressure drain; M manual; A automatic only for GFC300/400/600. Blank standard; L low-pressure maximum adjustment 0.4 MPa. No separate bracket-code field.	Blank includes gauge; N no gauge. F square or C round gauge; 1 MPa, 2 psi or 3 bar. A complete gauge code includes shape and scale. The catalogue states no scale/thread restriction.	Blank 40 μm; W 5 μm. Blank PT; G G-thread; T NPT. Blank no reverse-flow valve; K with reverse-flow valve. No bowl-material suffix.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

GFC200-08MC3WG

Body and main portBody and main port

GFC200: 06 1/8, 08 1/4; GFC300: 08 1/4, 10 3/8, 15 1/2; GFC400: 10 3/8, 15 1/2; GFC600: 20 3/4, 25 1. Use a published pair.

Drain and pressureDrain and pressure

Blank differential-pressure drain; M manual; A automatic only for GFC300/400/600. Blank standard; L low-pressure maximum adjustment 0.4 MPa. No separate bracket-code field.

Gauge, shape and scaleGauge, shape and scale

Blank includes gauge; N no gauge. F square or C round gauge; 1 MPa, 2 psi or 3 bar. A complete gauge code includes shape and scale. The catalogue states no scale/thread restriction.

Filter, thread and reverse flowFilter, thread and reverse flow

Blank 40 μm; W 5 μm. Blank PT; G G-thread; T NPT. Blank no reverse-flow valve; K with reverse-flow valve. No bowl-material suffix.

Matching Questions

Is GFC a filter regulator only?

GFC is a two-unit assembly: a GFR filter regulator plus a GL lubricator connected by a bracket. It adds oil lubrication. Compare assembly width, water and oil capacities, refill access and the downstream oil requirement when replacing a single GFR.

Can GFC200 use automatic drain or a J bracket suffix?

The GFC ordering chart lists differential-pressure and manual drain for GFC200; automatic A is listed only for GFC300/400/600. The assembly code has no separate J bracket field. Send unlisted or incomplete codes as written for help.

GFC

Include this series in a project RFQ

GFC Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quote WhatsApp Send a parts list or BOM

Confirm inspection requirements before quotationSpecify shipping preferenceConfirm timing in the quotationOcean & Rail Available

COMPANION PRODUCTS

Products to use together

Build your pneumatic circuit with complementary components. Confirm dimensions and operating conditions before selecting a combination.

Connect the air line

Product-group reference image

PneuPart tube fittings

Connect tubing to a valve or actuator. Match tube outside diameter, port thread and seal type.

View companion product

Route the air supply

Product-group reference image

PneuPart pneumatic tubing

Run air lines between fittings and components. Confirm outside diameter, bend radius, pressure and temperature.

View companion product

Control air direction

Product-group reference image

Directional control valves

Switch the pneumatic circuit. Select the valve function, flow capacity, port size and control signal for the application.

View companion product

Planning a Complete Circuit or Multi-Item BOM?

Send your parts list, connection sizes and operating conditions for a matching check and combined quotation.

Submit Multi-Item Circuit RFQ

①–②Body and main port

③–④Drain and pressure

⑤–⑦Gauge, shape and scale

⑧–⑩Filter, thread and reverse flow

GFC200: 06 1/8, 08 1/4; GFC300: 08 1/4, 10 3/8, 15 1/2; GFC400: 10 3/8, 15 1/2; GFC600: 20 3/4, 25 1. Use a published pair.

Blank differential-pressure drain; M manual; A automatic only for GFC300/400/600. Blank standard; L low-pressure maximum adjustment 0.4 MPa. No separate bracket-code field.

Blank includes gauge; N no gauge. F square or C round gauge; 1 MPa, 2 psi or 3 bar. A complete gauge code includes shape and scale. The catalogue states no scale/thread restriction.

Blank 40 μm; W 5 μm. Blank PT; G G-thread; T NPT. Blank no reverse-flow valve; K with reverse-flow valve. No bowl-material suffix.

Matching Questions

BOM Parts List RFQ

Photo & Label Matching

BOM Parts List RFQ

Photo & Label Matching

AirTAC GFC Two-Unit FRL Combinations

Find your GFC type

GFC model details
