Identify from the photo
- Complete GFR code or clear installed unit photo
- GFR200, GFR300, GFR400 or GFR600 body size
- Port, drain and standard/L pressure form
- Bracket, gauge shape/unit and 40/5 μm grade
- PT/G/NPT thread and check-valve requirement
AirTAC GFR Filter-Regulators
GFR is an integrated G-series filter-regulator family. Confirm size, port, drain, pressure form, gauge, filtration, thread and check-valve requirement before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
GFRG Series Air Preparation

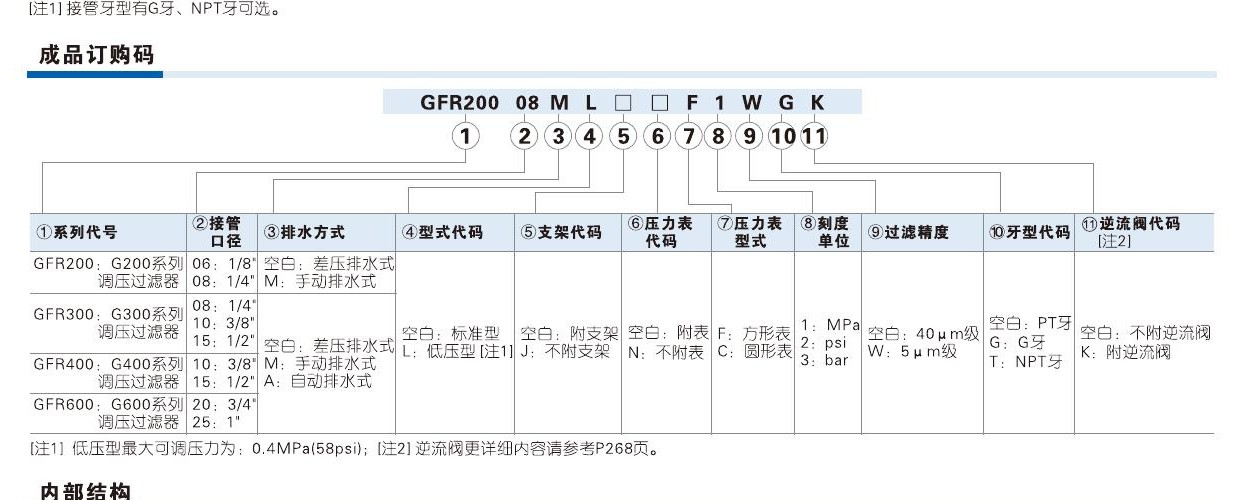

Ordering code matching
Match each code segment
Code format
GFR [200/300/400/600] [06/08/10/15/20/25] [drain] [blank/L] [bracket] [gauge] [shape] [unit] [blank/W] [PT/G/NPT] [blank/K]Published GFR code layoutGFR200-08ML□□F1WGKGFR400-15| ①Size / port | ②Drain / pressure / bracket | ③Gauge / filtration / thread |
|---|---|---|
| GFR200/300/400/600 and published 06–25 port codes. | Blank differential-pressure, M manual or A automatic drain; blank standard or L low-pressure; blank with bracket or J without. | Gauge, F square or C round form, 1 MPa/2 psi/3 bar, blank 40 μm or W 5 μm, PT/G/NPT thread and blank/K check-valve choice follow the full code. |
About GFR
GFR integrates filtration and pressure regulation in one G-series body. GFR200, 300, 400 and 600 identify body sizes. Drain method, standard or L low-pressure form, bracket, gauge shape and unit, 40 or 5 μm grade, thread and optional check valve remain code-level matching fields on one canonical page.
Product matching reference
Compare the photo, drawing, and measurable details first

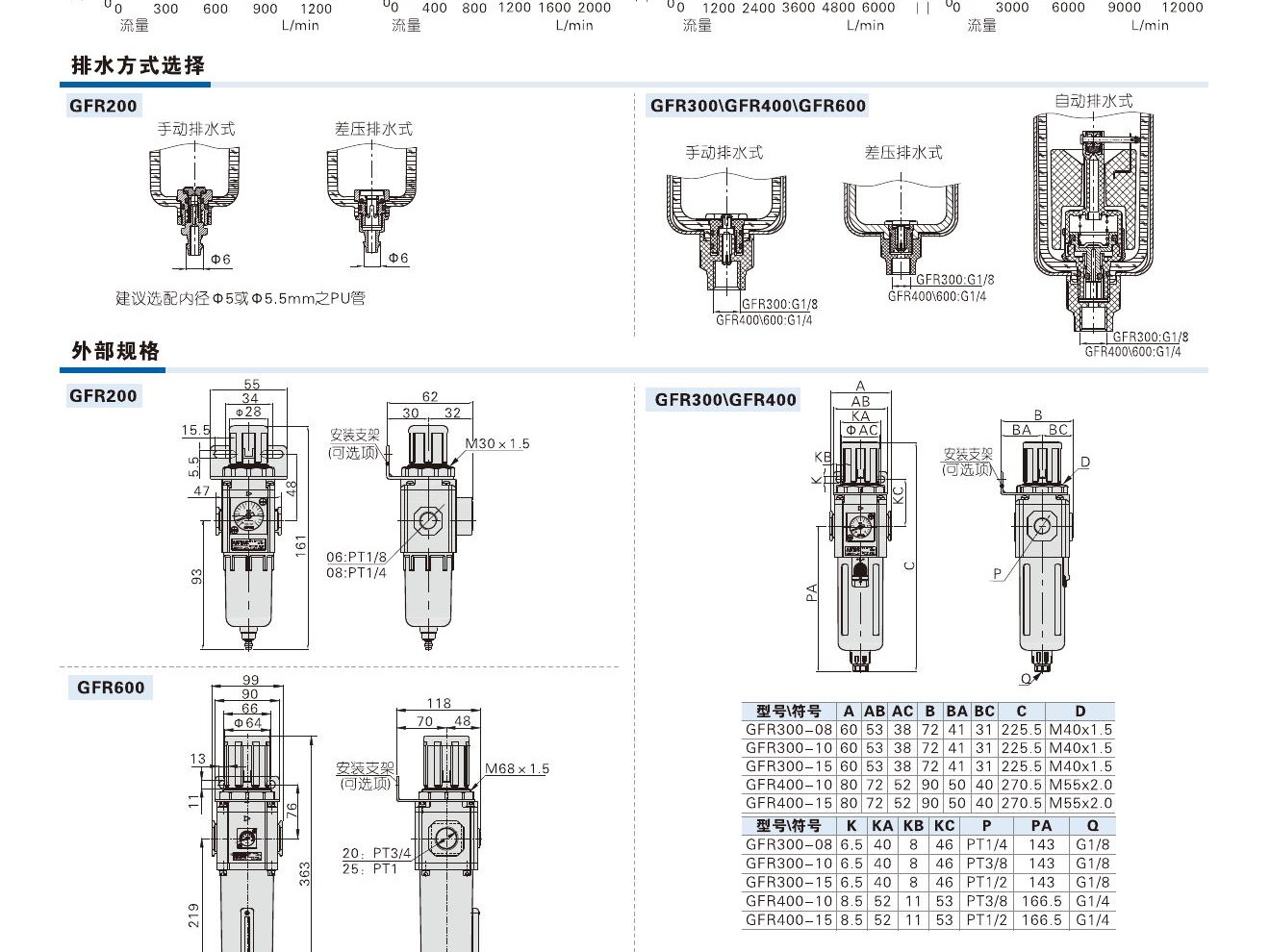

Drawing reference
- Confirm GFR200, GFR300, GFR400 or GFR600 filter-regulator family
- Match size, port, drain, pressure form, bracket, gauge, filtration, thread and check-valve choice before RFQ
Key details for matching
Model patterns
- GFR200-06
- GFR200-08
- GFR300-08
- GFR300-10
Reference details
- Product type: Integrated filter-regulator
- Published working medium: Air
- Published pressure range: 0.15–0.9 MPa automatic/differential drain; 0.05–0.9 MPa manual drain
- Published maximum / proof pressure: 1.0 MPa / 1.5 MPa
- Published filter grades: 40 or 5 μm
- Reference pages: PDF pages 1–2
Matching Questions
Can GFR be matched by port size alone?
No. Size, drain, pressure form, gauge, filtration, thread and check-valve choice also affect the match. Confirm the complete code before RFQ.
GFR
Include this series in a project RFQ
GFR Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
