SERIESGFR

AirTAC GFR Filter Regulators

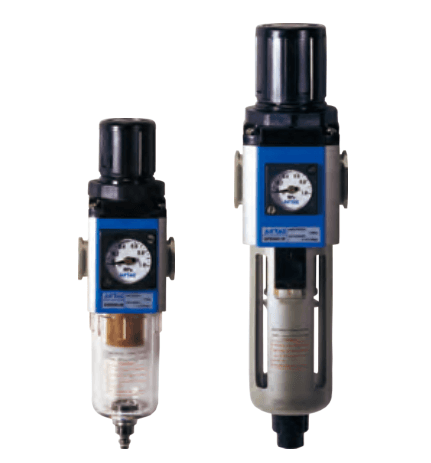

GFR200 compact filter regulator left; GFR600 large aluminium-bowl filter regulator right — GFR200 filter regulator left; GFR600 with aluminium bowl right

Request a Quote WhatsApp Send a Photo — We’ll Help Identify It

G-series filter regulators with 1/8–1 ports, 40 or 5 μm filtration, gauge options and an...

Official reference

Based on manufacturer documentation

Model support

For model confirmation

Parts lists

Code, photo, or BOM

Availability / lead time

By model and quantity

Sourcing route & inquiry details

G-series filter regulators with 1/8–1 ports, 40 or 5 μm filtration, gauge options and an optional reverse-flow valve. GFR200 uses differential-pressure or manual drain; larger bodies also offer automatic drain. Send your model or parts list for a quote.

Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

Request type

AirTAC originalModel matchingChina-source alternative

Find your GFR type

Choose a type; send a model or photo if unsure.

GFR200-06

1/8 · 10 cm³ · 161 mm reference height

GFR200-08

1/4 · 10 cm³ · 161 mm reference height

GFR300-08

1/4 · 40 cm³ · 225.5 mm reference height

GFR300-10

3/8 · 40 cm³ · 225.5 mm reference height

GFR300-15

1/2 · 40 cm³ · 225.5 mm reference height

GFR400-10

3/8 · 80 cm³ · 270.5 mm reference height

GFR400-15

1/2 · 80 cm³ · 270.5 mm reference height

GFR600-20

3/4 · 230 cm³ · 363 mm reference height

GFR600-25

1 · 230 cm³ · 363 mm reference height

Request a Quote Send a Photo — We’ll Help Identify It →

Send the model, quantity and destination. For multiple items, attach a parts list or BOM.

GFR model details

Drawings & dimensions

Installation Drawings & Technical Specifications

Compare installed dimensions

Full View

Technical reference

Click to open full drawing ↗

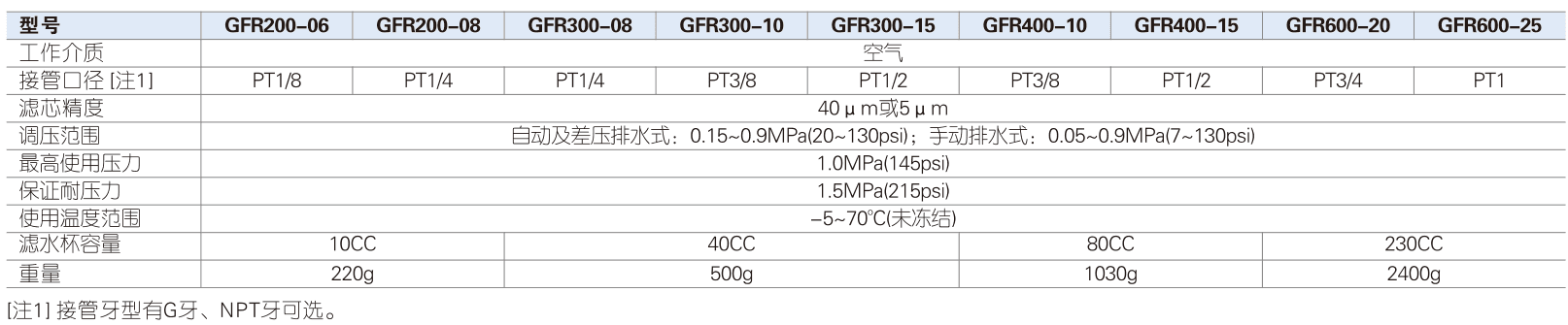

GFR nine body/port combinations, adjustment ranges, inlet pressure, bowl capacities and weights

Helpful for Model Matching:

Full model or installed label; quantity and destination
Published body/port pair and PT/G/NPT thread
Drain type; GFR200 has no published automatic option
Standard or L low-pressure adjustment; inlet pressure separately
F square / C round gauge with scale, or N without gauge
40/5 μm filter, bracket and K reverse-flow valve
IN/OUT arrows, installation dimensions and bowl clearance

Use the exact GFR body/port installation drawing and distinguish drain outlet from main port
Compare gauge mounting, IN/OUT direction and bowl service clearance
Use GFR flow curves at their printed 0.7 MPa inlet condition; no single rated flow inferred

Catalogue Technical Specifications

AirTAC reference data

Function	Filtration and pressure regulation / Filtration und Druckregelung
Working medium	Air / Druckluft
Adjustment, differential / automatic drain	0.15–0.9 MPa
Adjustment, manual drain	0.05–0.9 MPa
Low-pressure option L	Maximum adjustment 0.4 MPa / Maximaler Regeldruck 0.4 MPa
Maximum inlet pressure	1.0 MPa
Proof pressure	1.5 MPa
Temperature	−5–70 °C, non-freezing / frostfrei
Filter grade	40 μm; W: 5 μm
Bowl capacity	GFR200: 10 cm³; GFR300: 40 cm³; GFR400: 80 cm³; GFR600: 230 cm³
Weight by body	GFR200: 220 g; GFR300: 500 g; GFR400: 1030 g; GFR600: 2400 g
Reference overall height	GFR200: 161 mm; GFR300: 225.5 mm; GFR400: 270.5 mm; GFR600: 363 mm
Bowl material	GFR200/300/400: PC; GFR600: aluminium alloy / Aluminiumlegierung
Main-port range	1/8–1; PT, G, NPT
Flow-curve inlet condition	0.7 MPa; model-specific curves / baugrößenspezifische Kurven

Common Model Codes & Configurations:Useful for an RFQ

GFRGFR200GFR300GFR400

Send the model code, quantity and destination, or attach a parts list.

WhatsApp Quote BOM

Technical reference & selection notes

Ordering Codes, Fit Verification & Specifications

Specifications, installation dimensions, and ordering-code notes.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

GFR[body]-[port][blank/M/A][blank/L][blank/J][N or F/C+1/2/3][blank/W][blank/G/T][blank/K]A automatic only for GFR300/400/600; gauge codes need shape and scale

GFR200-08MC3WGGFR300-15ALJF1WTKGFR400-10NGFR600-25F2T

①–②Body and main port	③–⑤Drain, pressure and bracket	⑥–⑧Gauge, shape and scale	⑨–⑪Filter, thread and reverse flow
GFR200: 06 1/8, 08 1/4; GFR300: 08 1/4, 10 3/8, 15 1/2; GFR400: 10 3/8, 15 1/2; GFR600: 20 3/4, 25 1. Use a published pair.	Blank differential-pressure drain; M manual; A automatic only for GFR300/400/600. Blank standard pressure; L low-pressure with 0.4 MPa maximum adjustment. Blank with bracket; J without.	Blank includes gauge; N no gauge. F square or C round gauge; 1 MPa, 2 psi or 3 bar. A complete gauge code includes shape and scale. The catalogue states no scale/thread restriction.	Blank 40 μm; W 5 μm. Blank PT; G G-thread; T NPT. Blank no reverse-flow valve; K with reverse-flow valve. No bowl-material suffix.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

GFR200-08MC3WG

Body and main portBody and main port

GFR200: 06 1/8, 08 1/4; GFR300: 08 1/4, 10 3/8, 15 1/2; GFR400: 10 3/8, 15 1/2; GFR600: 20 3/4, 25 1. Use a published pair.

Drain, pressure and bracketDrain, pressure and bracket

Blank differential-pressure drain; M manual; A automatic only for GFR300/400/600. Blank standard pressure; L low-pressure with 0.4 MPa maximum adjustment. Blank with bracket; J without.

Gauge, shape and scaleGauge, shape and scale

Blank includes gauge; N no gauge. F square or C round gauge; 1 MPa, 2 psi or 3 bar. A complete gauge code includes shape and scale. The catalogue states no scale/thread restriction.

Filter, thread and reverse flowFilter, thread and reverse flow

Blank 40 μm; W 5 μm. Blank PT; G G-thread; T NPT. Blank no reverse-flow valve; K with reverse-flow valve. No bowl-material suffix.

Matching Questions

Can GFR200-08 and GFR300-08 replace each other because both have 1/4 ports?

A shared main port does not establish fit. GFR200 has a 10 cm³ bowl and 161 mm reference height; GFR300 has 40 cm³ and 225.5 mm. GFR300 offers automatic drain, while GFR200 does not list it. Compare drain, gauge, reverse-flow option, mounting and clearance using the installed label and photo.

Is the 1.0 MPa inlet rating the adjustable outlet-pressure range?

No. Standard adjustment is 0.15–0.9 MPa for differential-pressure or automatic drain, and 0.05–0.9 MPa for manual drain. L limits maximum adjustment to 0.4 MPa. The 1.0 MPa rating is maximum inlet pressure; 1.5 MPa is proof pressure.
