Home/Product Series/AirTAC Sourcing/G Series Air Preparation/GL
AirTAC sourcing reference•G Series Air Preparation
SERIESGL

AirTAC GL Air Lubricators

GL200 compact lubricator left; GL600 large aluminium-bowl lubricator right
GL200 compact lubricator left; GL600 aluminium-bowl lubricator right
Request a QuoteWhatsAppSend a Photo — We’ll Help Identify It

G-series air lubricators with 1/8–1 ports and oil bowls from 25 to 380 cm³. Recommended...

Official reference

Based on manufacturer documentation

Model support

For model confirmation

Parts lists

Code, photo, or BOM

Availability / lead time

By model and quantity

Sourcing route & inquiry details

G-series air lubricators with 1/8–1 ports and oil bowls from 25 to 380 cm³. Recommended lubricant is ISO VG32 or equivalent grade. Select body, port, bracket and thread; send your model or parts list for a quote.

Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

Request type
AirTAC originalModel matchingChina-source alternative

Find your GL type

Choose a type; send a model or photo if unsure.

GL200-06

1/8 · 25 cm³ · 119 mm reference height

GL200-08

1/4 · 25 cm³ · 119 mm reference height

GL300-08

1/4 · 75 cm³ · 169 mm reference height

GL300-10

3/8 · 75 cm³ · 169 mm reference height

GL300-15

1/2 · 75 cm³ · 169 mm reference height

GL400-10

3/8 · 160 cm³ · 190 mm reference height

GL400-15

1/2 · 160 cm³ · 190 mm reference height

GL600-20

3/4 · 380 cm³ · 256 mm reference height

GL600-25

1 · 380 cm³ · 256 mm reference height

Request a QuoteSend a Photo — We’ll Help Identify It →

Send the model, quantity and destination. For multiple items, attach a parts list or BOM.

GL model details

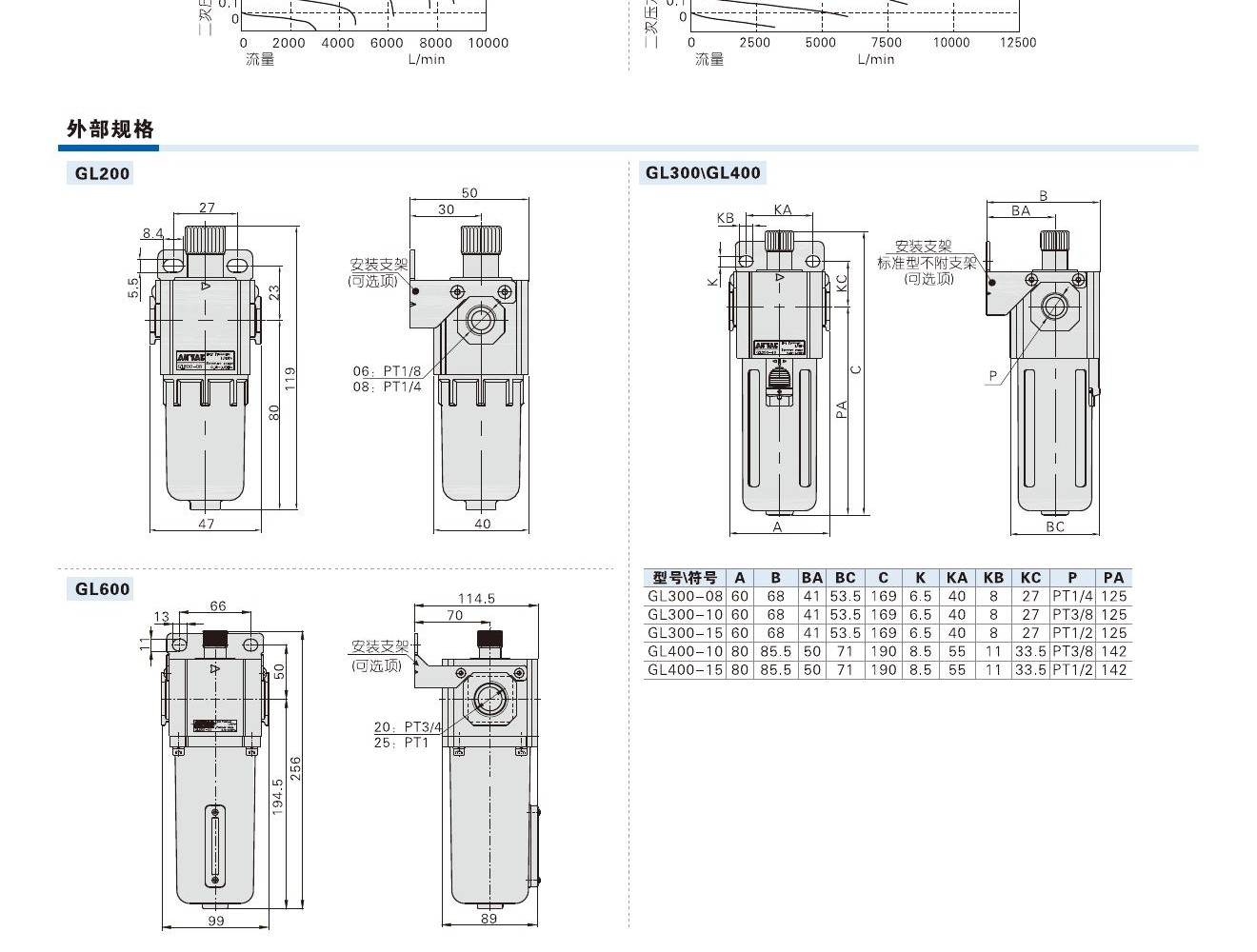

Drawings & dimensions

Installation Drawings & Technical Specifications

Compare installed dimensions
Full View
GL nine body/port combinations, working pressure, recommended ISO VG32 oil, capacities and weightsClick to open full drawing ↗

GL nine body/port combinations, working pressure, recommended ISO VG32 oil, capacities and weights

Helpful for Model Matching:

  • Full model or installed label; quantity and destination
  • Published body/port pair and PT/G/NPT thread
  • With bracket or J without bracket (standard configuration)
  • ISO VG32 or equivalent oil and downstream lubrication requirement
  • Oil capacity, PC/aluminium bowl and refill access
  • Working pressure, non-freezing temperature and IN/OUT direction
  • Exact installation drawing; no filter or regulator option applies
  • Use exact GL body/port drawing and IN/OUT direction
  • Compare mounting, refill access and oil-bowl clearance
  • The GL curves do not state the inlet condition; confirm the inlet pressure for the intended application. GR/GFR inlet conditions do not apply.

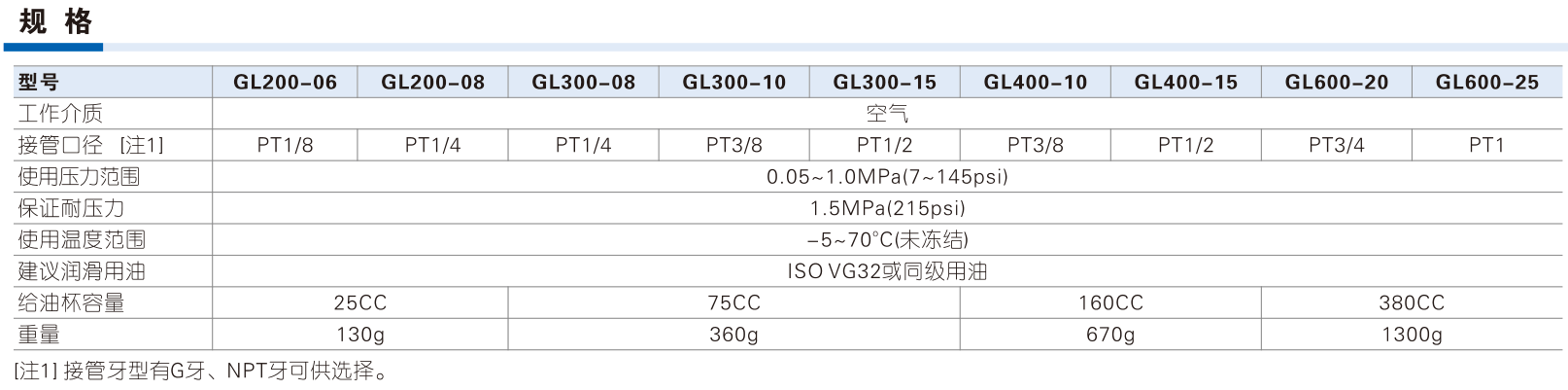

Catalogue Technical Specifications

AirTAC reference data
FunctionCompressed-air lubrication / Druckluftschmierung
Working mediumAir / Druckluft
Working pressure0.05–1.0 MPa
Proof pressure1.5 MPa
Temperature−5–70 °C, non-freezing / frostfrei
Recommended lubricantISO VG32 or equivalent grade / ISO VG32 oder gleichwertige Qualität
Oil-bowl capacityGL200: 25 cm³; GL300: 75 cm³; GL400: 160 cm³; GL600: 380 cm³
Weight by bodyGL200: 130 g; GL300: 360 g; GL400: 670 g; GL600: 1300 g
Reference overall heightGL200: 119 mm; GL300: 169 mm; GL400: 190 mm; GL600: 256 mm
Bowl materialGL200/300/400: PC; GL600: aluminium alloy / Aluminiumlegierung
Main-port range1/8–1; PT, G, NPT
Common Model Codes & Configurations:Useful for an RFQ
GLGL200GL300GL400

Send the model code, quantity and destination, or attach a parts list.

WhatsAppQuote BOM
Technical reference & selection notes

Ordering Codes, Fit Verification & Specifications

Specifications, installation dimensions, and ordering-code notes.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

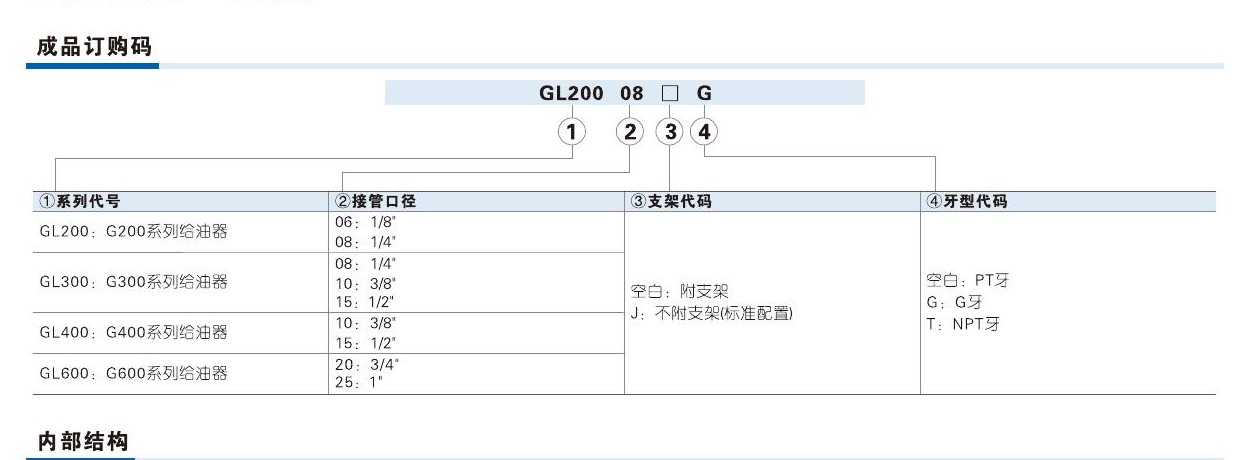

Code format

GL[200/300/400/600]-[published port][blank/J][blank/G/T]Only four fields; J without bracket is the standard configuration
GL200-08JGGL300-15JTGL400-10GL600-25J
①–②Body and main port③Bracket④Thread
GL200: 06 1/8, 08 1/4; GL300: 08 1/4, 10 3/8, 15 1/2; GL400: 10 3/8, 15 1/2; GL600: 20 3/4, 25 1. Use a published pair.Blank with bracket; J without bracket, explicitly marked as the standard configuration.Blank PT; G G-thread; T NPT. No drain, filter-grade, regulator, gauge, reverse-flow or bowl-material code.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

GL200-08JG

Body and main portBody and main port

GL200: 06 1/8, 08 1/4; GL300: 08 1/4, 10 3/8, 15 1/2; GL400: 10 3/8, 15 1/2; GL600: 20 3/4, 25 1. Use a published pair.

BracketBracket

Blank with bracket; J without bracket, explicitly marked as the standard configuration.

ThreadThread

Blank PT; G G-thread; T NPT. No drain, filter-grade, regulator, gauge, reverse-flow or bowl-material code.

About GL

GL supplies oil mist to compressed air without filtration or pressure regulation. Nine published body/port combinations cover GL200/300/400/600. Working pressure is 0.05–1.0 MPa, with ISO VG32 or equivalent-grade oil recommended. Oil-bowl capacity increases from 25 to 380 cm³; GL600 uses an aluminium-alloy bowl, while the smaller bodies use PC. J without bracket is marked as the standard configuration; blank includes a bracket. Compare IN/OUT direction, oil requirements, installation dimensions and refill access for replacement work.

Matching Questions

Can GL200-08 and GL300-08 replace each other because both have 1/4 ports?

A shared main port does not establish fit. GL200 has a 25 cm³ bowl and 119 mm reference height; GL300 has 75 cm³ and 169 mm. Compare oil capacity, bracket, refill access and installation dimensions using the installed label and photo.

Does GL include a filter or pressure regulator?

GL is an air lubricator only. It has no filter-grade, drain or pressure-regulation code. Check that the downstream equipment requires oil lubrication and use the recommended ISO VG32 or equivalent-grade oil.

GL

Include this series in a project RFQ

GL Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quoteWhatsAppSend a parts list or BOM
Confirm inspection requirements before quotation•Specify shipping preference•Confirm timing in the quotation•Ocean & Rail Available
