Identify from the photo
- Complete GR code or clear installed regulator photo
- GR200, GR300, GR400 or GR600 body size
- Port and panel or bracket mounting
- Standard or L low-pressure form
- Gauge shape/unit, PT/G/NPT thread and check-valve requirement
AirTAC GR Pressure Regulators
GR is a G-series pneumatic pressure-regulator family. Confirm size, port, pressure form, mounting, gauge, thread and check-valve requirement before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
GRG Series Air Preparation

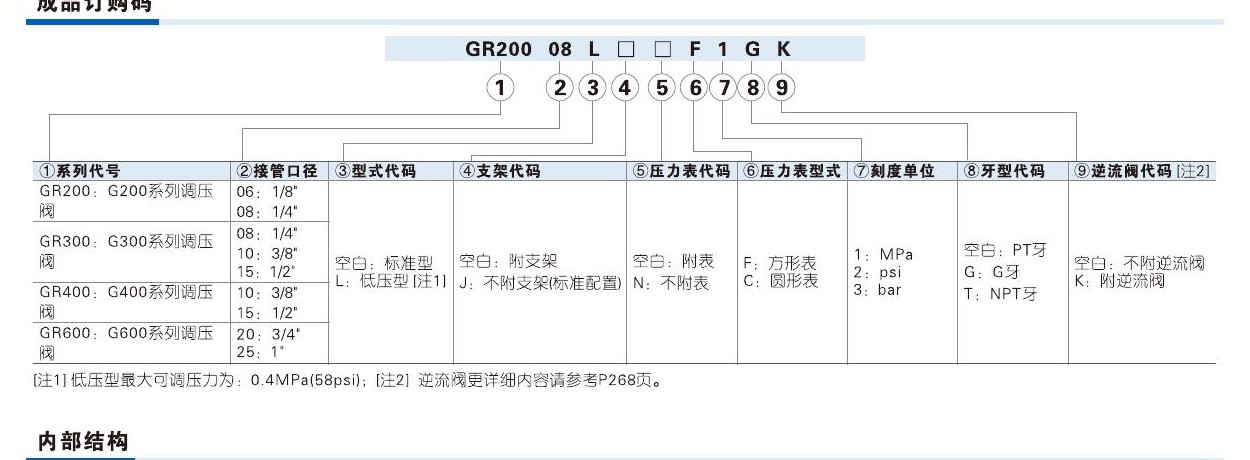

Ordering code matching
Match each code segment
Code format
GR [200/300/400/600] [06/08/10/15/20/25] [blank/L] [mounting] [bracket] [gauge] [shape] [unit] [PT/G/NPT] [blank/K]Published GR code layoutGR200-08L□F1GKGR400-15| ①Size / port | ②Pressure form / mounting | ③Gauge / thread / check valve |
|---|---|---|
| GR200/300/400/600 and published 06–25 port codes. | Blank standard or L low-pressure; match panel or bracket installation and bracket choice. | Gauge, F square or C round form, 1 MPa/2 psi/3 bar, PT/G/NPT thread and blank/K check-valve choice follow the full code. |
About GR
GR is a G-series pressure-regulator family with a published push-to-lock adjustment mechanism and balanced regulating design. GR200, 300, 400 and 600 identify body sizes. Standard or L low-pressure form, panel or bracket mounting, gauge shape and unit, PT/G/NPT thread and optional check valve remain code-level matching fields on one canonical page.
Product matching reference
Compare the photo, drawing, and measurable details first

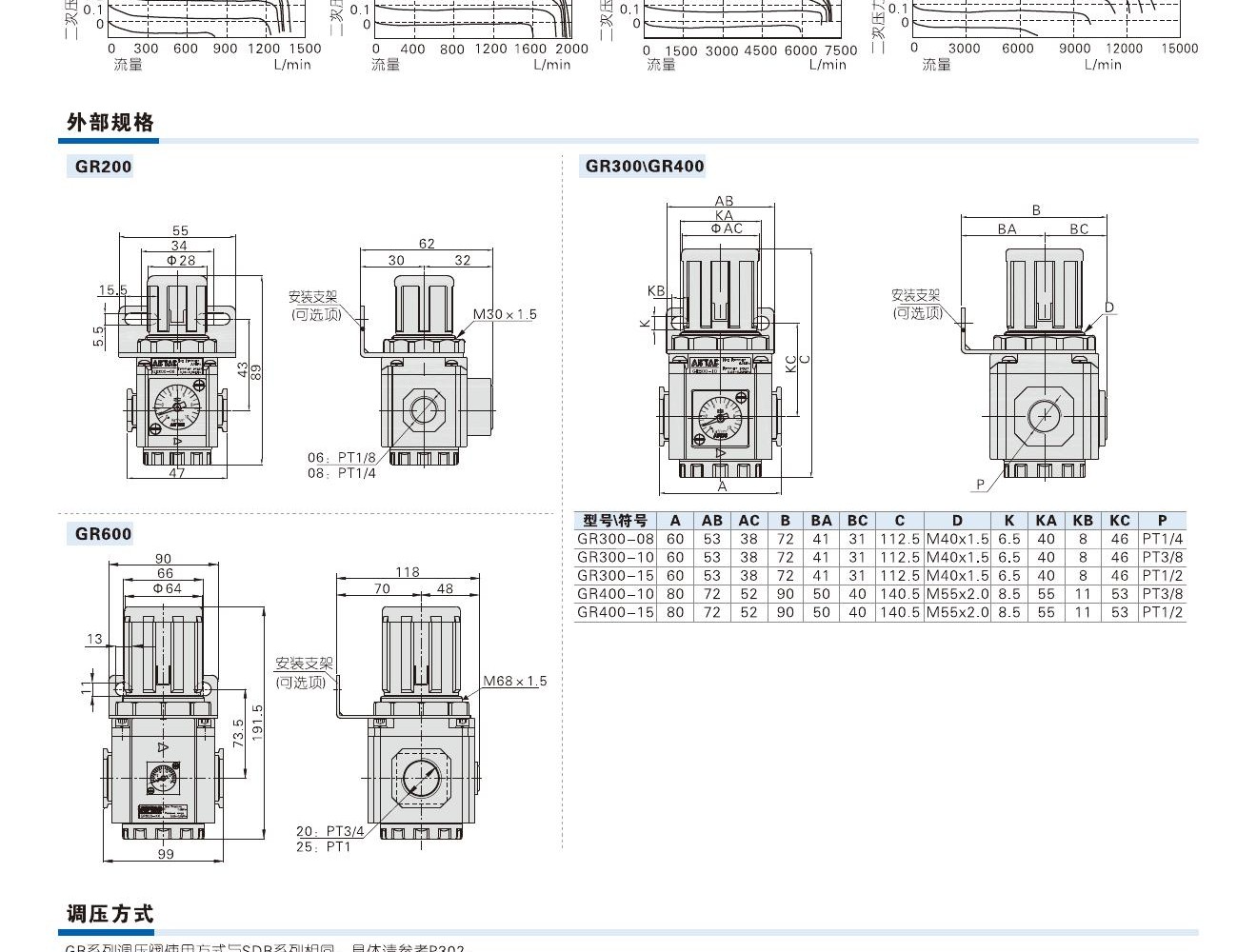

Drawing reference
- Confirm GR200, GR300, GR400 or GR600 regulator family
- Match size, port, pressure form, mounting, bracket, gauge, thread and check-valve choice before RFQ
Key details for matching
Model patterns
- GR200-06
- GR200-08
- GR300-08
- GR300-10

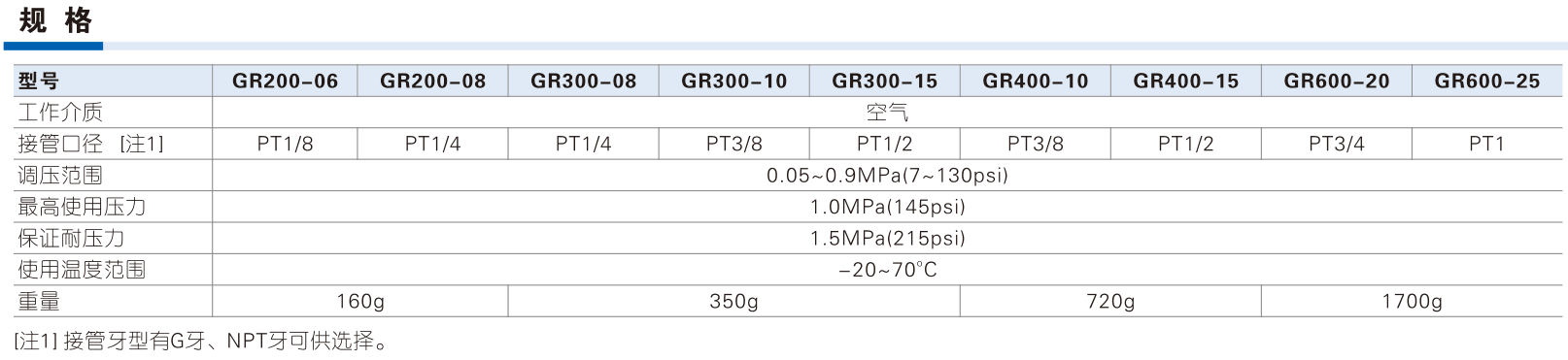

Reference details
- Product type: Pneumatic pressure regulator
- Published working medium: Air
- Published adjustment range: Standard 0.05–0.9 MPa; L low pressure up to 0.4 MPa
- Published maximum / proof pressure: 1.0 MPa / 1.5 MPa
- Reference pages: PDF pages 1–2
Matching Questions
Can a GR regulator be matched by port size alone?
No. Body size, pressure form, mounting, gauge, thread and check-valve choice also affect the match. Confirm the complete code before RFQ.
