Identify from the photo
- Complete GA manifold code or clear installed assembly photo
- GA200, GA300, GA400 or GA600 size context
- Port and PT/G/NPT thread

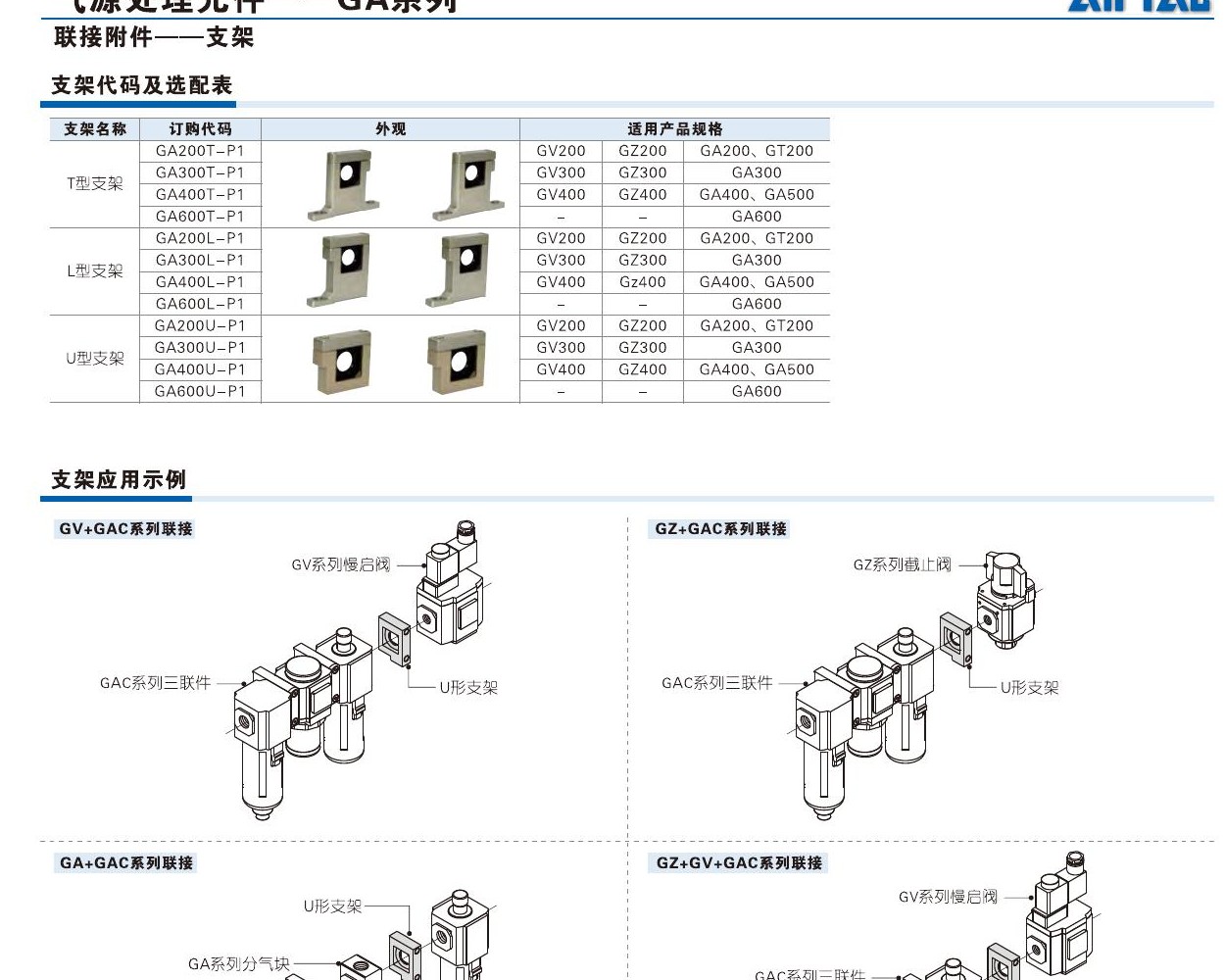

- T, L or U bracket requirement
- Connected GA regulator/filter-regulator and lubricator arrangement

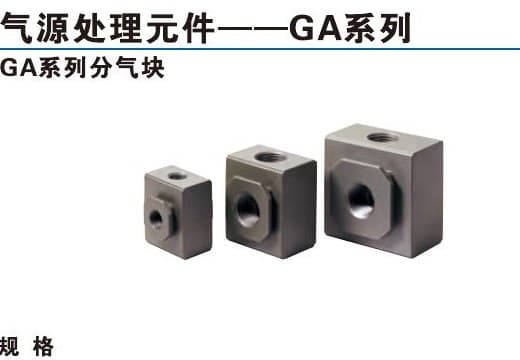

AirTAC GA Manifold Blocks
GA manifold blocks split the air path between a GA regulator or filter-regulator and lubricator. Confirm size, port, thread and bracket arrangement before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
GAGA Series Air Preparation
Ordering code matching
Match each code segment

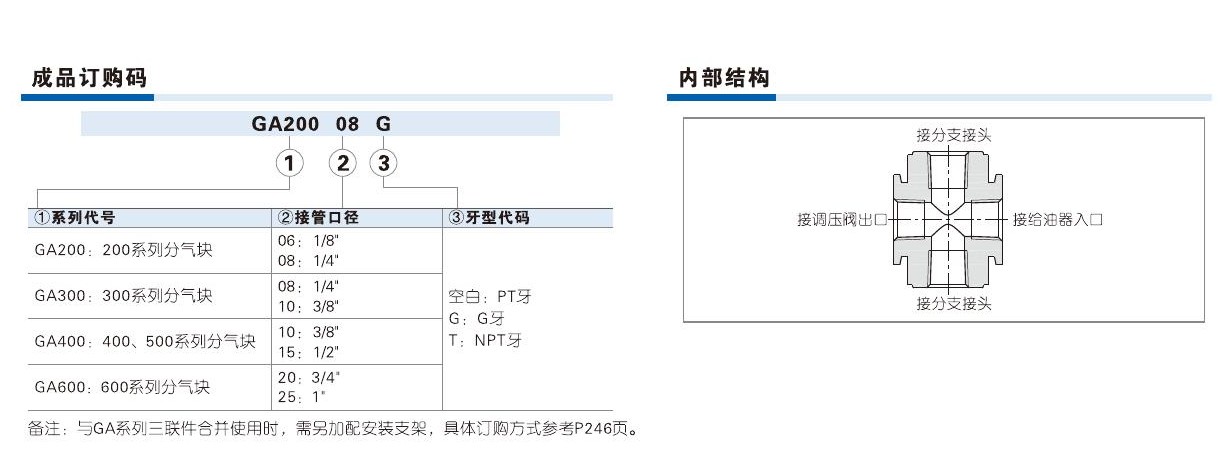

Code format
GA [200/300/400/600] [06/08/10/15/20/25] [PT/G/NPT]Published GA manifold code layoutGA200-08GGA400-15GA600-25T| ①Size / port | ②Thread | ③Bracket / assembly |
|---|---|---|
| GA200: 06/08; GA300: 08/10; GA400: 10/15; GA600: 20/25. | Blank PT; G G-thread; T NPT. | Select the compatible T, L or U bracket and confirm the connected GA components; the block is not a standalone air-treatment train. |
About GA
The GA manifold block is an assembly component for GA-series air preparation. Installed between the GA regulator or filter-regulator and lubricator, it creates a branch so one path can feed the lubricator while another continues to the equipment. GA200, 300, 400 and 600 identify the size context; port, thread and T/L/U bracket selection remain matching fields on this component page.
Product matching reference
Compare the photo, drawing, and measurable details first
Drawing reference
- Confirm GA manifold block used between GA regulator/filter-regulator and lubricator
- Match GA200/300/400/600 size, port, PT/G/NPT thread and selected T/L/U bracket arrangement
Key details for matching
Model patterns
- GA200-06
- GA200-08
- GA300-08
- GA300-10

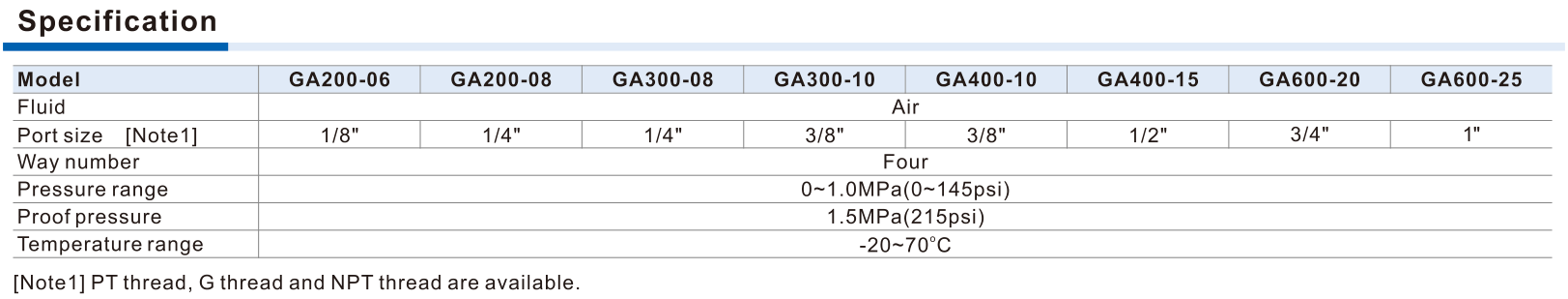

Reference details
- Product type: GA-series manifold block
- Published passage: Four-port manifold block
- Published working medium: Air
- Published pressure range: 0–1.0 MPa
- Published proof pressure: 1.5 MPa
- Reference pages: PDF pages 1–2
Matching Questions
Is the GA manifold block a complete FRL unit?
No. It is an assembly component used with GA regulators or filter-regulators and lubricators. Send the connected component codes and bracket...
GA
Include this series in a project RFQ
GA Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
