AirTAC sourcing reference•GA Series Air Preparation
SERIESGAR

AirTAC GAR Pressure Regulators

GAR regulator family photograph with two body sizes and circular gauges
GAR pressure regulators with circular gauges
Request a QuoteWhatsAppSend a Photo — We’ll Help Identify It

GA-series pressure regulators with ten published body/port pairs from 1/8 to 1. Standard...

Official reference

Based on manufacturer documentation

Model support

For model confirmation

Parts lists

Code, photo, or BOM

Availability / lead time

By model and quantity

Sourcing route & inquiry details

GA-series pressure regulators with ten published body/port pairs from 1/8 to 1. Standard adjustment is 0.05–0.9 MPa; GAR200–500 also offer a 0.05–0.4 MPa low-pressure type. Send your model or parts list for a quote.

Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

Request type
AirTAC originalModel matchingChina-source alternative

Find your GAR type

Choose a type; send a model or photo if unsure.

GAR200-06

1/8 · 91 mm reference height

GAR200-08

1/4 · 91 mm reference height

GAR300-08

1/4 · 112 mm reference height

GAR300-10

3/8 · 112 mm reference height

GAR300-15

1/2 · 112 mm reference height

GAR400-10

3/8 · 140.5 mm reference height

GAR400-15

1/2 · 140.5 mm reference height

GAR500-20

3/4 · 140.5 mm reference height

GAR600-20

3/4 · 179.5 mm reference height

GAR600-25

1 · 179.5 mm reference height

Request a QuoteSend a Photo — We’ll Help Identify It →

Send the model, quantity and destination. For multiple items, attach a parts list or BOM.

GAR model details

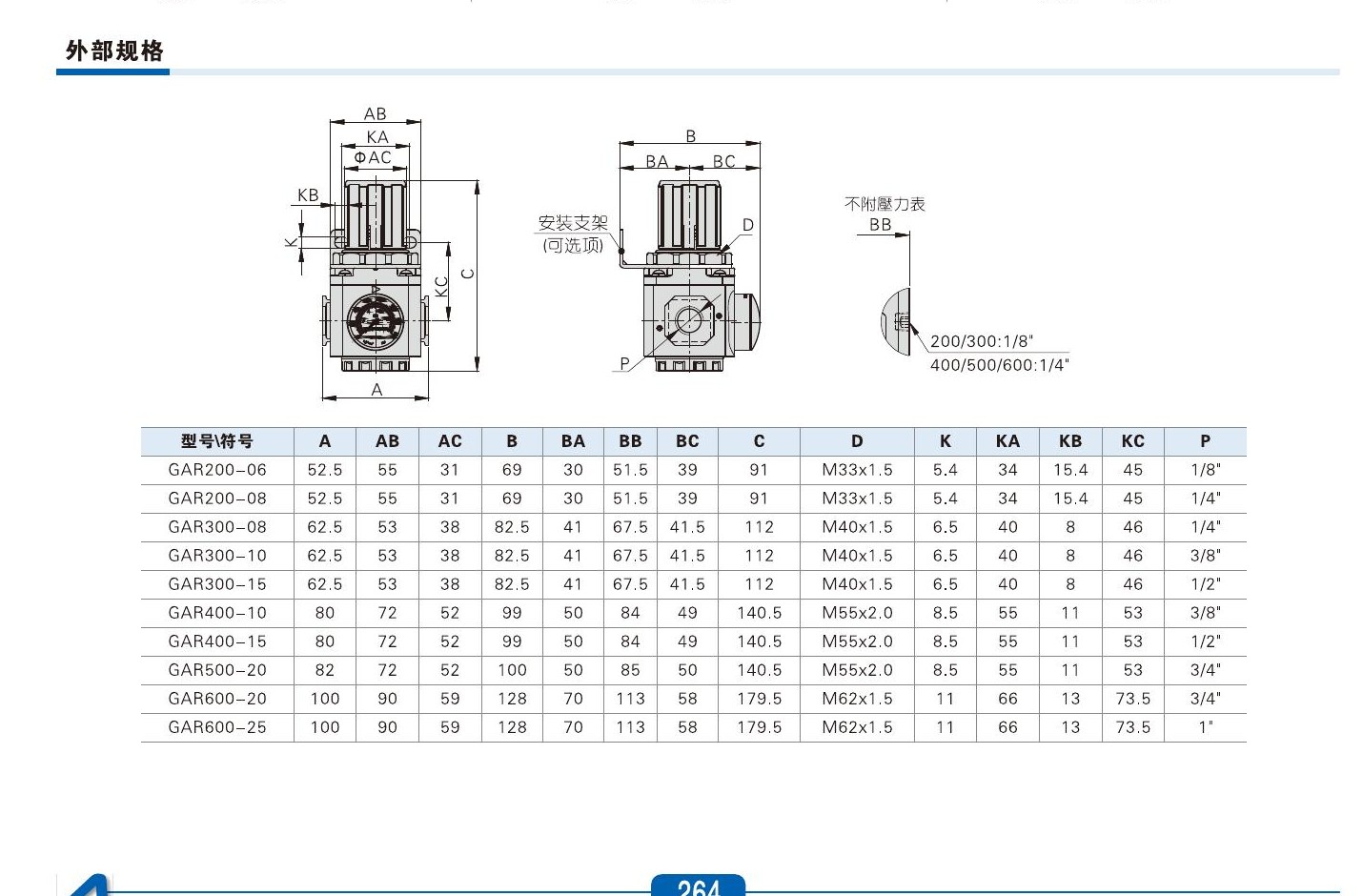

Drawings & dimensions

Installation Drawings & Technical Specifications

Compare installed dimensions
Full View
GAR ten body-port pairs, standard pressure range, maximum pressure and weightsClick to open full drawing ↗

GAR ten body-port pairs, standard pressure range, maximum pressure and weights

Helpful for Model Matching:

  • Full model or label; quantity and destination
  • Exact published body and port, including GAR500
  • S standard or L low-pressure; GAR600 S only
  • Bracket or J no bracket; circular gauge or N no gauge
  • PT/G/NPT and matching catalogue gauge units
  • K reverse-flow option; plug details require further source confirmation
  • Correct dimension row, gauge port and IN/OUT; GAR100 separate
  • Compare exact GAR body/port row and gauge port
  • Match bracket, IN/OUT and panel clearance
  • Flow curves use0.7MPa inlet; no single rated flow inferred

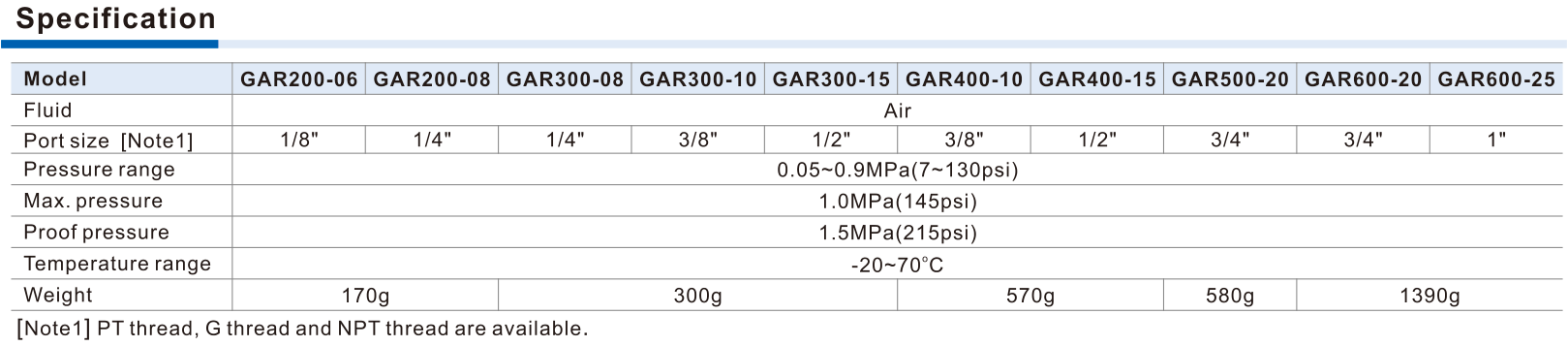

Catalogue Technical Specifications

AirTAC reference data
FunctionPressure regulation / Druckregelung
Working mediumAir / Druckluft
Standard adjustment rangeS: 0.05–0.9 MPa
Low-pressure adjustment rangeL: 0.05–0.4 MPa; GAR200–500 only / nur GAR200–500
Maximum pressure1.0 MPa
Proof pressure1.5 MPa
Temperature−20–70 °C
Ports1/8–1; PT, G, NPT
Weight by bodyGAR200:170 g; GAR300:300 g; GAR400:570 g; GAR500:580 g; GAR600:1390 g
Reference heightGAR200:91 mm; GAR300:112 mm; GAR400:140.5 mm; GAR500:140.5 mm; GAR600:179.5 mm
Gauge port without gaugeGAR200/300:1/8; GAR400/500/600:1/4
Flow-curve conditionInlet pressure 0.7 MPa / Eingangsdruck 0.7 MPa
Common Model Codes & Configurations:Useful for an RFQ
GARGAR200GAR300GAR400

Send the model code, quantity and destination, or attach a parts list.

WhatsAppQuote BOM
Technical reference & selection notes

Ordering Codes, Fit Verification & Specifications

Specifications, installation dimensions, and ordering-code notes.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

GAR[body][port][S/L][blank/J][blank/N][blank/G/T][blank/K]GAR600 S only; blank circular gauge or N no gauge
GAR200-08LJNGKGAR300-15SJGGAR500-20LJNGGAR600-25SJTK
①–③Body, port and pressure type④–⑥Bracket, gauge and thread⑦Reverse-flow valve
GAR200:06/08; 300:08/10/15; 400:10/15; 500:20; 600:20/25. S standard 0.05–0.9 MPa. L low-pressure 0.05–0.4 MPa for GAR200–500 only; GAR600 lists S only.Blank with bracket; J no bracket. Blank circular gauge; N no gauge. Blank PT (MPa/psi), G G-thread (bar/MPa), T NPT (psi/bar). No separate F/C shape or 1/2/3 scale fields.Blank no reverse-flow valve; K with reverse-flow valve. Catalogue points to printed235 for sealing-plug details; follow the sealing-plug installation instructions for the actual configuration.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

GAR200-08LJNGK

Body, port and pressure typeBody, port and pressure type

GAR200:06/08; 300:08/10/15; 400:10/15; 500:20; 600:20/25. S standard 0.05–0.9 MPa. L low-pressure 0.05–0.4 MPa for GAR200–500 only; GAR600 lists S only.

Bracket, gauge and threadBracket, gauge and thread

Blank with bracket; J no bracket. Blank circular gauge; N no gauge. Blank PT (MPa/psi), G G-thread (bar/MPa), T NPT (psi/bar). No separate F/C shape or 1/2/3 scale fields.

Reverse-flow valveReverse-flow valve

Blank no reverse-flow valve; K with reverse-flow valve. Catalogue points to printed235 for sealing-plug details; follow the sealing-plug installation instructions for the actual configuration.

About GAR

GAR regulates compressed-air pressure without filtration or lubrication. Ten published combinations cover five body sizes including GAR500. The pressure type is mandatory S standard or L low-pressure; GAR600 lists S only. The circular gauge is the blank option and N omits it. Gauge units follow the thread field: PT MPa/psi, G bar/MPa and NPT psi/bar. These rules differ from GR; do not transfer GR gauge-shape and scale suffixes. Compare the correct dimension row, mounting, gauge port and IN/OUT direction. GAR100 is a separate compact family.

Matching Questions

Can GAR600 use the low-pressure L type?

The GAR ordering chart lists S standard only for GAR600. L low-pressure, 0.05–0.4 MPa, is listed for GAR200–500. Send an unlisted code or installed label for help; a GAR600 low-pressure option is not listed.

Can GR gauge codes be used for GAR?

GAR lists a blank circular gauge or N no gauge. Gauge units are paired with the thread field: PT MPa/psi, G bar/MPa, NPT psi/bar. Separate F/C gauge-shape and 1/2/3 scale fields from GR are not listed for GAR.
