AirTAC LRW widened miniature recirculating linear guides. Confirm rail width, N standard or L long block, block count, rail length/hole layout, preload, accuracy and mounting. Send full code or drawing with load, moments, required travel, quantity and destination for quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

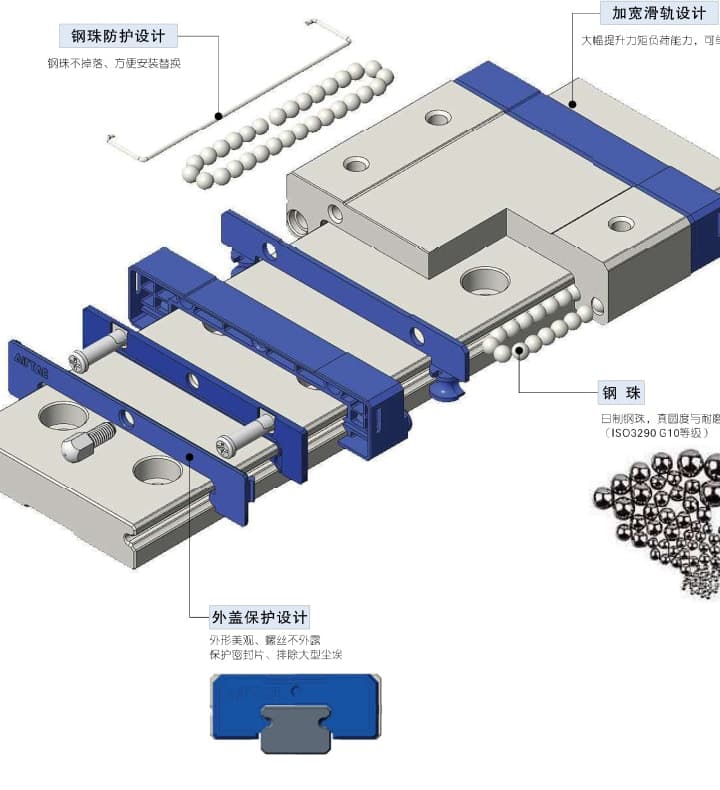

Match an LRW wide miniature linear guide
AirTAC LRW official combined ordering
Helpful for Model Matching:
| Family / actual width | LRW independent widened miniature recirculating guide. Code7/9/12/15 means actual rail width14/18/24/42 mm, not7/9/12/15 mm. N standard/L long block. No LRMW model is published in these official sources. |
| Combined ordering | LRW [BB] [7/9/12/15] [N/L] [1/2] X[length] S[first margin] [A/B/C preload] [N/H/P accuracy] [optionalT bottom mount]. Blank natural finish;BB black chrome. N accuracy Normal is distinct from N standard-block code. |

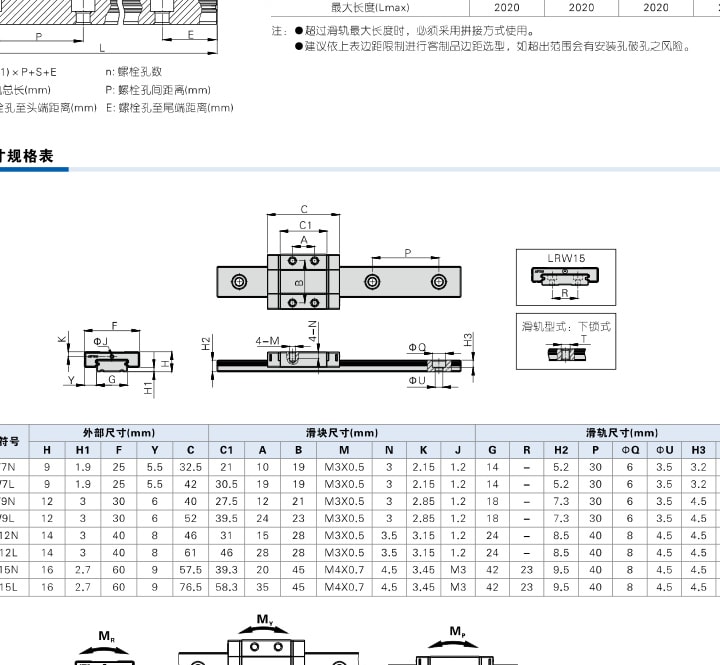

| Rail pitch / maximum | Code7/9 pitch30 mm,12/15 pitch40 mm;max individual length2020 mm all. Margins min/max7/9:4–26;12/15:5–35 mm;standard S/E20/20/30/30 mm. L=(n−1)P+S+E. Prose recommends end distances larger than half pitch; explicit table permits smaller custom margins. Drawing verification remains required. Layouts with fewer than two mounting holes or limited block space require drawing review; they are not ruled out by the catalogue. |
| Joined rails / pairing | Standard joined code has first length, internalT joint mark, second length, preload, accuracy and optional bottom-mountT. Match A001/B001 serials and arrows. Source says joint count no more than2;extra needs customization, not automatic arbitrary multi-rail availability. |
| Separate group pairing | Rail groupD;7/9 blockB→medium,C→light,D→clearance;12/15 blockA→medium,B→light,D→clearance. Separate block/rail precision choices useN/H, not combinedP. Group pairing changes preload; do not promise random component interchangeability. |
| Load units / ratings | Dynamic C100B/staticC0 arekN;staticMR/MP/MY areN·m. 7N1.07/1.96;7L1.47/2.98;9N2.03/3.91;9L2.69/5.60;12N3.13/5.31;12L4.08/7.83;15N5.26/8.76;15L6.99/12.71 kN. They are ratings, not payloadkg or two-block totals. |
| Accuracy / preload | CombinedN Normal/N Normal/H High/P Precision. Height tolerance±0.04/±0.02/±0.01 mm;height variation0.03/0.015/0.007;width tolerance±0.04/±0.025/±0.015;width variation0.03/0.02/0.01. Raceway parallelism table isμm by rail-length band. A clearance/B light/C medium radial interference isμm, not accuracy. |
| Installation / torque | Mounting datum ground/fine-milled,block markings on same side. Size7/9 M3 torque iron/cast/aluminium196/127/98 N·cm;size12/15 M4 412/274/206 N·cm, notN·m. Check reference-edge heights/chamfers against own LRW drawing. |
| Lubrication / handling | Factory Shell Alvania greaseS2;same or equivalent recommended. Replenishment each100km or3–6months adjusted by actual use. Anti-rust oil is not service grease;do not mix grease. Remove block with plastic transfer rail;ball retainers do not guarantee safe rapid/oblique removal. |
| Temperature / load selection | Environment should not exceed80°C;source maximum100°C is not continuous100°C approval. Apply actual speed,impact,vibration,load,moments and safety factors. Dynamic rating reference life100km is not promised operating life. |

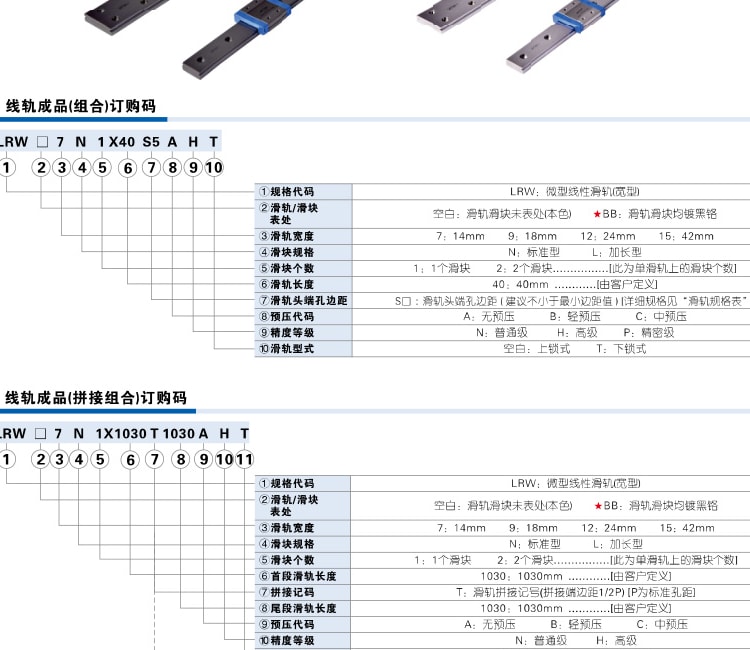

Ordering code matching
Code format
LRW [BB] [width] [N/L] [1/2] X[length] S[edge] [A/B/C] [N/H/P] [T]Combined guide; components and joints separately confirmedLRW7N1X70S20AHTLRWBB9L1X100S20BPLRW15N1X140S30AN| 1Model / finish | 2Width / block / count | 3Rail layout | 4Preload / accuracy | 5Rail mount |
|---|---|---|---|---|
| LRW blank natural or BB black chrome. | Code7/9/12/15→actual width14/18/24/42;N standard/L long;1/2 blocks. | X[length]S[first margin];check pitch, last margin and maximum individual length. | A clearance/B light/C medium;N Normal/H High/P Precision. | Blank top mount orT bottom mount;joined rails and separate components need technical confirmation. |
If the label is incomplete, send the readable parts together with a photo.
LRW7N1X70S20AHT1Model / finish
LRW blank natural or BB black chrome.
2Width / block / count
Code7/9/12/15→actual width14/18/24/42;N standard/L long;1/2 blocks.
3Rail layout
X[length]S[first margin];check pitch, last margin and maximum individual length.
4Preload / accuracy
A clearance/B light/C medium;N Normal/H High/P Precision.
5Rail mount
Blank top mount orT bottom mount;joined rails and separate components need technical confirmation.
AirTAC LRW widened miniature recirculating linear guides. Confirm rail width, N standard or L long block, block count, rail length/hole layout, preload, accuracy and mounting. Send full code or drawing with load, moments, required travel, quantity and destination for quotation.
L means long block within LRW. LRM is a separate narrow series. Separate LRW block/rail group codes affect preload. Send installed label and drawings for confirmation.
