Choose the RMS family first
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
RMS
Basic external form
RMSP
P-type external form
RMSF
F-type external form
AirTAC RMS Magnetically Coupled Rodless Cylinders
RMS is a magnetically coupled rodless cylinder family with multiple external mounting forms and a guided slider. Match RMS, RMSP or RMSF, bore, stroke, installation form, buffer, sensor...
Request type
AirTAC originalModel matchingChina-source alternative
RMSMagnetically Coupled Rodless Cylinders
Product image reserved
The matching image will be added after model verification.
Ordering code matching
Match each code segment
Code format
RMS / RMSP / RMSF [bore] × [stroke] [S] [PT/G/NPT]Published RMS-family code layoutRMS 20 × 200 SRMSP 20 × 200 SRMSF 20 × 200| ①External form | ②Bore (mm) | ③Stroke (mm) | ④Magnetic option | ⑤Port thread |
|---|---|---|---|---|
| RMS, RMSP or RMSF | 10, 16, 20, 25, 32, 40 | Use the published stroke table; ranges depend on bore. | S: magnetic option. | Blank: PT; G: G thread; T: NPT thread. |
Read the model code
If the label is incomplete, send the readable parts together with a photo.
RMS 20 × 200 SRMS / RMSP / RMSFExternal form
Select the mounting form shown on the installed unit.
20Bore
Published bore: 10, 16, 20, 25, 32, or 40 mm.
200Stroke
Select the required travel from the published stroke table.
SMagnetic option
S denotes the magnetic option.
About RMS

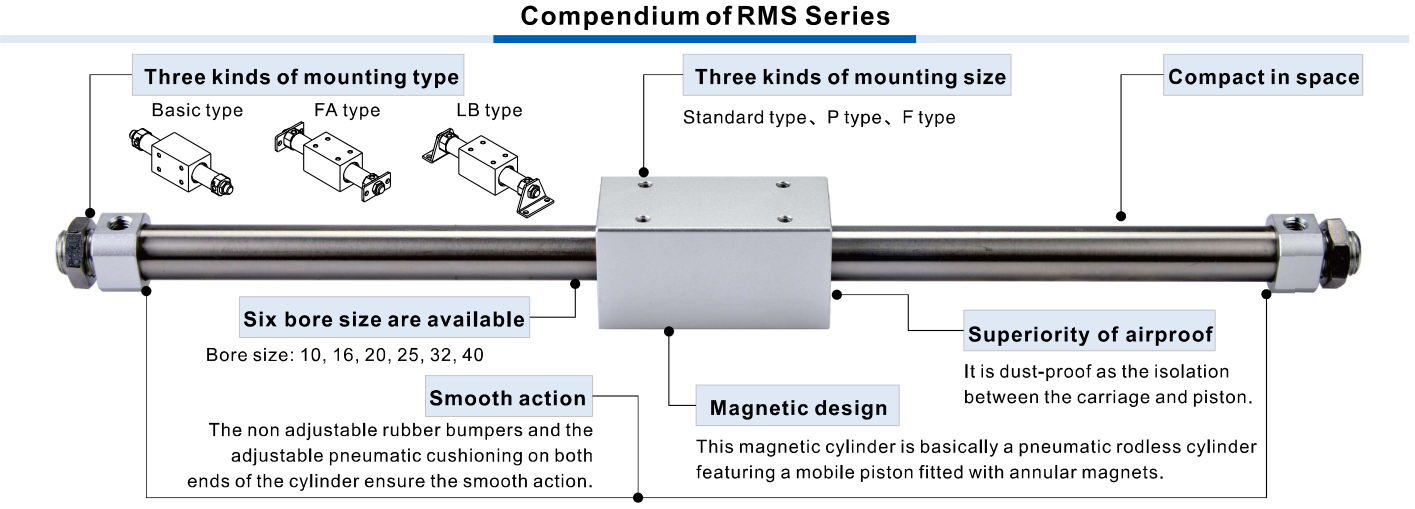

RMS transfers piston motion to an external slider by magnetic coupling and adds a guide rail for stable movement. The document distinguishes RMS basic, RMSP and RMSF mounting forms and shows optional accessories; these are assembly-level matching points rather than separate bore pages.
Product matching reference
Compare the photo, drawing, and measurable details first
Identify from the photo
Product photo / package / label
- Full RMS/RMSP/RMSF code or readable label
- Bore: 10, 16, 20, 25, 32, or 40 mm
- Required stroke and slider travel
- External mounting form, guide rail, buffer and load direction
- Accessory, port thread, sensor groove and installed clearance
Drawing reference
Dimension / installation drawing
- Select the RMS, RMSP, or RMSF external configuration before comparing dimensions
- Compare bore, stroke, slider/load arrangement, mounting, port, buffer, sensor groove and installed clearance
Key details for matching
Model patterns
- RMS
- RMSP
- RMSF
- RMS 20 × 200 S
Reference details
- Product type: Magnetically coupled rodless cylinder with guided slider
- Published forms: RMS, RMSP, RMSF
- Published bores: 10, 16, 20, 25, 32, 40 mm
- Operating pressure: 0.15–1.0 MPa (bore-dependent)
- Speed: 50–400 mm/s
- Reference pages: PDF pages 1–3
Matching Questions
Are RMS, RMSP and RMSF interchangeable?
No. They share the RMS magnetic-coupling family, but their external forms and mounting interfaces differ. Confirm the installed form and drawing...
