RMT is a double-guide-rod magnetically coupled rodless cylinder. Confirm bore, stroke, guide/load arrangement, buffer configuration, mounting face and port thread together before RFQ.

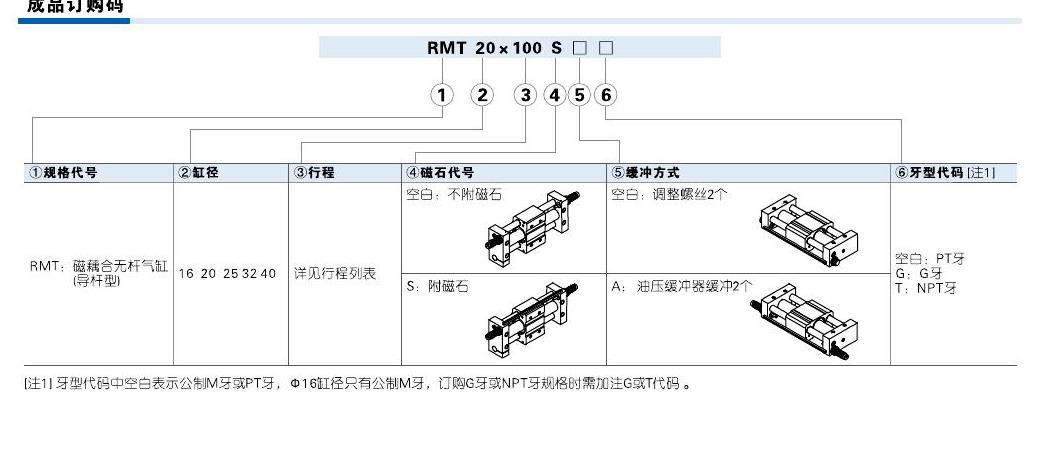

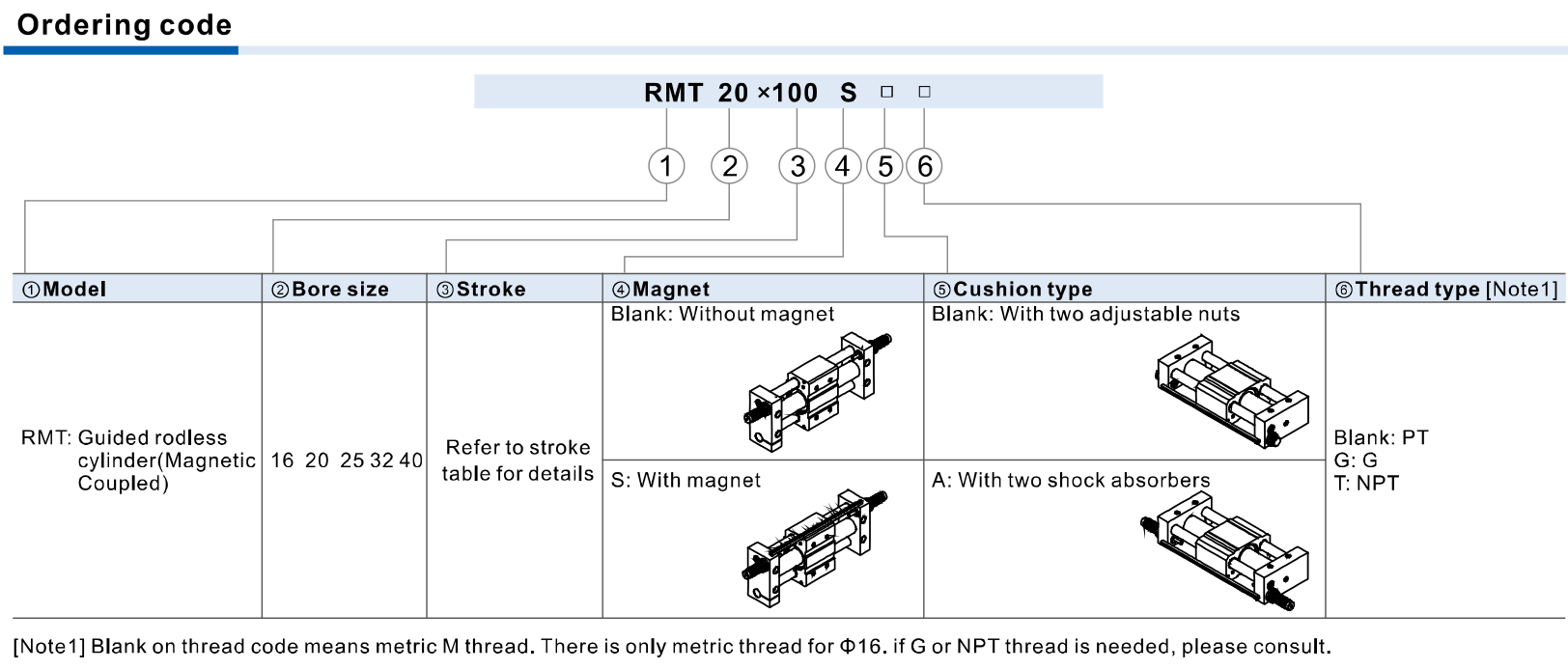

Ordering code matching
Code format
RMT [bore] × [stroke] [S] [A] [PT/G/NPT]Published RMT code layoutRMT 20 × 100 SRMT 20 × 100 S A GRMT 40 × 1000| ①Series | ②Bore (mm) | ③Stroke | ④Magnetic option | ⑤Buffer | ⑥Port thread |
|---|---|---|---|---|---|
| RMT: double-guide-rod magnetically coupled rodless cylinder. | 16, 20, 25, 32, 40 | Use the published stroke table; maximum published stroke is bore-dependent, up to 1500 mm. | Blank: without magnet; S: with magnet. | Blank: two adjustment screws; A: two hydraulic buffers. | Blank: PT; G: G thread; T: NPT thread. |
If the label is incomplete, send the readable parts together with a photo.
RMT 20 × 100 S A GRMTSeries
Double-guide-rod magnetically coupled rodless cylinder.
20Bore
Published bore: 16, 20, 25, 32, or 40 mm.
100Stroke
Select from the published stroke table for the chosen bore.
SMagnetic option
Blank: without magnet; S: with magnet.
ABuffer
Blank: two adjustment screws; A: two external hydraulic buffers.
GPort thread
Blank: PT; G: G thread; T: NPT thread.

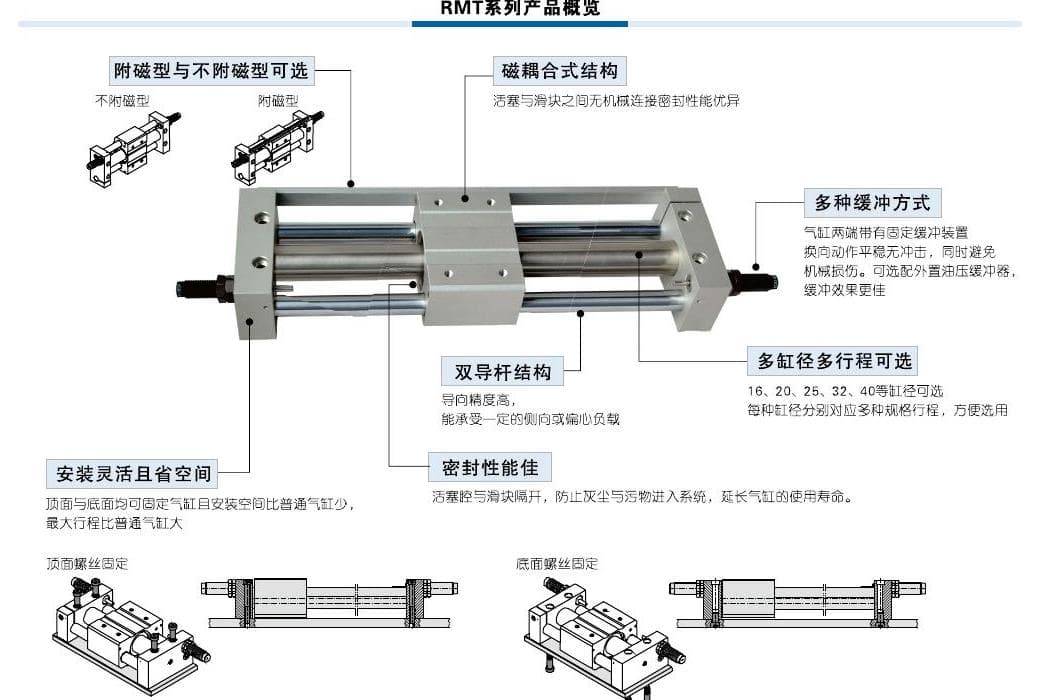

RMT transfers piston motion to an external carriage through magnetic coupling, without a projecting piston rod. Its double-guide-rod construction is part of the assembly identity, so match the carriage/load direction and installation interface as well as bore and stroke.
Product matching reference
No. RMT is a guided rodless assembly. Confirm the double-guide-rod carriage, load direction, mounting face, buffer configuration and port thread in...
In the published ordering code, blank denotes two adjustment screws and A denotes two external hydraulic buffers. Confirm the installed buffer...
RMT
RMT Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
