AirTAC RMTL Precision-Guide Magnetically Coupled Rodless Cylinders

RMTL is a precision double-guide-rod magnetically coupled rodless cylinder. Confirm the guide/load arrangement, bore, stroke, buffer, mounting face and port thread as one assembly before...

Request type
AirTAC originalModel matchingChina-source alternative
Start RFQSend photo / label
RMTLMagnetically Coupled Rodless Cylinders
RMTL precision double-guide-rod magnetically coupled rodless cylinder reference
Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

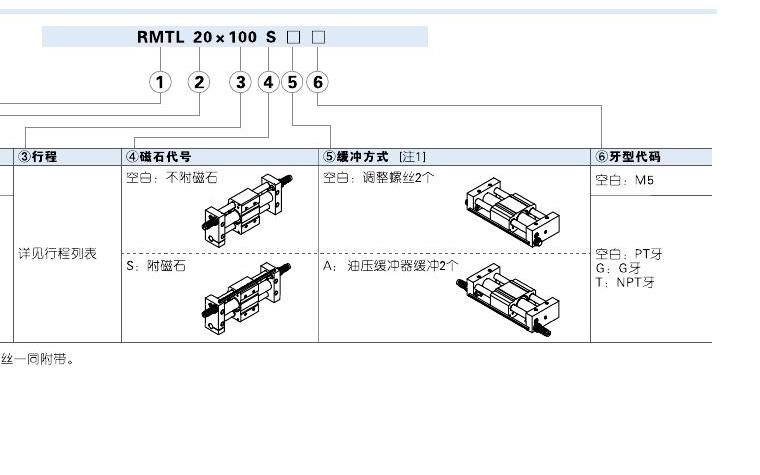

RMTL [bore] × [stroke] [S] [A] [PT/G/NPT]Published RMTL code layout
RMTL 20 × 100 SRMTL 20 × 100 S A GRMTL 40 × 1000
①Series②Bore (mm)③Stroke④Magnetic option⑤Buffer⑥Port thread
RMTL: precision double-guide-rod magnetically coupled rodless cylinder.10, 16, 20, 25, 32, 40Use the published stroke table; maximum stroke is bore-dependent, up to 1500 mm.Blank: without magnet; S: with magnet.Blank: two adjustment screws; A: two hydraulic buffers.Ø10: M5; otherwise blank: PT, G: G thread, T: NPT thread.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

RMTL 20 × 100 S A G

RMTLSeries

Precision double-guide-rod magnetic-coupling rodless cylinder.

20Bore

Published bore: 10, 16, 20, 25, 32, or 40 mm.

100Stroke

Select from the published stroke table for the chosen bore.

SMagnetic option

Blank: without magnet; S: with magnet.

ABuffer

Blank: two adjustment screws; A: two external hydraulic buffers.

GPort thread

Ø10 uses M5; otherwise blank: PT, G: G thread, T: NPT thread.

About RMTL

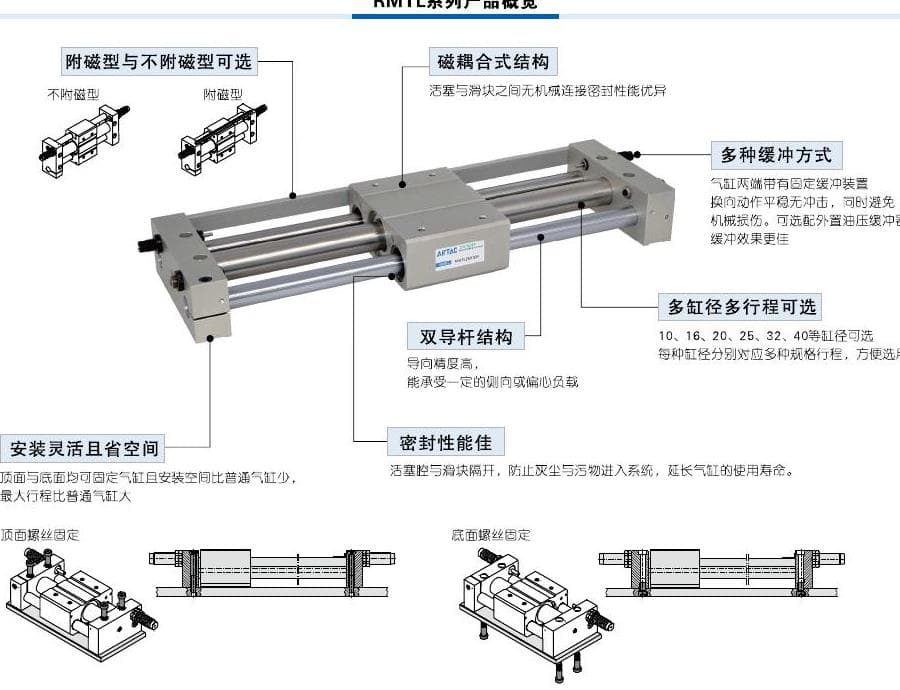

RMTL transfers piston motion through magnetic coupling to an external carriage and uses a double-guide-rod arrangement for controlled movement under side or eccentric load. It is a separate precision-guide series, not an RMT bore/stroke suffix.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo
RMTL precision double-guide-rod magnetically coupled rodless cylinder reference
  • Full RMTL code or readable label
  • Bore: 10, 16, 20, 25, 32, or 40 mm
  • Required stroke and carriage travel
  • Double-guide-rod carriage, load direction, mounting face and installed clearance
  • Magnetic option, buffer type and port thread
Drawing reference
RMTL rodless cylinder ordering code referenceOpen drawing
  • Confirm the RMTL precision double-guide-rod magnetic-coupling assembly
  • Compare bore, stroke, guide/load arrangement, mounting face, buffer configuration, port thread and installed clearance
Key details for matching

Model patterns

  • RMTL
  • RMTL 20 × 100 S
  • RMTL 20 × 100 S A G
  • RMTL-20X100-S-A-G

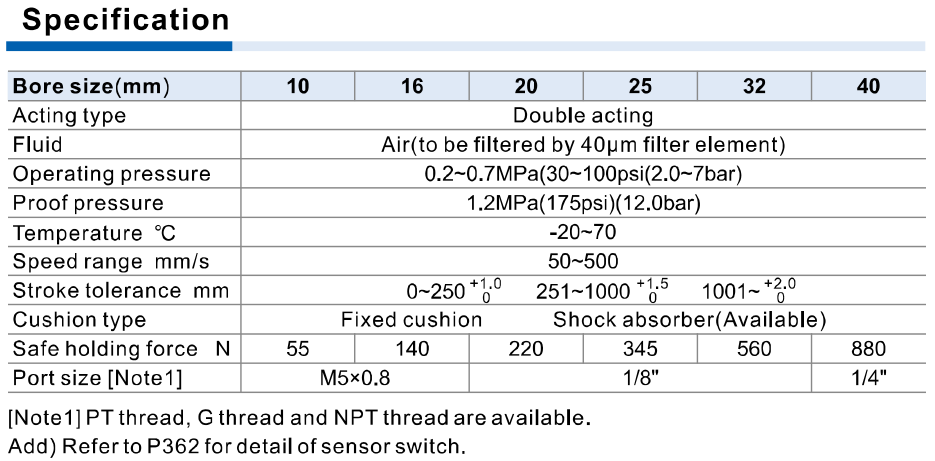

Reference details

  • Product type: Precision double-guide-rod magnetically coupled rodless cylinder
  • Published bores: 10, 16, 20, 25, 32, 40 mm
  • Motion: Double acting
  • Published operating pressure: 0.2–0.7 MPa (30–100 psi)
  • Published proof pressure: 1.2 MPa (175 psi)
  • Published speed: 50–500 mm/s
  • Mounting: Top or bottom mounting
  • Reference pages: PDF pages 1–2

Matching Questions

Why is RMTL not the same as RMT?

RMTL is identified in the source as the precision-guide rodless-cylinder series. Confirm the installed guide/carriage construction and mounting...

What does RMTL code A mean?

In the published ordering code, blank denotes two adjustment screws and A denotes two external hydraulic buffers. Confirm the installed buffer...

RMTL

Include this series in a project RFQ

RMTL Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
