CM3 is an externally actuated mechanical-valve family covering published three-port two-position and five-port three-position forms. Confirm the circuit, actuator, port and mounting...
Ordering code matching
Code format

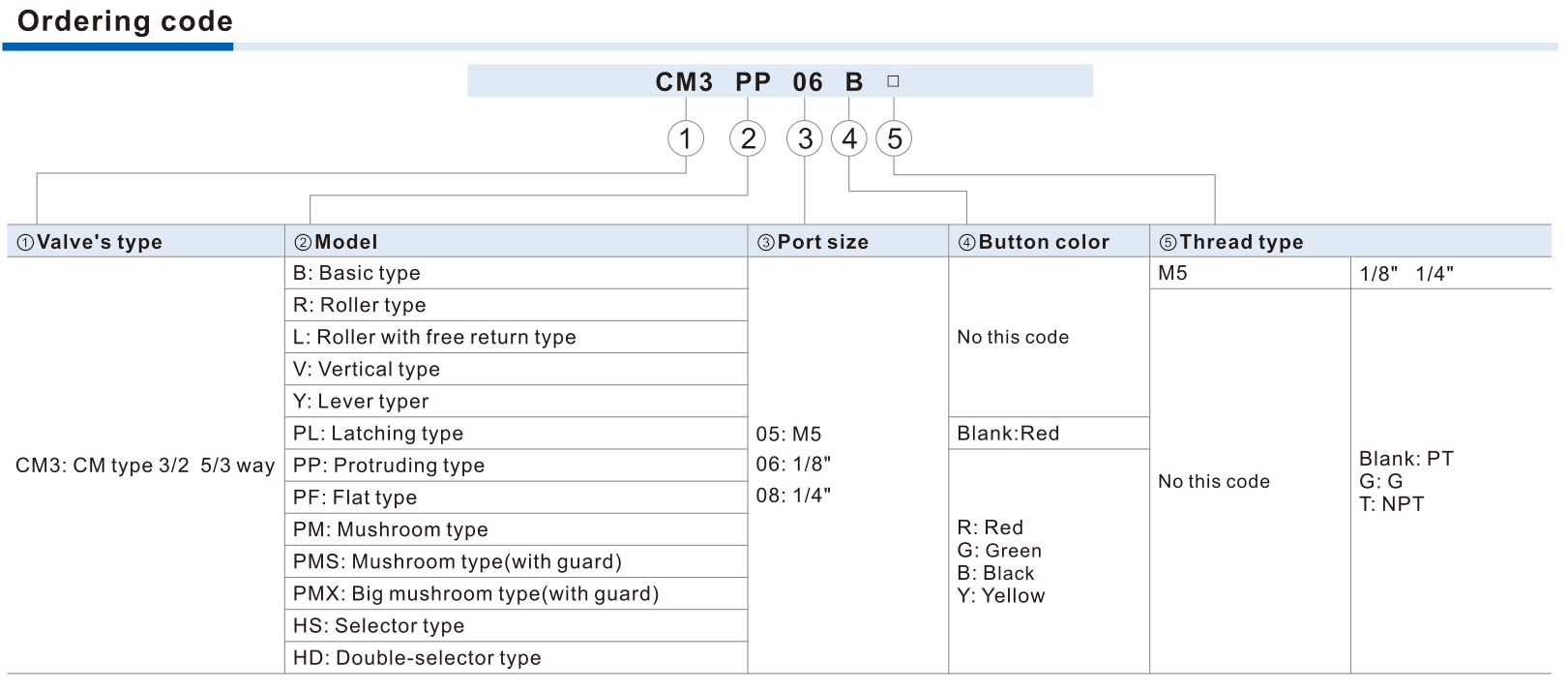

CM3 [actuator] [05/06/08] [button colour] [PT/G/NPT]Published CM3 code layoutCM3B-06CM3PP-06-BCM3HD06-P1CM3PMX08-P4| ①Circuit / actuator | ②Port | ③Colour / thread |
|---|---|---|
| Match the published actuator and, for HD, the five-port three-position circuit. | 05 M5; 06 PT1/8; 08 PT1/4. | Published colour suffixes vary by head; blank PT, G G-thread, T NPT where published. |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.

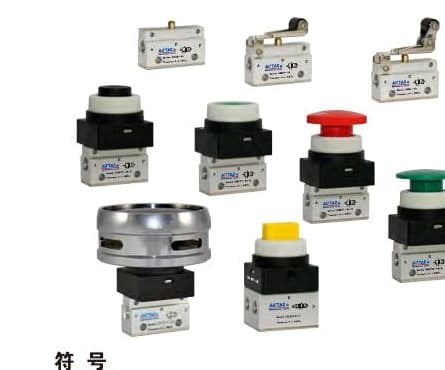

CM3 (three-port, two-position)
Published basic, roller, lever, pushbutton and rotary forms
CM3HD (five-port, three-position)
Dual-select rotary form
CM3 groups mechanical actuator forms around published three-port two-position and five-port three-position circuits. The circuit is a decisive selection field: a five-port three-position CM3HD must not be replaced by a three-port form. Basic, roller, lever, pushbutton and rotary heads remain one family with code- and drawing-level confirmation.
Product matching reference
No. The source identifies CM3HD as a five-port, three-position form, while the other shown forms are three-port, two-position. Confirm the circuit...
