HSV is a three-port, two-position hand-slide valve family with multiple external connection forms. Confirm the port size, standard or threaded-end form, thread and installed flow direction...

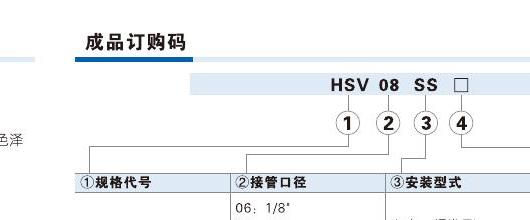

Ordering code matching
Code format
HSV [06/08/10/15/20/25] [blank/FF/FA/SF/SS] [PT/G/NPT]Published HSV code layoutHSV06HSV08SSHSV10FFHSV15FAHSV20SF| ①Port size | ②Connection form | ③Thread |
|---|---|---|
| 06 PT1/8; 08 PT1/4; 10 PT3/8; 15 PT1/2; 20 PT3/4; 25 PT1. | Blank standard; FF double internal; FA double external; SF external/internal; SS double external. | Blank PT; G G-thread; T NPT. |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
Standard
Standard connection form

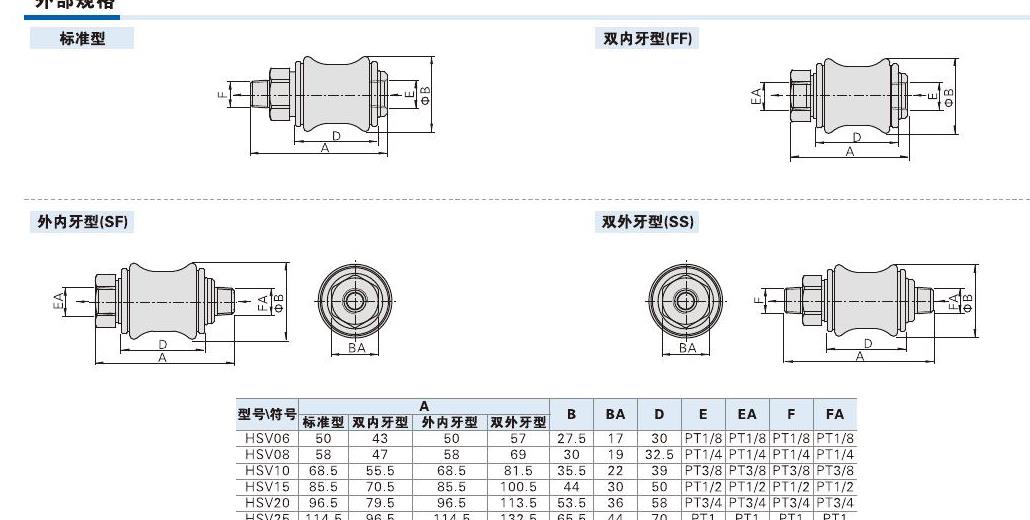

FF / FA / SF / SS
Published threaded-end connection forms
HSV is a manual three-port, two-position hand-slide valve, not a five-port rotary or lever valve. The source lists standard, double-internal-thread FF, double-external-thread FA, external/internal SF and double-external-thread SS forms. Match the actual end connection and flow direction rather than the nominal port size alone.
Product matching reference
No. The PDF lists several different end-connection forms under the same port range. Confirm the full HSV code, thread/end style and flow direction...
