Direct-acting3/2 hand-slide valves with1/8 to1-inch ports and standard,SS,FF orSF end connections. Confirm thread and IN/OUT direction;send the full code,quantity and destination for a quote.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Choose a type; send a model or photo if unsure.
HSV standard
Blank mounting code · standard connection
HSV SS
Double male thread
HSV FF
Double female thread
HSV SF
Male and female thread
Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
Match a HSV model code
HSV port,end-connection andthread ordering guide
Helpful for Model Matching:
| Function / actuation | Manual control,direct acting;3/2 hand slide with supply switching and downstream venting |
| Port / connection | 1/8,1/4,3/8,1/2,3/4 or1 inch;standard/SS/FF/SF |
| Effective area / Cv | 06:23 mm²/Cv1.28;08:40/Cv2.20;10:62/Cv3.50;15:140/Cv7.80;20:250/Cv13.80;25:392/Cv21.78 |
| Working / proof pressure | 0–1.0 MPa (0–145 psi);proof1.5 MPa (215 psi) |
| Medium / temperature / body | Air filtered through40 μm element;−20 to+70 °C;aluminum alloy |
| Lubrication | Not required |
| Installation orientation | Inner structure labels IN and OUT. Confirm installed supply/downstream direction and correct end-thread geometry;standard andSF remain distinct ordering options. |
Ordering code matching
Code format

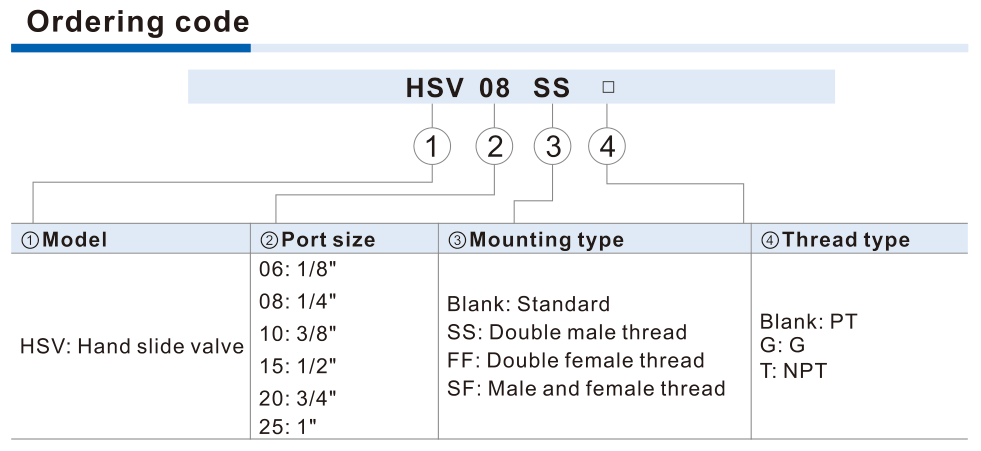

HSV[06/08/10/15/20/25]-[blank/SS/FF/SF]-[blank/G/T]Port,connection type andthreadHSV06HSV08-SS-GHSV10-FF-THSV25-SF-G| ①Port | ②Connection type | ③Thread |
|---|---|---|
| 06=1/8;08=1/4;10=3/8;15=1/2;20=3/4;25=1. | Blank standard;SS double male;FF double female;SF male and female. | After connection type:blank PT,G orT=NPT. |
If the label is incomplete, send the readable parts together with a photo.
HSV08-SS-GPortPort
06=1/8;08=1/4;10=3/8;15=1/2;20=3/4;25=1.
Connection typeConnection type
Blank standard;SS double male;FF double female;SF male and female.
ThreadThread
After connection type:blank PT,G orT=NPT.
HSV is a manually controlled,direct-acting three-port two-position hand-slide valve. The slide switches supply and downstream venting. Match port size, end-connection type and thread, then confirm the installed IN/OUT direction and available sliding clearance.
The3/2 symbol shows supply switching and downstream venting. Confirm the installed IN/OUT direction and circuit requirements;this catalogue does not establish certified safety isolation or lockout capability.

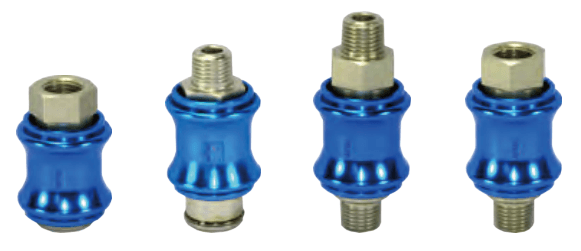

SS is double male,FF double female,SF male and female. Blank is the separate standard option. Match actual thread gender,size,standard and end orientation;do not replace standard withSF merely because one dimension matches.
