M3 is a three-port, two-position mechanical-valve family in miniature, 110 and 210 forms. Confirm the body size, actuator, port and installed mounting before RFQ.

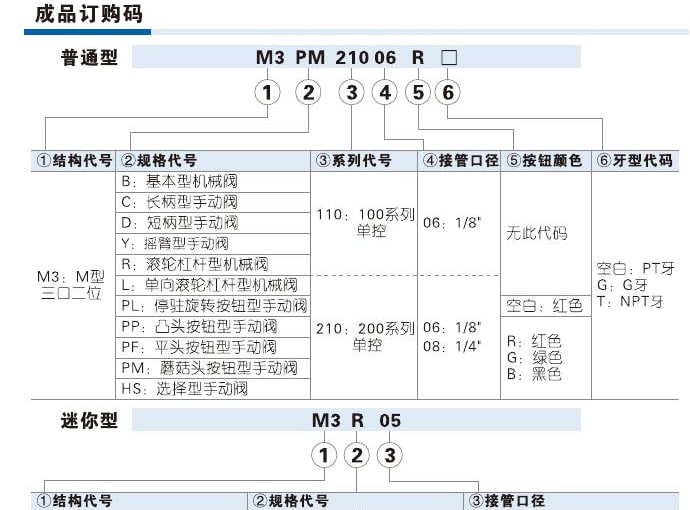

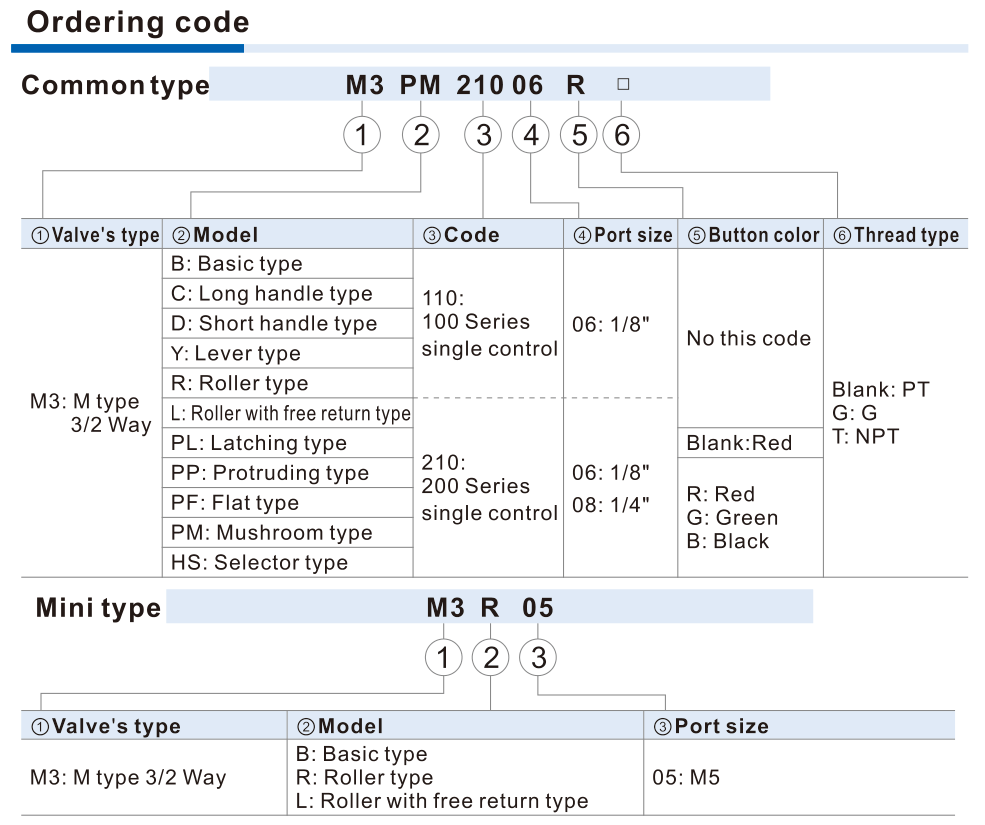

Ordering code matching
Code format
M3 [actuator] [110/210] [06/08] [button colour] [PT/G/NPT]Published standard M3 code layoutM3 [R/L] 05Published miniature M3 code layoutM3B110-06M3PM210-06-RM3R05M3L210-08-G| ①Actuator | ②Body form | ③Port / thread |
|---|---|---|
| Published B/C/D/Y/R/L/PL/PP/PF/PM/HS mechanical form. | 05 miniature; 110 or 210 standard body. | 05 M5; standard 06 PT1/8 or 08 PT1/4; blank PT, G G-thread, T NPT where published. |

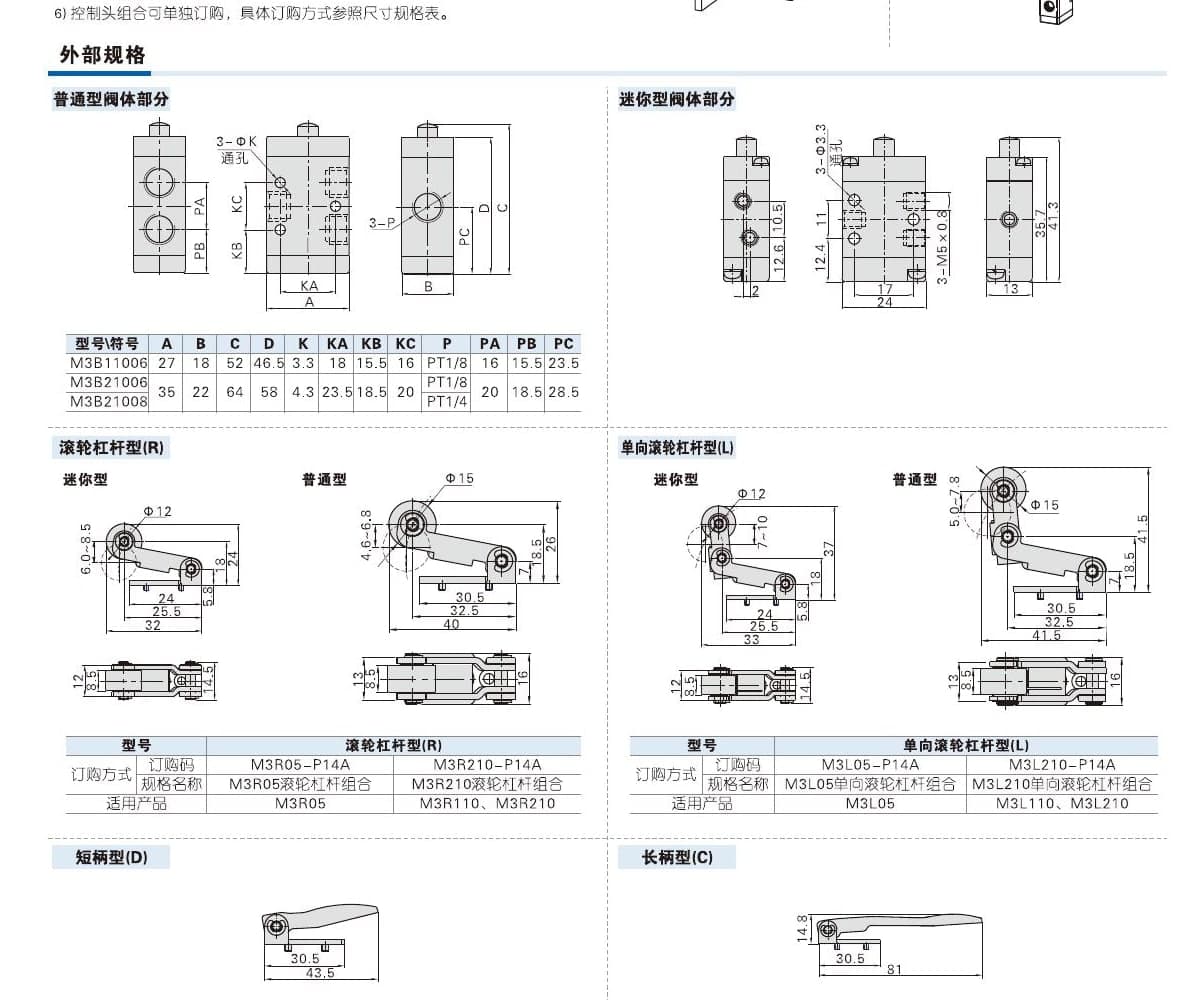

A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
M3 05
Miniature M5-port form
M3 110 / 210
Standard body forms with published 06/08 ports

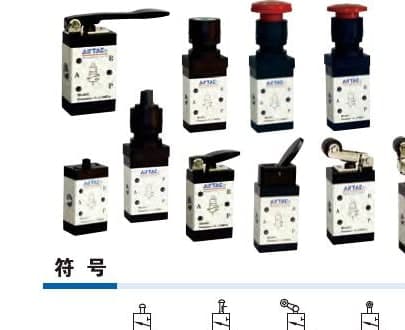

M3 is the three-port, two-position branch of the shared mechanical-valve document. The 05 miniature form and the 110/210 body forms differ in port and installed envelope; lever, roller, pushbutton and rotary selections are code-level forms within the M3 family. Match both the body form and the actuator before replacing a valve.
Product matching reference
Not automatically. The source distinguishes the miniature body from the 110 and 210 forms, with different ports, effective area and mounting...
