Choose the M5 family first
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
M5 05
Miniature five-port form
M5 110 / 210
Standard five-port body forms

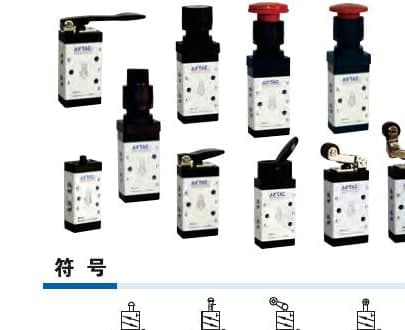

AirTAC M5 Five-Port Two-Position Mechanical Valves
M5 is a five-port, two-position mechanical-valve family in miniature, 110 and 210 forms. Confirm the body size, actuator, port arrangement and mounting before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
M5Manual, Mechanical, and Special Valves
Ordering code matching
Match each code segment

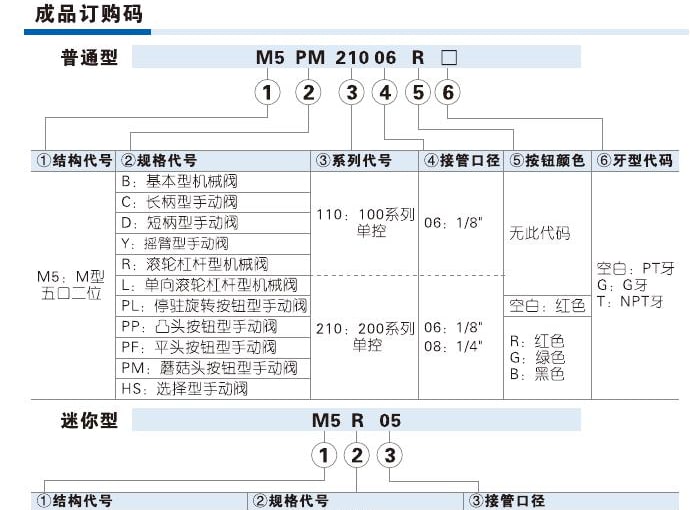

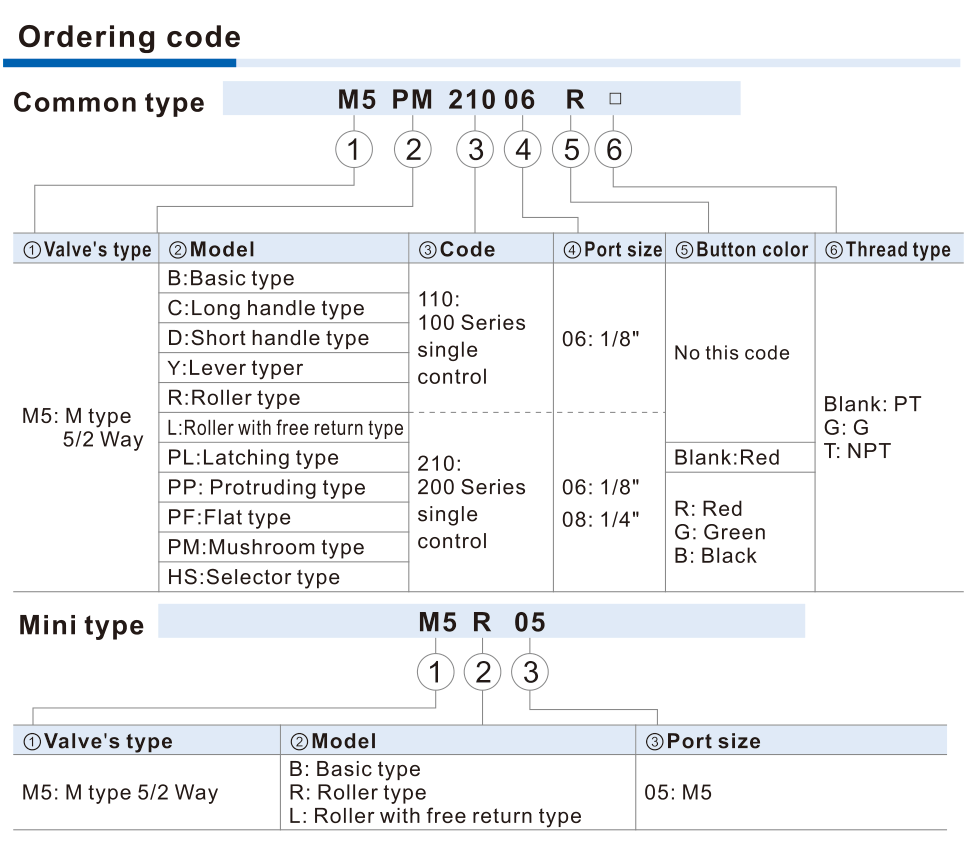

Code format
M5 [actuator] [110/210] [06/08] [button colour] [PT/G/NPT]Published standard M5 code layoutM5 [R/L] 05Published miniature M5 code layoutM5B110-06M5PM210-06-RM5R05M5L210-08-G| ①Actuator | ②Body form | ③Port / thread |
|---|---|---|
| Published B/C/D/Y/R/L/PL/PP/PF/PM/HS mechanical form. | 05 miniature; 110 or 210 standard five-port body. | 05 M5; standard 06 PT1/8 or 08 PT1/4; confirm all five ports and thread. |
About M5
M5 is the five-port, two-position branch of the shared mechanical-valve document. The 05 miniature form and 110/210 bodies are not interchangeable by prefix alone; port arrangement, actuator form and installed dimensions must remain with the complete code. Routine actuator choices stay on one M5 family page rather than becoming thin pages.
Product matching reference
Compare the photo, drawing, and measurable details first
Identify from the photo
- Complete M5 code or readable installed label
- 05 miniature, 110 or 210 body form
- B/C/D/Y/R/L/PL/PP/PF/PM/HS actuator
- All five-port connections, M5/PT1/8/PT1/4 port size and PT/G/NPT thread
- Body or panel mounting, actuator travel and installed dimensions

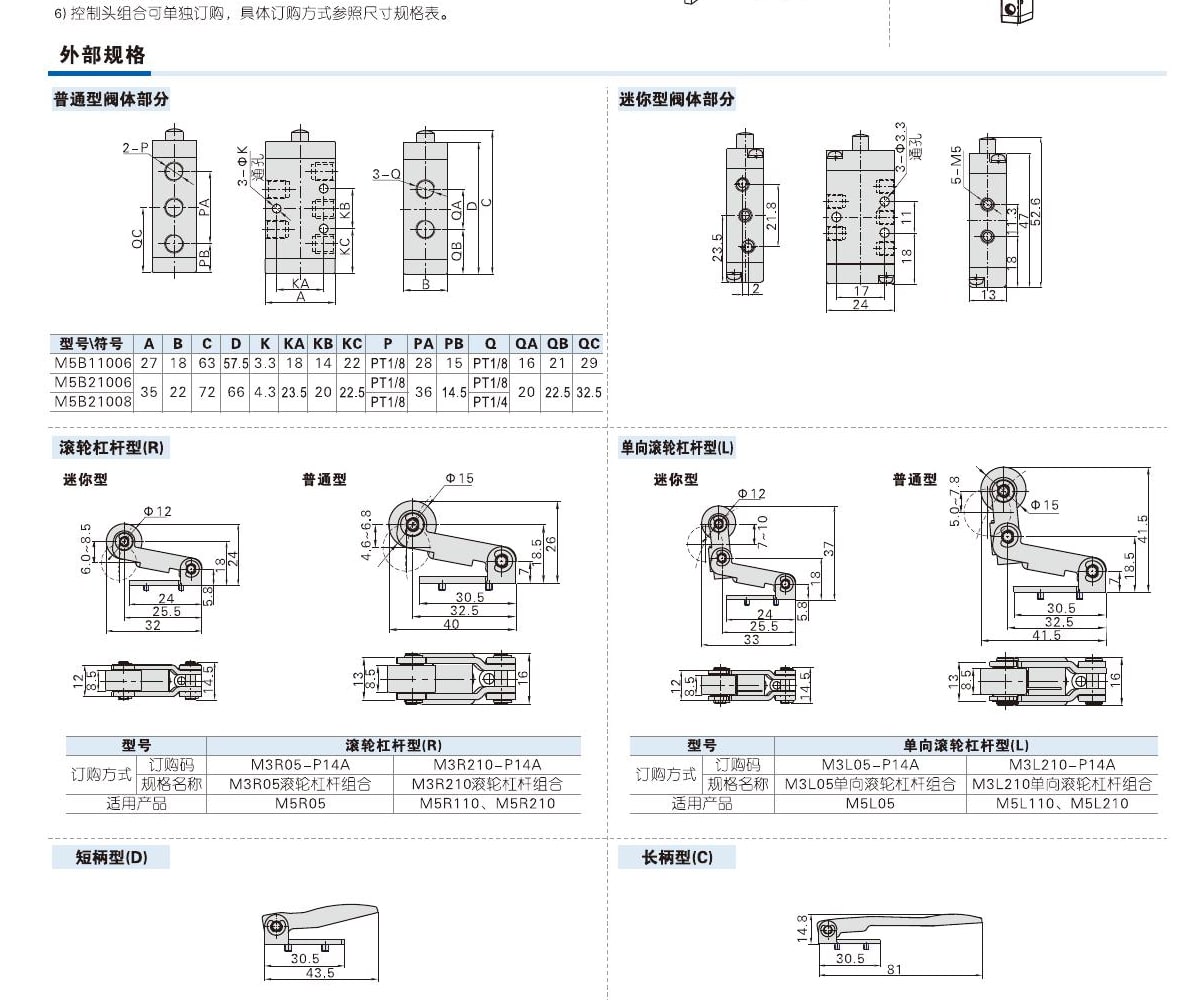

Drawing reference
- Confirm the M5 five-port, two-position body rather than an S3 or M3 valve
- Match 05 miniature or 110/210 form, actuator, port arrangement, button colour, thread and body or panel mounting
Key details for matching
Model patterns
- M5B110-06
- M5PM210-06-R
- M5R05
- M5L210-08-G
Reference details
- Product type: Five-port, two-position externally actuated mechanical valve
- Published body forms: 05 miniature; 110 and 210 standard
- Published ports: 05: M5; standard: PT1/8 or PT1/4
- Published operating / proof pressure: 0–1.0 MPa / 1.5 MPa
- Reference pages: PDF pages 7–9
Matching Questions
Can an M5 valve be matched by body size alone?
No. The five-port layout, 05/110/210 body form, actuator, port size and installed mounting arrangement all affect the match. Send the full code or a...
M5
Include this series in a project RFQ
M5 Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
