AirTAC PCV Pilot Check Valves
PCV is a pilot-operated check-valve family for pressure holding and controlled release. Confirm port, pilot connection form, thread and circuit arrangement before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
PCVManual, Mechanical, and Special Valves

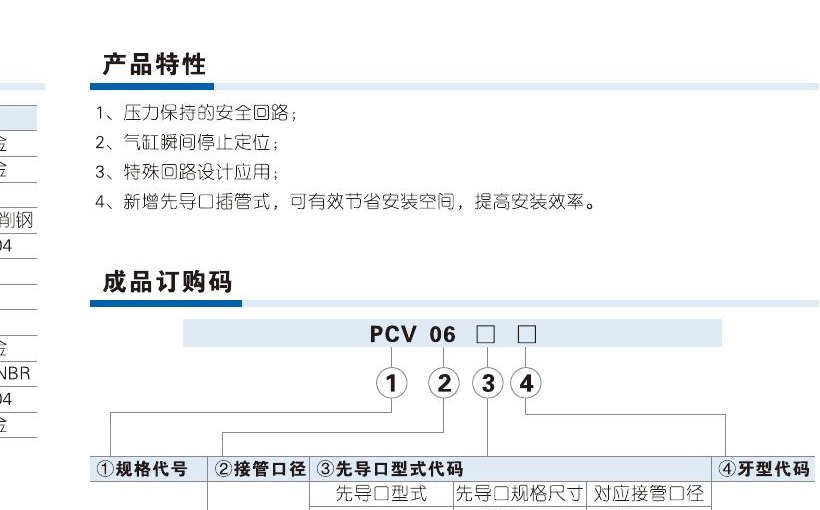

Ordering code matching
Match each code segment
Code format
PCV [06/08/10/15] [internal-thread / F quick-plug pilot] [PT/G/NPT]Published PCV code layoutPCV06PCV08FPCV10PCV15F| ①Valve family | ②Port | ③Pilot connection | ④Thread |
|---|---|---|---|
| PCV pilot-operated check valve. | 06 PT1/8; 08 PT1/4; 10 PT3/8; 15 PT1/2. | Blank internal-thread form; F quick-plug form. Match the pilot interface and corresponding main port. | Blank PT; G G-thread; T NPT. |
About PCV
PCV provides pressure holding and releases through its pilot circuit. The source publishes internal-thread and quick-plug pilot forms; retain that connection form, circuit arrangement, port and thread when matching.
Product matching reference
Compare the photo, drawing, and measurable details first

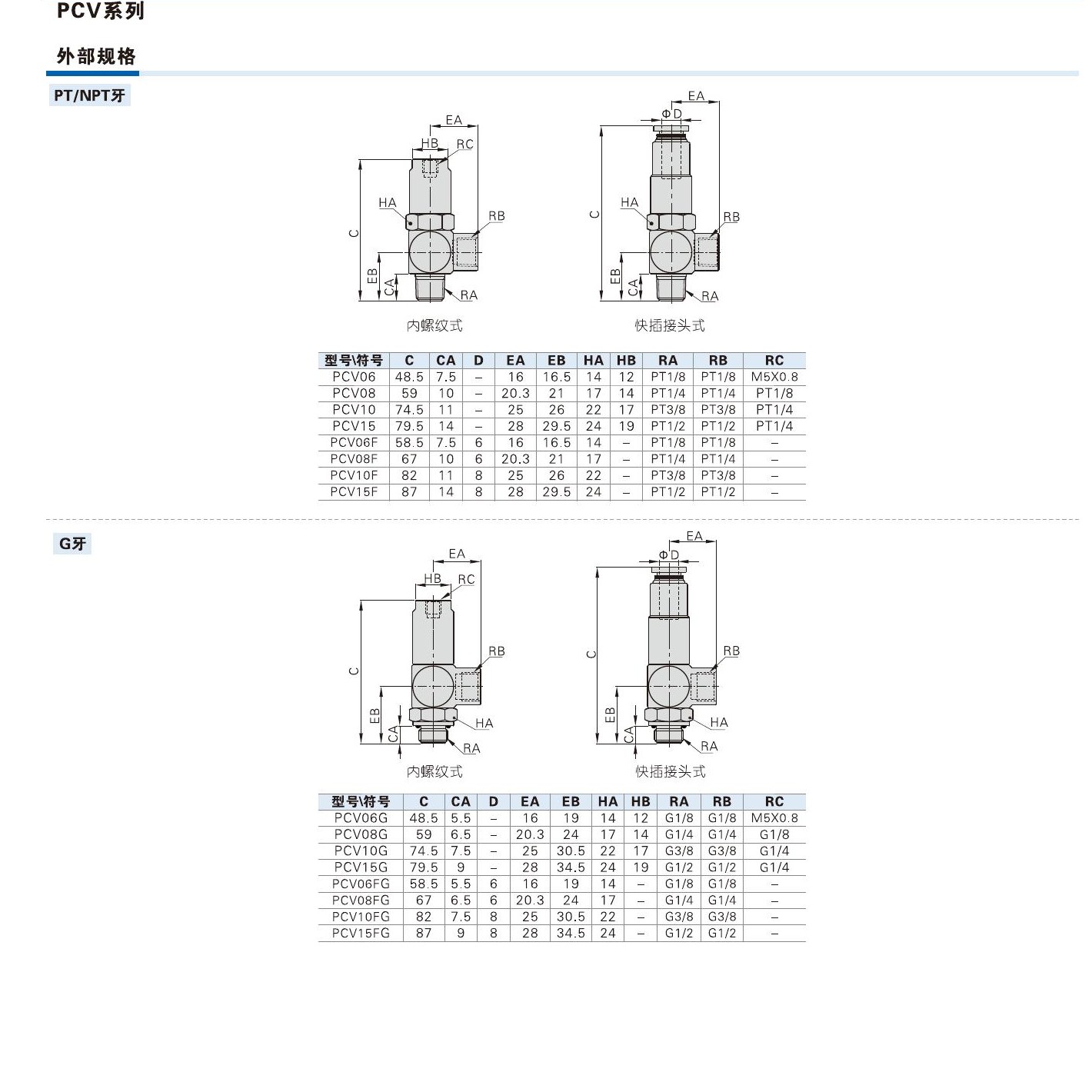

Drawing reference
- Confirm PCV06, PCV08, PCV10 or PCV15 pilot-operated check valve
- Match internal-thread or F quick-plug pilot form, main port, thread and circuit arrangement
Key details for matching
Model patterns
- PCV06
- PCV08
- PCV10
- PCV15

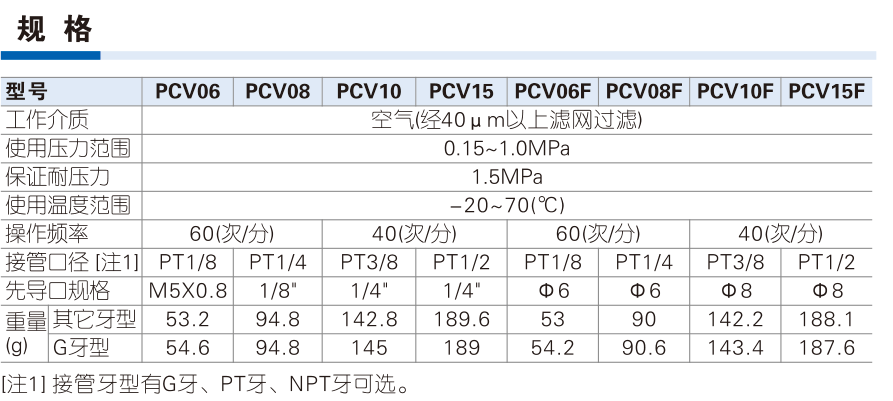

Reference details
- Product type: Pilot-operated check valve
- Published ports: PT1/8, PT1/4, PT3/8, PT1/2
- Published operating / proof pressure: 0.15–1.0 MPa / 1.5 MPa
- Reference pages: PDF pages 5–6
Matching Questions
Is PCV the same as a basic check valve?
No. PCV has a pilot-controlled release function. Confirm the pilot connection form and circuit arrangement rather than matching only the main port.
