S3 is a three-port, two-position externally actuated mechanical-valve family. Match the actuator form, port, button colour, thread and mounting arrangement before RFQ.
Ordering code matching

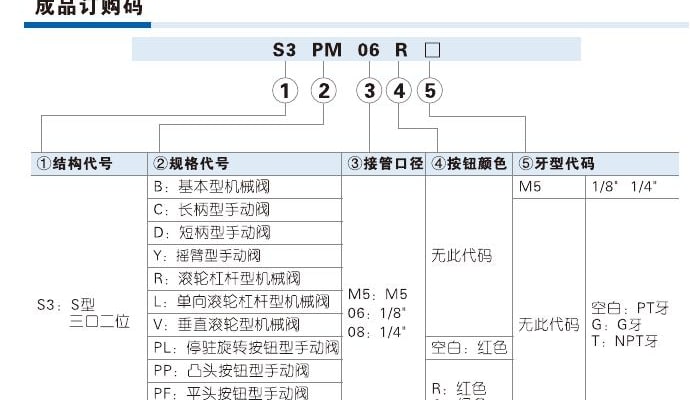

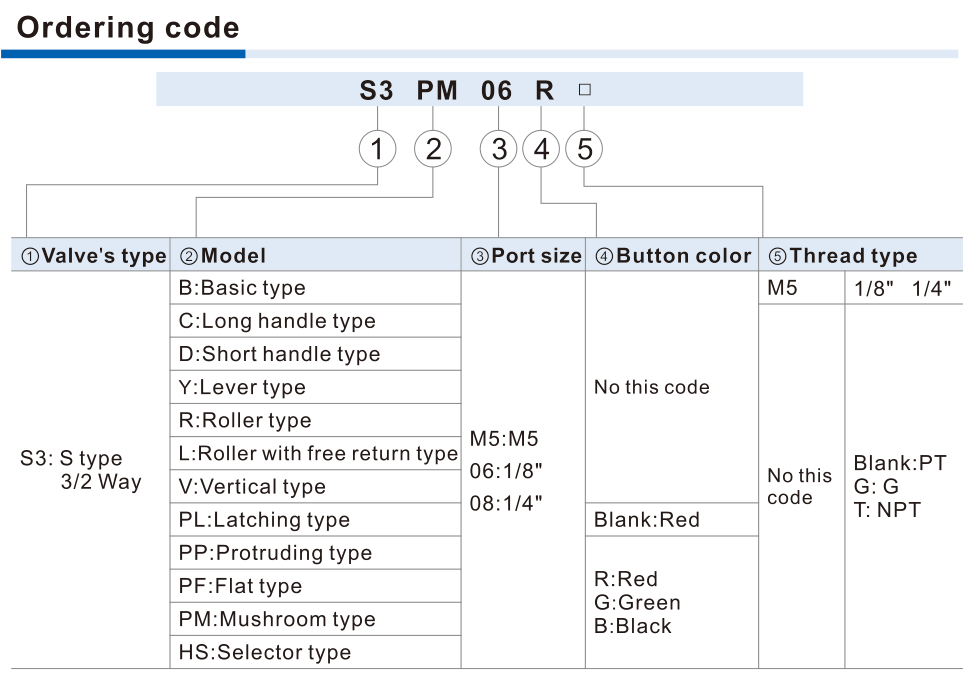

Code format
S3 [actuator] [M5/06/08] [button colour] [PT/G/NPT]Published S3 code layoutS3B-06S3PM-06-RS3L-08-G| ①Actuator | ②Port | ③Button / thread |
|---|---|---|
| B/C/D/Y/R/L/V/PL/PP/PF/PM/HS identify the published mechanical form. | M5, 06 PT1/8, or 08 PT1/4. | Where published: blank/R/G/B button colour; blank PT, G G-thread, T NPT. |

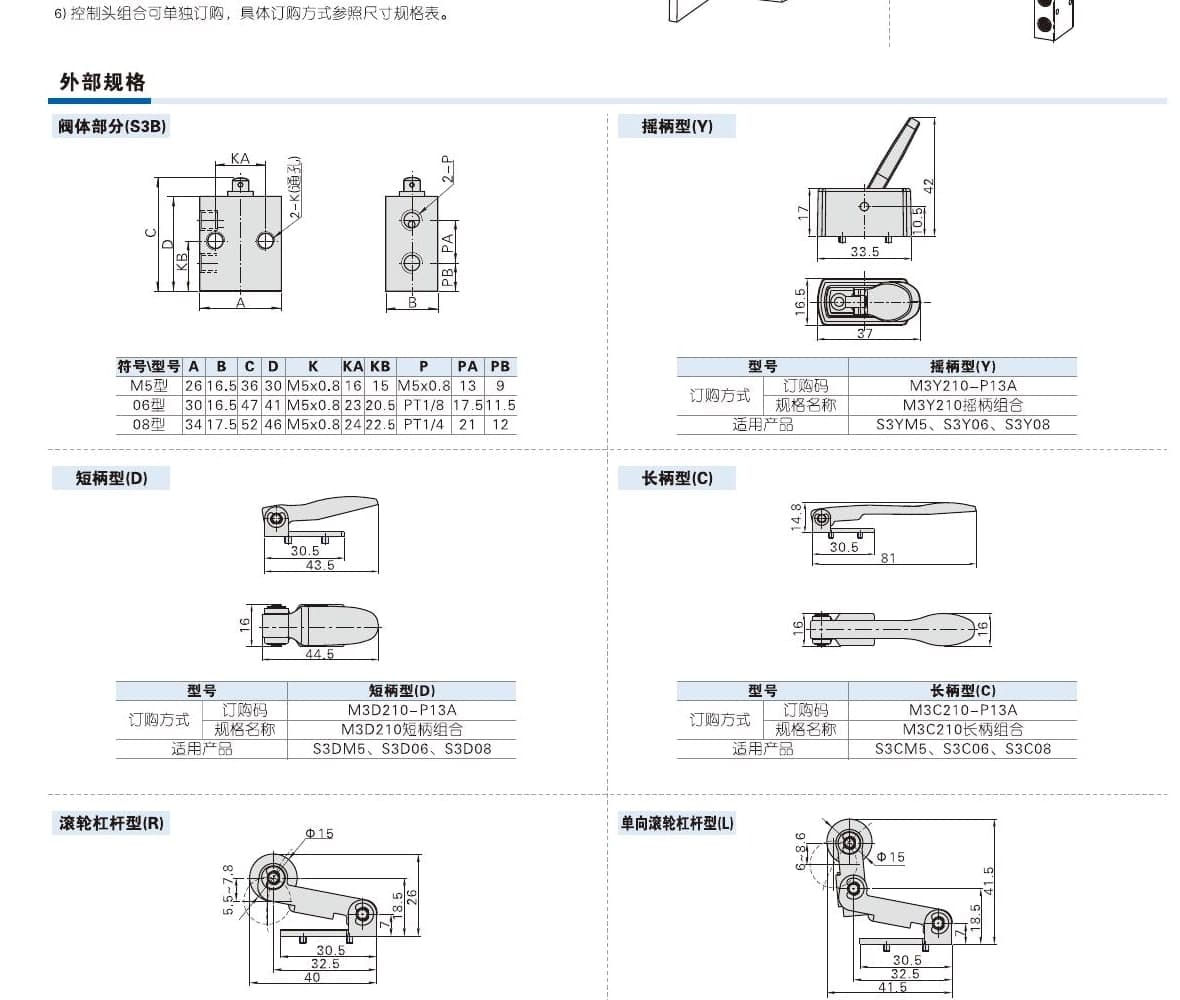

A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.

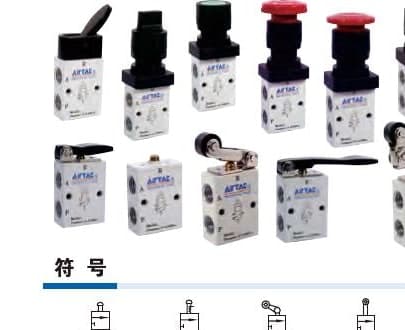

S3B / S3R / S3L / S3V
Externally actuated basic, roller and lever forms
S3C / S3D / S3Y / S3PL / S3PP / S3PF / S3PM / S3HS
Manual pushbutton, lever and rotary forms
S3 is a three-port, two-position mechanical-valve family. The source groups basic, lever, roller, pushbutton and rotary actuator forms on one body platform; those actuator choices remain family code fields rather than separate product pages. Confirm the installed actuator and port together, since neither can be inferred safely from the S3 prefix alone.
Product matching reference
No. The source publishes different roller, lever, pushbutton and rotary forms, with their own operating travel and mounting details. Match the...
S3
