ZM3 is a heavy-duty three-port, two-position mechanical-valve family with roller and contact-adjustable control-head forms. Confirm the head style, angle, installed linkage direction and...
Ordering code matching

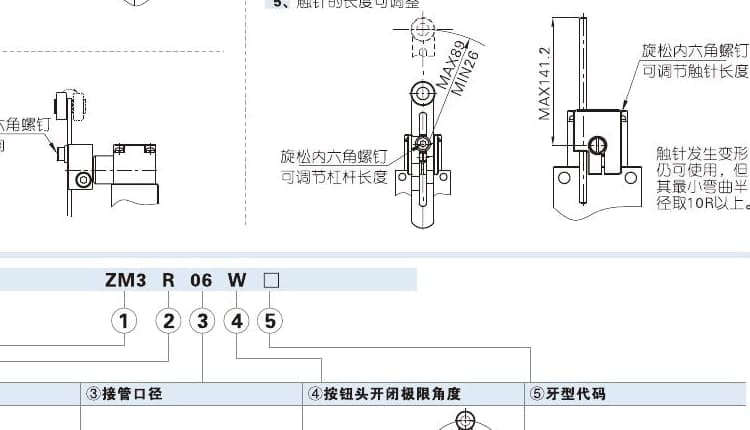

Code format
ZM3 [R/J/P] 06 [blank/W] [PT/G/NPT]Published ZM3 code layoutZM3R-06ZM3R06-WZM3J-06ZM3P06-G| ①Control head | ②Port | ③Angle / thread |
|---|---|---|
| R roller lever; J adjustable roller lever; P contact-adjustable. | 06 PT1/8. | Blank standard; W wide-angle; blank PT, G G-thread, T NPT. |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.

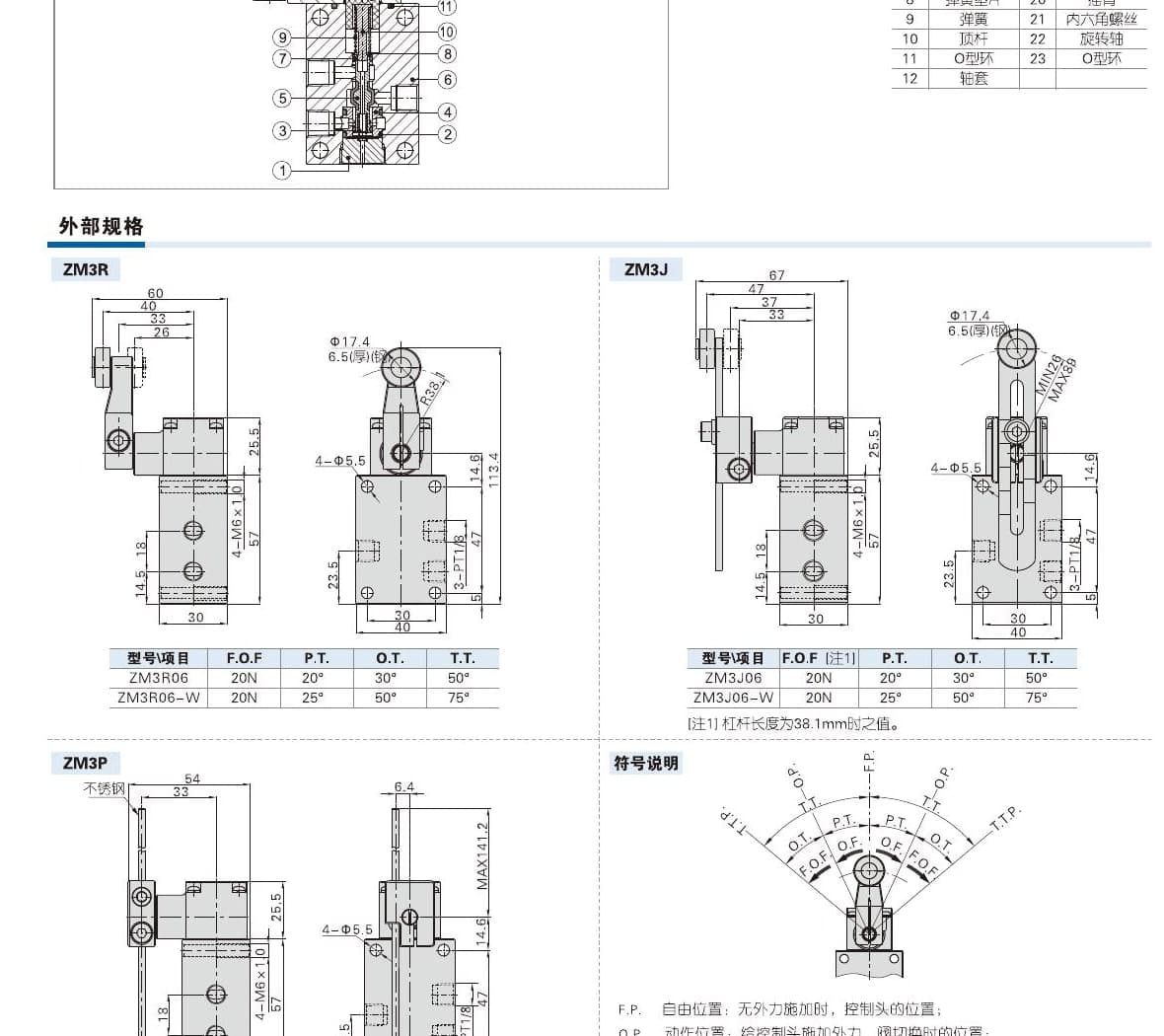

ZM3R
Roller-lever form
ZM3J
Adjustable roller-lever form
ZM3P
Contact-adjustable form
ZM3 is a heavy-duty three-port, two-position mechanical-valve family. Its R roller lever, J adjustable roller lever and P contact-adjustable forms are distinct mechanical interfaces; the source also shows standard and W wide-angle forms. Match the linkage direction and operating angle from the installed assembly instead of selecting by port alone.
Product matching reference
No. The source distinguishes standard and wide-angle control-head forms, and the installed linkage direction also matters. Use the full code,...
ZM3
