Home/Product Series/AirTAC Sourcing/Other Air Treatment Series/GS / GF / GU / GP
AirTAC sourcing reference•Other Air Treatment Series
SERIESGS / GF / GU / GP

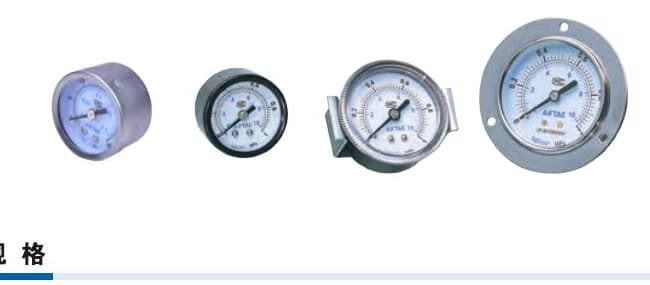

AirTAC GS GF GU GP Pressure Gauges

GS GF GU GP positive-pressure gauge photographs
Series product image
Request a QuoteWhatsAppSend a Photo — We’ll Help Identify It

Positive-pressure gauges with standard, flange, panel or stainless-steel construction. Match...

Official reference

Based on manufacturer documentation

Model support

For model confirmation

Parts lists

Code, photo, or BOM

Availability / lead time

By model and quantity

Sourcing route & inquiry details

Positive-pressure gauges with standard, flange, panel or stainless-steel construction. Match diameter, range, scale and thread. Send your full F-G code or gauge photo for a quote.

Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

Request type
AirTAC originalModel matchingChina-source alternative

Find your GS / GF / GU / GP type

Choose a type; send a model or photo if unsure.

GS30

1/16 port · Standard

GS40

1/8 port · Standard

GS50

1/4 port · Standard

GF40

1/8 port · Flange

GF50

1/4 port · Flange

GF60

1/4 port · Flange

GU40

1/8 port · Panel

GU50

1/4 port · Panel

GU60

1/4 port · Panel

GP30

1/8 port · Stainless steel

GP40

1/8 port · Stainless steel

Request a QuoteSend a Photo — We’ll Help Identify It →

Send the model, quantity and destination. For multiple items, attach a parts list or BOM.

Gauge model details

Drawings & dimensions

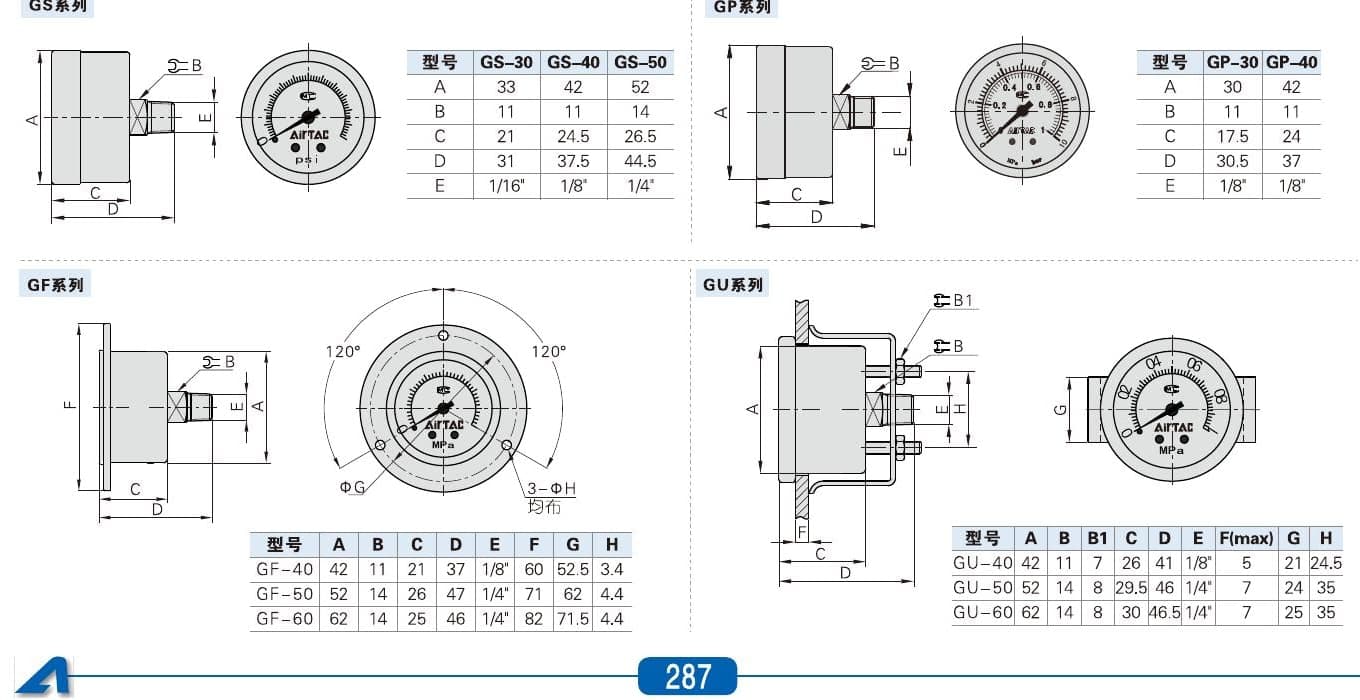

Installation Drawings & Technical Specifications

Compare installed dimensions
Full View
GS GF GU specification table ports scales temperatureClick to open full drawing ↗

GS GF GU specification table ports scales temperature

Helpful for Model Matching:

  • Full F-G code,quantity and destination
  • Positive-pressure direction;vacuum GV is separate
  • Mount and published diameter
  • Port size,thread,range and scale together
  • Compare installation drawing and flange/panel clearances
  • Match pressure direction,family and complete scale/thread
  • Match diameter,port and mounting drawing

Catalogue Technical Specifications

AirTAC reference data
MediumAir / Druckluft
Accuracy class2.5
Positive-pressure temperature−40–70°C
GS diameters30 / 40 / 50 mm
GF/GU diameters40 / 50 / 60 mm
GP diameters and port30 / 40 mm;1/8
GS30 port1/16
40mm GS/GF/GU port1/8
50/60mm GS/GF/GU port1/4
S/F/U ranges0–0.4 / 0–1.0 MPa
GP ranges0–0.2 / 0–0.4 / 0–1.0 MPa
Common Model Codes & Configurations:Useful for an RFQ
GSGFGUGP

Send the model code, quantity and destination, or attach a parts list.

WhatsAppQuote BOM
Technical reference & selection notes

Ordering Codes, Fit Verification & Specifications

Specifications, installation dimensions, and ordering-code notes.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

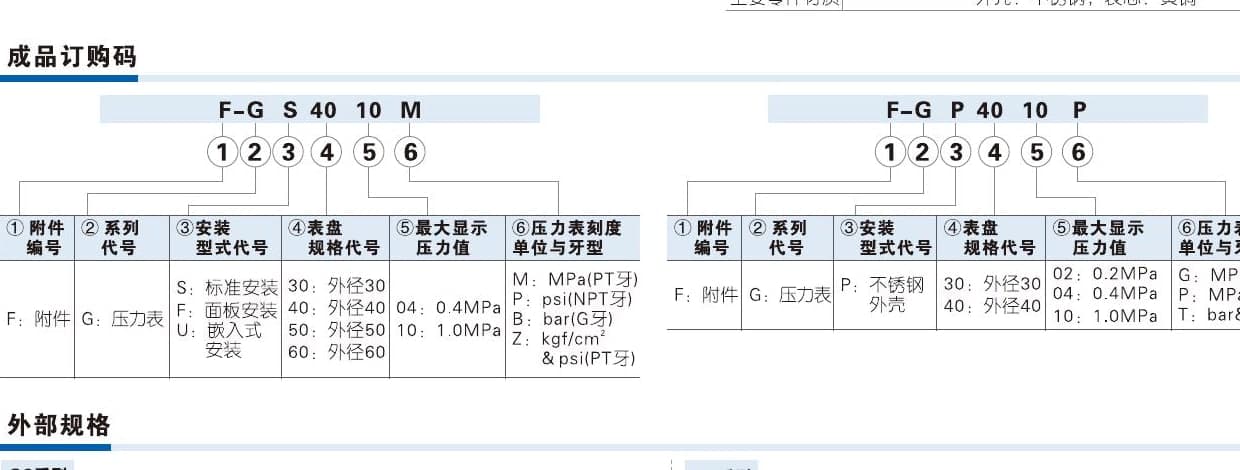

Code format

F-G[S/F/U][published diameter][04/10][M/P/B/Z]Standard/flange/panel gauges
F-GP[30/40][02/04/10][G/P/T]Stainless steel positive-pressure gauges
F-GS4010MF-GF5004BF-GP3002G
①–④Mount and diameter⑤–⑥Range, scale and thread
F-G accessory gauge;S standard30/40/50,F flange40/50/60,U panel40/50/60;P stainless30/40. No GS60/GF30/GU30 published.S/F/U:04/10 and M/PT,P/NPT,B/G,Z/PT. GP:02/04/10 and G/G,P/PT,T/NPT. Full range and scale fields required.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

F-GS4010M

Mount and diameterMount and diameter

F-G accessory gauge;S standard30/40/50,F flange40/50/60,U panel40/50/60;P stainless30/40. No GS60/GF30/GU30 published.

Range, scale and threadRange, scale and thread

S/F/U:04/10 and M/PT,P/NPT,B/G,Z/PT. GP:02/04/10 and G/G,P/PT,T/NPT. Full range and scale fields required.

About GS / GF / GU / GP

GS standard mount, GF flange mount and GU panel mount use steel shells and brass cores. GS30/40/50,GF40/50/60,GU40/50/60 are the published sizes; GP30/40 have stainless steel shells and brass cores. GS30 uses1/16 port;40mm GS/GF/GU1/8;50/60mm1/4;GP1/8. Accuracy class2.5 and−40–70°C apply to positive-pressure gauges. GS/GF/GU range04 is0–0.4MPa and10 is0–1.0MPa, with M MPa/PT,P psi/NPT,B bar/G,Z kgf/cm²+psi/PT scales. GP has02/04/10 ranges0–0.2/0.4/1.0MPa and G MPa+bar/G,P MPa+psi/PT,T bar+psi/NPT. Catalogue secondary scales use rounded conversions; tighter accuracy or liquid compatibility requires separate confirmation. GV40 vacuum gauges have a separate family and temperature range. Send a complete F-G code, quantity and destination, or a face/connection photo.

Matching Questions

Are G and P suffixes interchangeable?

No. For GS/GF/GU the scale suffix maps M/Z to PT,P to NPT,B to G. For GP the fields are G to G,P to PT,T to NPT. Match the complete family,range and thread.

Are GV vacuum gauges part of this gauge family?

GV40 vacuum gauges belong to their own family. Their −100–0kPa range and−20–70°C temperature differ from these positive-pressure gauges.

GS / GF / GU / GP

Include this series in a project RFQ

GS / GF / GU / GP Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quoteWhatsAppSend a parts list or BOM
Confirm inspection requirements before quotation•Specify shipping preference•Confirm timing in the quotation•Ocean & Rail Available
