Choose the SDR family first
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
SDR100
100 size regulator
SDR200
200 size regulator
AirTAC SDR Air Pressure Regulators
SDR is a compact air-pressure regulator family in 100 and 200 sizes. Confirm the standard or low-pressure form, port, gauge, bracket and thread before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
SDROther Air Treatment Series

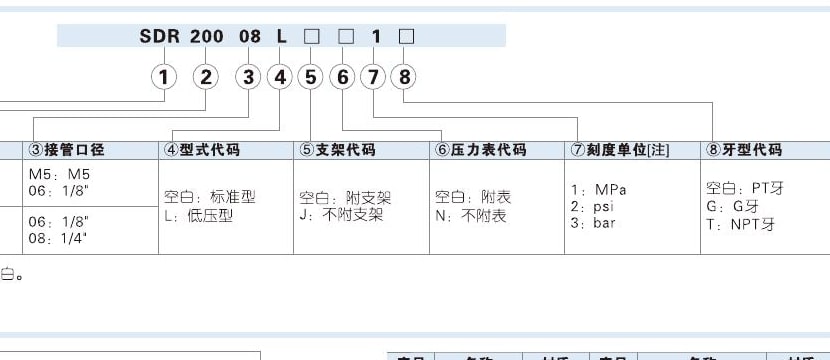

Ordering code matching
Match each code segment
Code format
SDR [100/200] [M5/06/08] [blank/L] [bracket] [gauge] [unit] [PT/G/NPT]Published SDR code layoutSDR100M5SDR10006SDR20008SDR20008L| ①Size / port | ②Pressure form | ③Options |
|---|---|---|
| 100 or 200; M5, 06 PT1/8, 08 PT1/4. | Blank standard; L low-pressure. | Bracket, gauge, unit and thread must match the full code. |
About SDR
SDR100 and SDR200 are compact regulators. Standard models publish a 0.05–0.9 MPa adjustment range; L low-pressure models publish 0.03–0.4 MPa. A gauge, bracket, gauge scale and thread are code-level choices, not separate product pages.
Product matching reference
Compare the photo, drawing, and measurable details first
Identify from the photo
- Complete SDR code or readable label
- 100 or 200 size
- Standard or L low-pressure form
- M5, PT1/8 or PT1/4 port
- Gauge/bracket requirement, gauge unit and PT/G/NPT thread

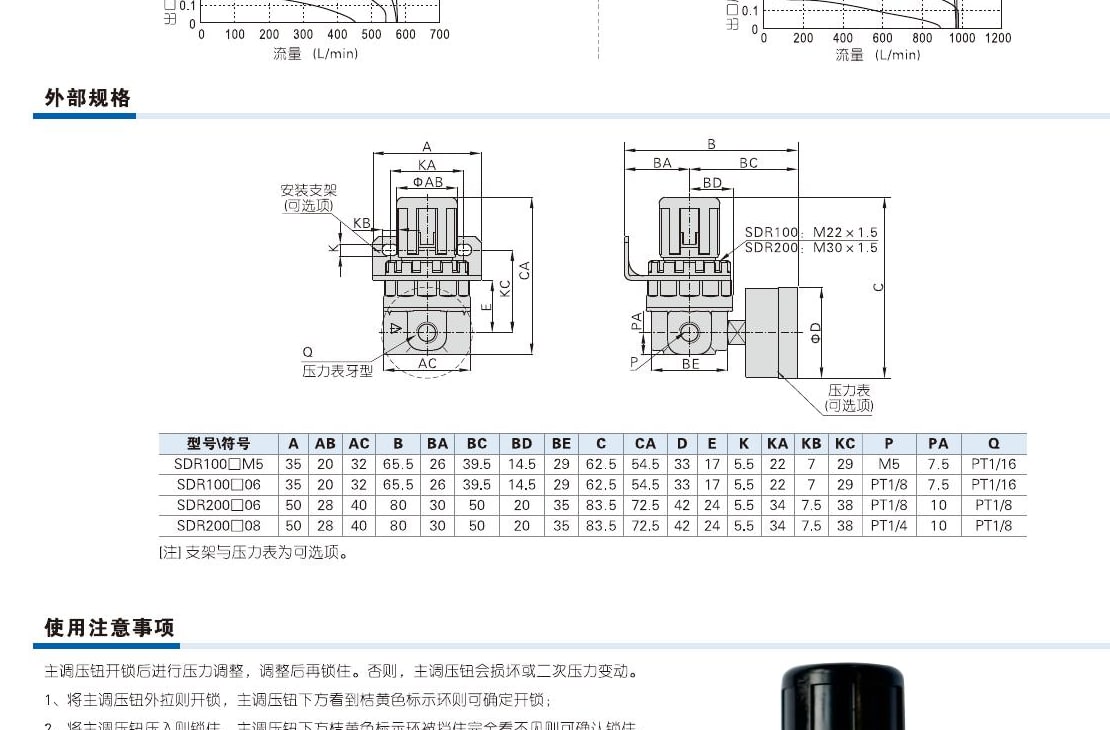

Drawing reference
- Confirm SDR100 or SDR200 regulator and standard or L low-pressure form
- Match M5/06/08 port, optional bracket/gauge, gauge unit and PT/G/NPT thread
Key details for matching
Model patterns
- SDR100M5
- SDR10006
- SDR20008
- SDR20008L
Reference details
- Product type: Compact air pressure regulator
- Published adjustment range: Standard 0.05–0.9 MPa; L low pressure 0.03–0.4 MPa
- Published maximum / proof pressure: 1.0 MPa / 1.5 MPa
- Reference pages: PDF pages 1–2
Matching Questions
Is an SDR low-pressure L model interchangeable with a standard SDR?
No. The published adjustment ranges differ. Confirm the full code, required outlet pressure, port and gauge arrangement before RFQ.
SDR
Include this series in a project RFQ
SDR Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
