Non-relieving regulators for clean air, nitrogen and pure water. Five PT body/port pairs, PTFE diaphragm and 0.05–0.7 MPa range. Send a model, photo or parts list for a quote.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Choose a type; send a model or photo if unsure.
SM-ARH200-06
PT1/8 · 83.5 mm reference height
SM-ARH200-08
PT1/4 · 83.5 mm reference height
SM-ARH300-08
PT1/4 · 102.5 mm reference height
SM-ARH300-10
PT3/8 · 102.5 mm reference height
SM-ARH300-15
PT1/2 · 102.5 mm reference height
Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
SM-ARH five PT ports and clean-media specifications
Helpful for Model Matching:
| Media | Clean air / N₂ / pure water |
| Structure | Non-relieving / nicht entlüftend |
| Diaphragm | PTFE |
| Pressure range | 0.05–0.7 MPa |
| Maximum operating pressure | 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | 0–60°C (no freezing / ohne Gefrieren) |
| Gauge connection both bodies | PT1/4 |

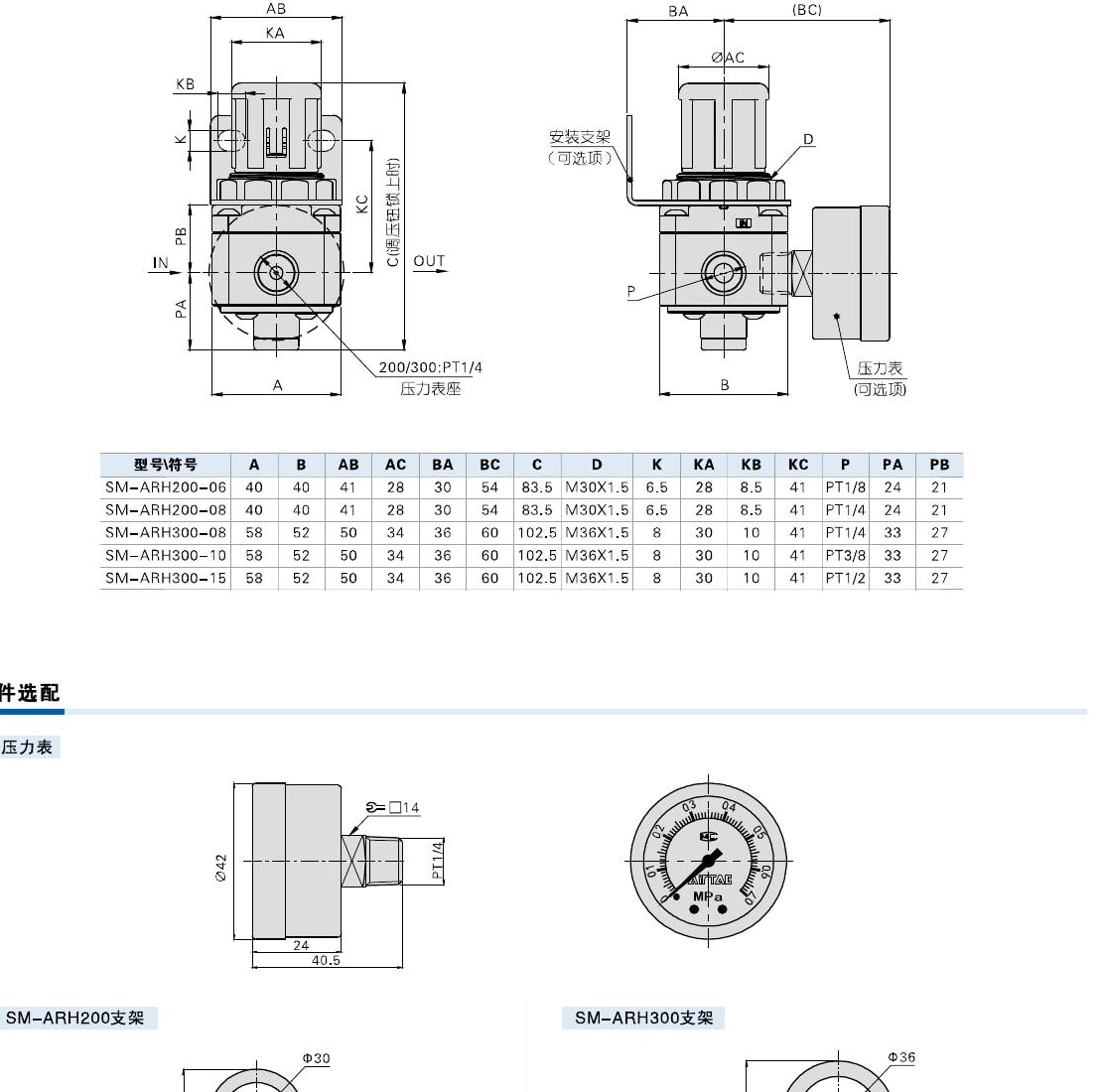

| Reference height C200 /300 | 83.5 /102.5 mm |
| Width A200 /300 | 40 /58 mm |
Ordering code matching
Code format

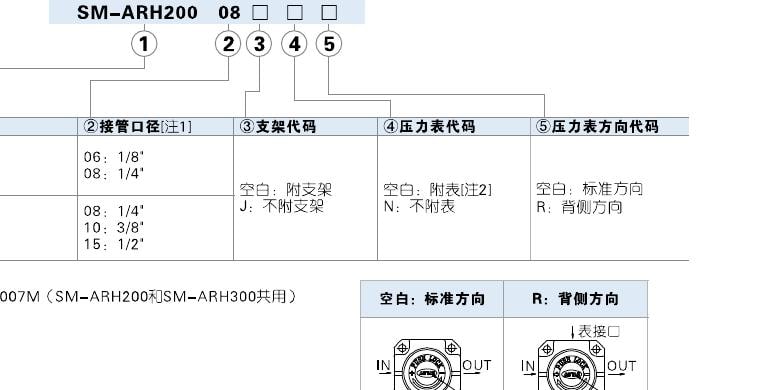

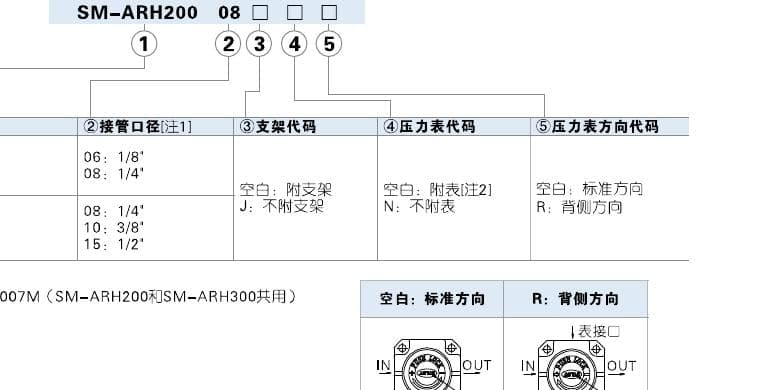

SM-ARH[200/300]-[published PT port][blank/J][blank/N][blank/R]Five catalogue fields;no thread suffix publishedSM-ARH200-06SM-ARH300-10JNR| ①–②Body and PT main port | ③–④Bracket and gauge | ⑤Gauge direction |
|---|---|---|
| 200:06/08;300:08/10/15.06=1/8,08=1/4,10=3/8,15=1/2. Only PT. | Blank with bracket;J without. Blank with F-GSM-ARH4007M gauge;N without. | Blank standard direction;R reverse direction. Compare IN/OUT and gauge orientation in the source diagram. |
If the label is incomplete, send the readable parts together with a photo.
SM-ARH300-10JNRBody and PT main portBody and PT main port
200:06/08;300:08/10/15.06=1/8,08=1/4,10=3/8,15=1/2. Only PT.
Bracket and gaugeBracket and gauge
Blank with bracket;J without. Blank with F-GSM-ARH4007M gauge;N without.
Gauge directionGauge direction
Blank standard direction;R reverse direction. Compare IN/OUT and gauge orientation in the source diagram.
SM-ARH200 and 300 are non-relieving clean-media pressure regulators for clean air, N₂ and pure water. The PTFE diaphragm and lubricant-free fluid-contacting parts are published features; assembly and packaging take place in a clean room. Pressure range 0.05–0.7 MPa, maximum operating pressure 1.0 MPa, proof pressure 1.5 MPa, temperature 0–60°C without freezing. Only PT ports are published; G/NPT suffixes are not verified. Blank includes bracket and gauge, J omits bracket, N omits gauge; R reverses gauge direction. Both bodies use the F-GSM-ARH4007M gauge and a PT1/4 gauge connection. Reference curves distinguish air and pure water at 0.7 MPa inlet; they do not establish a single universal rated flow. Send the full code, quantity and destination; incomplete labels or photos are welcome.
This catalogue specifies PT only. G or NPT requests can be sent with a label or drawing for help;they are not automatically recognized as published models.
R changes the gauge direction to the reverse arrangement shown in the ordering diagram. It does not change the published pressure range or medium.
The source shows separate air and pure-water curves for each body at 0.7 MPa inlet. Compare the appropriate curve;no universal rated flow is inferred.
