AirTAC PA12 and PA6 nylon tubing in five verified OD/ID pairs, OD 4–12 mm. Match grade-specific pressure/temperature, bend radius, coil length and color before quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

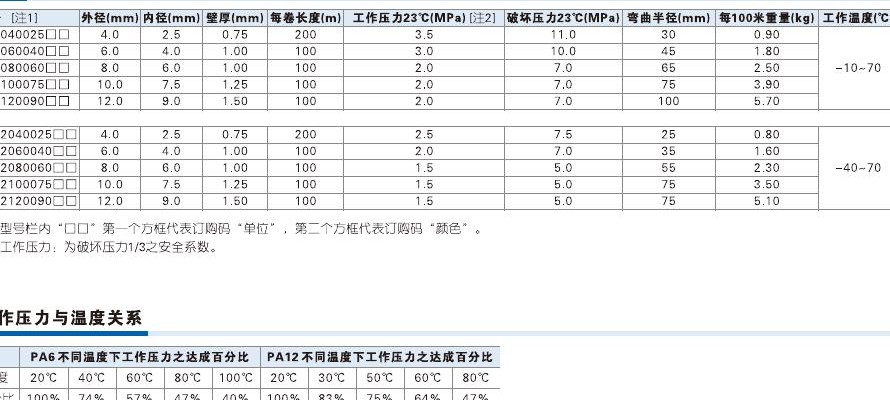

AirTAC PA12 PA6 specifications official English reference
Helpful for Model Matching:
| Material identity | PA6 is Nylon 6; PA12 is Nylon 12. They have separate pressure, temperature and bend-radius rows. PA is a broad material label, not a complete series/order code. UN54D flame resistance is not a PA6/PA12 claim. |
| OD / ID and wall | Both grades: OD/ID 4/2.5, 6/4, 8/6, 10/7.5, 12/9 mm; wall 0.75, 1.00, 1.00, 1.25, 1.50 mm respectively. Published scope stops at OD 12 mm; no OD 16 mm, arbitrary ID or inch size inferred. |
| Working and burst pressure at 23°C | At OD 4/6/8/10/12 mm, PA6 working 3.5/3.0/2.0/2.0/2.0 MPa, burst 11/10/7/7/7 MPa. PA12 working 2.5/2.0/1.5/1.5/1.5 MPa, burst 7.5/7/5/5/5 MPa. Burst pressure is not an operating limit. Do not use one maximum pressure for every grade/size. |
| Temperature and derating | Specification range PA6 −10 to 70°C, PA12 −40 to 70°C. Derating table: PA6 20/40/60°C =100/74/57%; PA12 20/30/50/60°C =100/83/75/64%. The source also prints higher-temperature derating points beyond the specification range; these do not extend the rated 70°C maximum. Confirm actual pressure-temperature duty; no 100°C rating inferred. |
| Length and color | 4×2.5 mm is 200M (200 m/coil); all other published sizes 100M. Both grades: BU Blue, BK Black, GE Orange, N Clear, WH White, GN Green, R Red, Y Yellow. N means clear color, not an alternative material. No cut-length supply promise. |
| Bend radius | At OD 4/6/8/10/12 mm, PA6 bend radius 30/45/65/75/100 mm, PA12 25/35/55/75/75 mm. Verify fitting OD/ID, actual bend space, fluid compatibility and installation; no universal food/brake/certified flame rating or quantified moisture absorption claim is inferred. |
| RFQ inputs | Send full PA6/PA12 code or label, OD/ID, coil length/color, fluid, actual pressure/temperature, fitting and bend-space requirement, quantity and destination. Availability, special length and application fit are inquiry confirmations. |

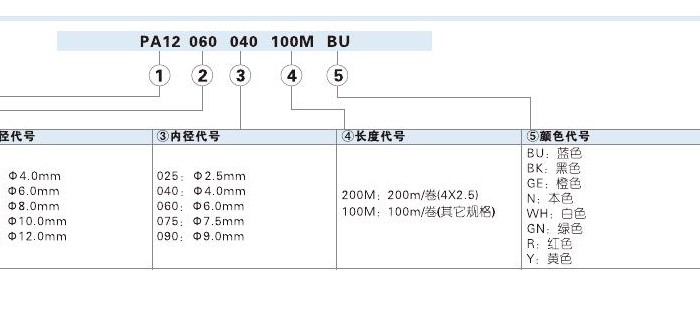

Ordering code matching
Code format
[PA6/PA12][040025/060040/080060/100075/120090][200M/100M][BU/BK/GE/N/WH/GN/R/Y]Use only published dimension/length combinations.PA12060040100MBUPA6040025200MBKPA6120090100MGE| 1Grade and dimensions | 2Length and color | 3Duty conditions |
|---|---|---|
| PA6 is Nylon 6; PA12 is Nylon 12. They have separate pressure, temperature and bend-radius rows. PA is a broad material label, not a complete series/order code. UN54D flame resistance is not a PA6/PA12 claim. Both grades: OD/ID 4/2.5, 6/4, 8/6, 10/7.5, 12/9 mm; wall 0.75, 1.00, 1.00, 1.25, 1.50 mm respectively. Published scope stops at OD 12 mm; no OD 16 mm, arbitrary ID or inch size inferred. | 4×2.5 mm is 200M (200 m/coil); all other published sizes 100M. Both grades: BU Blue, BK Black, GE Orange, N Clear, WH White, GN Green, R Red, Y Yellow. N means clear color, not an alternative material. No cut-length supply promise. | At OD 4/6/8/10/12 mm, PA6 working 3.5/3.0/2.0/2.0/2.0 MPa, burst 11/10/7/7/7 MPa. PA12 working 2.5/2.0/1.5/1.5/1.5 MPa, burst 7.5/7/5/5/5 MPa. Burst pressure is not an operating limit. Do not use one maximum pressure for every grade/size. Specification range PA6 −10 to 70°C, PA12 −40 to 70°C. Derating table: PA6 20/40/60°C =100/74/57%; PA12 20/30/50/60°C =100/83/75/64%. The source also prints higher-temperature derating points beyond the specification range; these do not extend the rated 70°C maximum. Confirm actual pressure-temperature duty; no 100°C rating inferred. |
If the label is incomplete, send the readable parts together with a photo.
PA12060040100MBU1Grade and dimensions
PA6 is Nylon 6; PA12 is Nylon 12. They have separate pressure, temperature and bend-radius rows. PA is a broad material label, not a complete series/order code. UN54D flame resistance is not a PA6/PA12 claim. Both grades: OD/ID 4/2.5, 6/4, 8/6, 10/7.5, 12/9 mm; wall 0.75, 1.00, 1.00, 1.25, 1.50 mm respectively. Published scope stops at OD 12 mm; no OD 16 mm, arbitrary ID or inch size inferred.
2Length and color
4×2.5 mm is 200M (200 m/coil); all other published sizes 100M. Both grades: BU Blue, BK Black, GE Orange, N Clear, WH White, GN Green, R Red, Y Yellow. N means clear color, not an alternative material. No cut-length supply promise.
3Duty conditions
At OD 4/6/8/10/12 mm, PA6 working 3.5/3.0/2.0/2.0/2.0 MPa, burst 11/10/7/7/7 MPa. PA12 working 2.5/2.0/1.5/1.5/1.5 MPa, burst 7.5/7/5/5/5 MPa. Burst pressure is not an operating limit. Do not use one maximum pressure for every grade/size. Specification range PA6 −10 to 70°C, PA12 −40 to 70°C. Derating table: PA6 20/40/60°C =100/74/57%; PA12 20/30/50/60°C =100/83/75/64%. The source also prints higher-temperature derating points beyond the specification range; these do not extend the rated 70°C maximum. Confirm actual pressure-temperature duty; no 100°C rating inferred.
AirTAC PA12 and PA6 nylon tubing in five verified OD/ID pairs, OD 4–12 mm. Match grade-specific pressure/temperature, bend radius, coil length and color before quotation.
No. At OD 6 mm and 23°C, PA6 working pressure is 3 MPa, PA12 2 MPa. Confirm the exact grade/size and actual temperature. Flame-resistant UN54D is a separate series, not a property established for PA6/PA12.
PA12
PA12 Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
