AirTAC AQK50 double-acting pin clamp cylinders combine workpiece locating and internal-arm clamping. Match guide pin, workpiece hole, arm angle, shim height and fixture mounting; send the complete code or drawing for quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
AirTAC AQK specifications official English reference
Helpful for Model Matching:

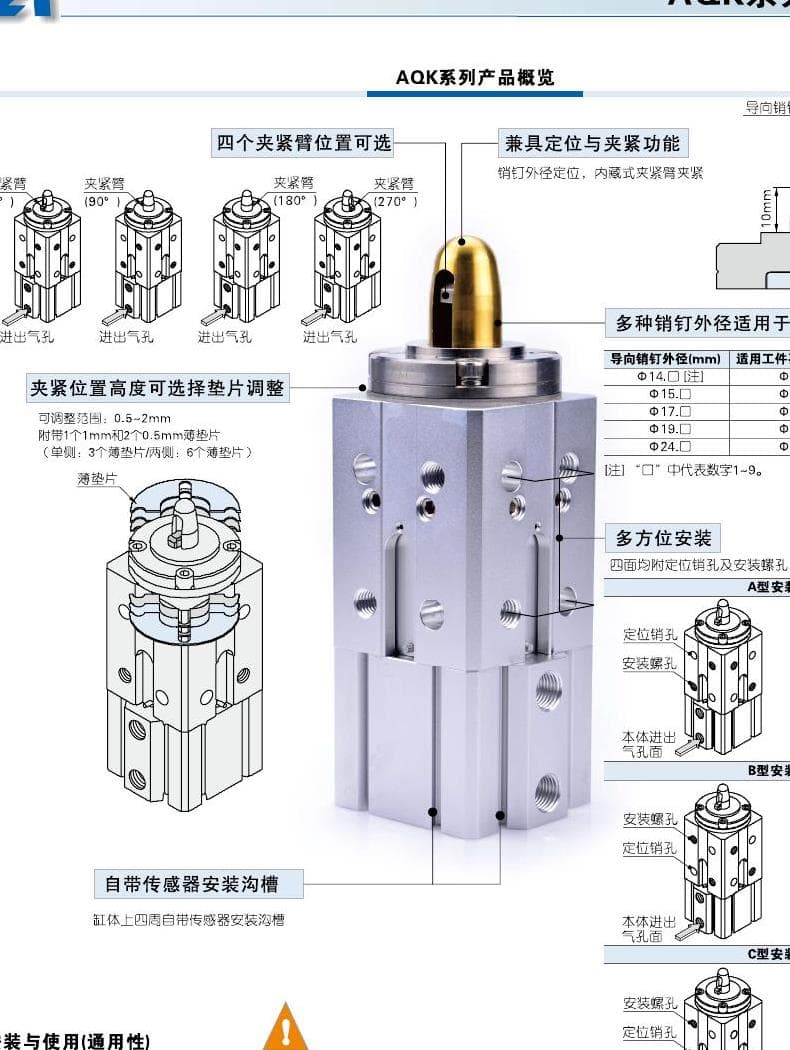

| Identity and bore | AQK locates the workpiece with a guide pin and clamps with an internal arm. Cylinder bore is50 mm, not the guide-pin diameter. Double acting, mandatory S magnet in published code. BAQK enclasp type is separate and not merged. |

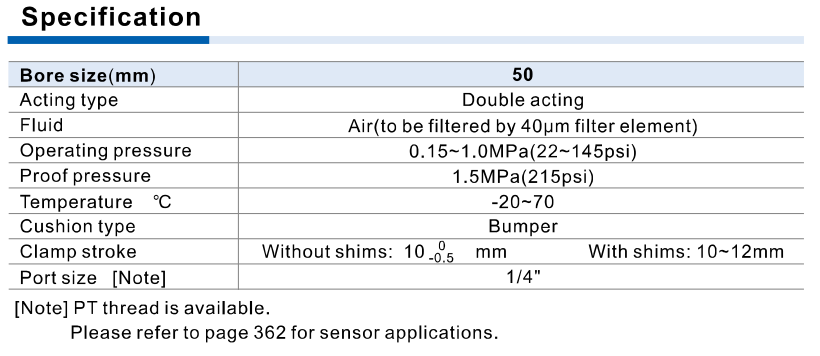

| Operating conditions | Operating0.15–1.0 MPa; proof1.5 separate. Air filtered40 μm; −20 to70°C, avoid freezing; bumper cushioning. No published universal clamping force or side-load rating. |

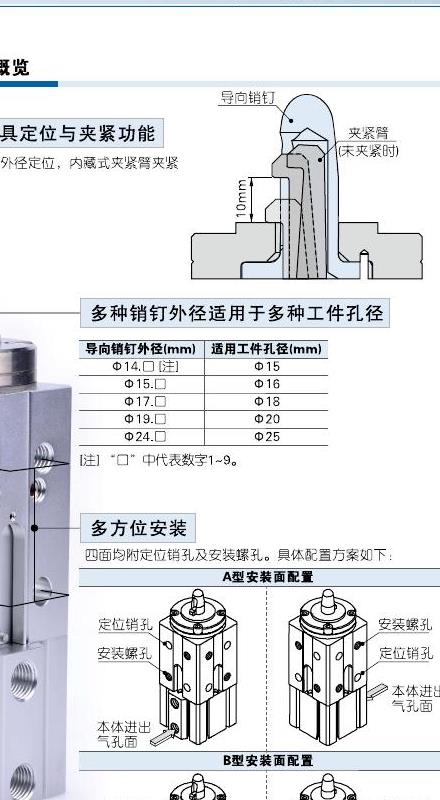

| Pin dimensions | Pin code14/15/17/19/24 plus decimal digit1–9:177 means17.7 mm pin. Corresponding workpiece holes15/16/18/20/25 mm. No-shim heights29 mm for14/15 or34 for17/19/24; shim2 heights31/36 respectively. Pin size and matching workpiece hole are distinct. |
| Clamp height and shims | Without shims clamp stroke10 +0/−0.5 mm; with shims10–12 mm. Shim2 is total2 mm supplied set (two0.5 mm plus one1 mm); adjustment0.5–2 mm. Source requires workpiece thickness below10 mm, up to12 mm with all shims removed. Confirm actual plate/shim stack and clamp height rather than treating2 as arbitrary stroke. |
| Mount and arm fields | Install A M10×1.5 or B M12×1.75, both Ø10 locating holes. Independent mount-groove A/B/C/D changes screw/locating-hole relation. Independent arm A/B/C/D is0/90/180/270° relative to inlet/outlet. These letter fields cannot be collapsed into one generic mounting choice. |
| Thread details differ between references | Ordering and specification publish blank PT1/4. Dimension notes additionally mention G and NPT selectable but no complete suffix grammar is shown. PT codes may be recognized; G/NPT requests retain original code and require confirmation, not a guessed suffix. |
| Sensor and installation | Sensor groove on four sides; source names CMSG(DMSG/EMSG), with interference-resistant sensor choice in strong magnetic environments separately confirmed. S magnet does not guarantee supplied switch/wire. Meter-out speed control is specified. Prevent chips/spatter entering guide pin opening and avoid scratching slide/rod. |
| Application and RFQ | Send full code, pin/workpiece-hole dimensions, sheet thickness/shims, arm orientation, mount-groove and screw pattern, welding/contact arrangement, sensor/port requirements, quantity and destination. Locating and clamping simultaneous: other application or welded contact geometry requires confirmation, not automatic fixture compatibility. |
Ordering code matching
Code format
AQK50S[install A/B][groove A–D][arm A–D][blank/2]-[pin14/15/17/19/24][1–9]X[height]Pin height must match shim state; blank PT only resolved.AQK50SAAA-177X340AQK50SBBD2-151X310AQK50SACA-249X340| 1Bore and magnet | 2Mount and arm | 3Shims and pin | 4Ports |
|---|---|---|---|
| AQK locates the workpiece with a guide pin and clamps with an internal arm. Cylinder bore is50 mm, not the guide-pin diameter. Double acting, mandatory S magnet in published code. BAQK enclasp type is separate and not merged. | Install A M10×1.5 or B M12×1.75, both Ø10 locating holes. Independent mount-groove A/B/C/D changes screw/locating-hole relation. Independent arm A/B/C/D is0/90/180/270° relative to inlet/outlet. These letter fields cannot be collapsed into one generic mounting choice. | Pin code14/15/17/19/24 plus decimal digit1–9:177 means17.7 mm pin. Corresponding workpiece holes15/16/18/20/25 mm. No-shim heights29 mm for14/15 or34 for17/19/24; shim2 heights31/36 respectively. Pin size and matching workpiece hole are distinct. Without shims clamp stroke10 +0/−0.5 mm; with shims10–12 mm. Shim2 is total2 mm supplied set (two0.5 mm plus one1 mm); adjustment0.5–2 mm. Source requires workpiece thickness below10 mm, up to12 mm with all shims removed. Confirm actual plate/shim stack and clamp height rather than treating2 as arbitrary stroke. | Ordering and specification publish blank PT1/4. Dimension notes additionally mention G and NPT selectable but no complete suffix grammar is shown. PT codes may be recognized; G/NPT requests retain original code and require confirmation, not a guessed suffix. |
If the label is incomplete, send the readable parts together with a photo.
AQK50SAAA-177X3401Bore and magnet
AQK locates the workpiece with a guide pin and clamps with an internal arm. Cylinder bore is50 mm, not the guide-pin diameter. Double acting, mandatory S magnet in published code. BAQK enclasp type is separate and not merged.
2Mount and arm
Install A M10×1.5 or B M12×1.75, both Ø10 locating holes. Independent mount-groove A/B/C/D changes screw/locating-hole relation. Independent arm A/B/C/D is0/90/180/270° relative to inlet/outlet. These letter fields cannot be collapsed into one generic mounting choice.
3Shims and pin
Pin code14/15/17/19/24 plus decimal digit1–9:177 means17.7 mm pin. Corresponding workpiece holes15/16/18/20/25 mm. No-shim heights29 mm for14/15 or34 for17/19/24; shim2 heights31/36 respectively. Pin size and matching workpiece hole are distinct. Without shims clamp stroke10 +0/−0.5 mm; with shims10–12 mm. Shim2 is total2 mm supplied set (two0.5 mm plus one1 mm); adjustment0.5–2 mm. Source requires workpiece thickness below10 mm, up to12 mm with all shims removed. Confirm actual plate/shim stack and clamp height rather than treating2 as arbitrary stroke.
4Ports
Ordering and specification publish blank PT1/4. Dimension notes additionally mention G and NPT selectable but no complete suffix grammar is shown. PT codes may be recognized; G/NPT requests retain original code and require confirmation, not a guessed suffix.
AirTAC AQK50 double-acting pin clamp cylinders combine workpiece locating and internal-arm clamping. Match guide pin, workpiece hole, arm angle, shim height and fixture mounting; send the complete code or drawing for quotation.
No. AQK has50 mm cylinder bore and separate decimal guide-pin fields. Complete mounting, groove, arm, shim and pin-height fields are required. G/NPT appears in dimension notes without a complete ordering suffix, so send the original label for confirmation.
