AirTAC BAQK Ø50 double-acting pin clamp cylinders with a bidirectional rod lock and pneumatic/manual release. Match guide-pin diameter/height, workpiece hole, shims, mounting and arm position. Send label, fixture drawing, load/control requirements, quantity and destination for quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Match a BAQK locking pin clamp cylinder

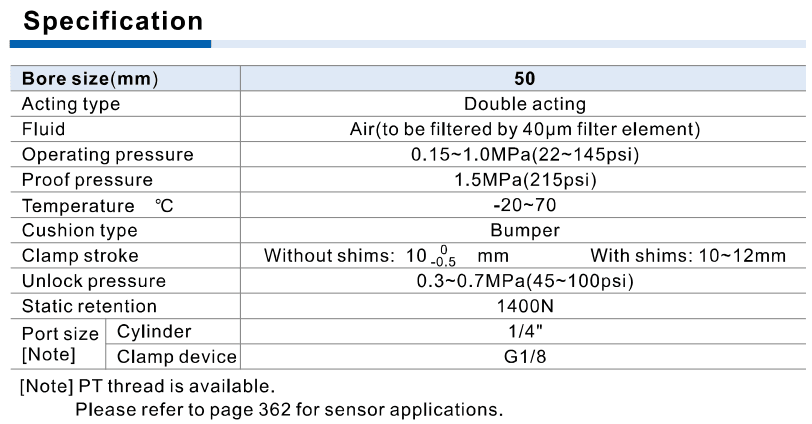

AirTAC BAQK specification official English reference
Helpful for Model Matching:

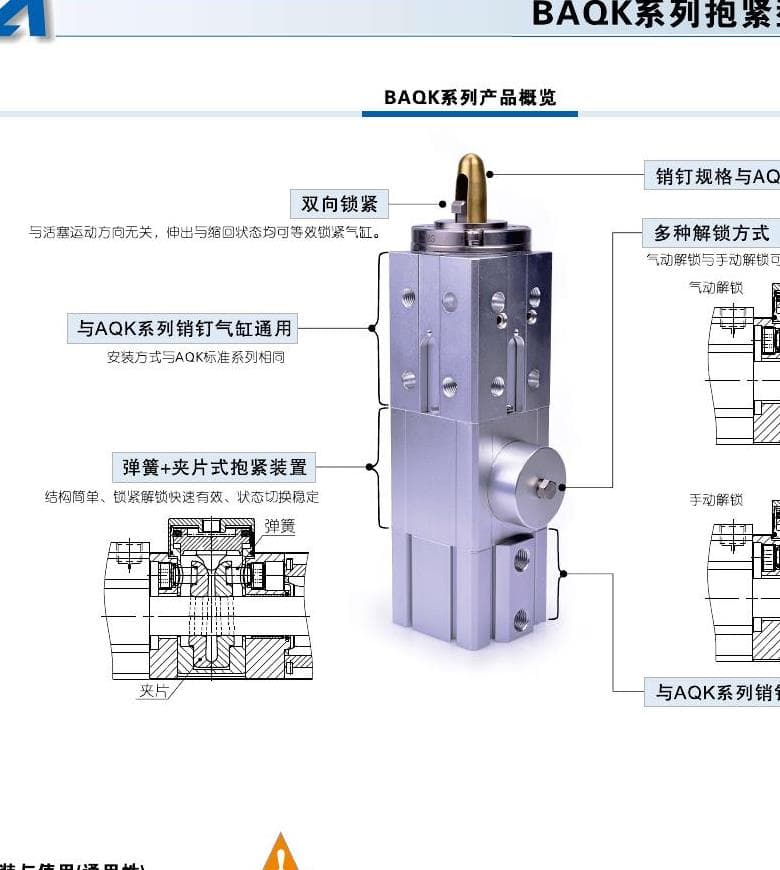

| Identity and locking boundary | BAQK combines a double-acting pin clamp cylinder with a spring/clip bidirectional rod lock. Published static retention 1400N is a static device value, not dynamic braking, safety locking or approval to support a load after air loss. |
| Piston and clamp travel | Cylinder bore 50mm. Without shims clamp stroke 10mm with source tolerance +0/−0.5mm; with shims 10–12mm. Do not confuse clamp stroke with guide-pin height 29/31/34/36mm or guide-pin diameter. |
| Operating and unlock pressures | Cylinder 0.15–1.0MPa; proof 1.5MPa separately. Lock release 0.3–0.7MPa. Release only when piston-side forces are balanced or cylinder is stopped; releasing under unbalanced force can cause sudden rod motion. Do not use lock while rod is moving. |
| Ports and supply circuit | Cylinder standard PT1/4; lock device G1/8. These are different connections. Dimensions note G/NPT alternatives for the cylinder P port, but ordering table publishes only blank PT; confirm the actual alternative code; G/T suffixes are not listed in the ordering table. |
| Air and environment | Double acting, air filtered 40μm or finer, −20 to 70°C and bumper cushioning. Fit meter-out flow control at cylinder port; source directs extra measures for systems with safety equipment. Actual circuit/function must be confirmed for the installation. |
| Mount and groove | Mount A: M10×1.5 screws and Ø10 pin holes; B: M12×1.75 screws and Ø10 pin holes. Four mounting-groove relative positions A/B/C/D. BAQK source refers to AQK for exact groove orientation; retain matching fixture drawing, not an assumed universal mounting fit. |
| Arm position and magnet | Arm A same side as inlet; B90°, C180°, D270° relative to inlet. S magnet is the published code, with sensor grooves around cylinder; actual sensor model and wiring require separate confirmation. A BAQK ordering code without magnet is not listed. |
| Guide pin and shims | Guide-pin diameter 14.1–14.9/15.1–15.9/17.1–17.9/19.1–19.9/24.1–24.9mm with corresponding workpiece holes 15/16/18/20/25mm. No shim: heights 29/29/34/34/34mm, code 290/340. Shim code 2 supplies 2mm (two 0.5+one 1mm): heights 31/31/36/36/36mm, code 310/360. Example 177X340 meansØ17.7mm, height 34.0mm, not 177mm bore or 340mm stroke. |

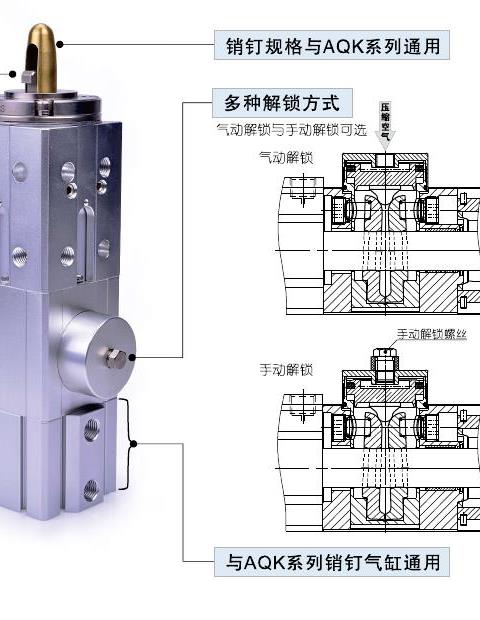

| Unlock sequence and manual release | Source shows separate A/B cylinder ports and C unlock supply, including a lock interval above 0.5s in its example sequence. Pneumatic or manual unlock is possible, but actual balanced forces and stopped condition remain required. Do not treat its sample timing as universal machine-control approval. |
| AQK boundary | Pin specifications and mounting guidance refer to AQK, but BAQK adds a locking device, separate unlock circuit and different own body dimensions. Similar pin size or mounting family does not confirm assembly interchangeability. |
Ordering code matching
Code format
BAQK50S[mount A/B][groove A–D][arm A–D][2/blank]-[pin diameter code]X[290/310/340/360]Pin-height field depends on shims; not cylinder strokeBAQK50SAAA-177X340BAQK50SBAB-177X340BAQK50SAAA2-177X360BAQK50SBDD2-149X310| 1Series and bore | 2Mount / groove / arm | 3Shims | 4Guide pin |
|---|---|---|---|
| BAQK50S: Ø50, magnet | A/B mount; A–D groove; A–D arm | Blank no shim; 2 adds 2mm; pin-height code changes | 14/15/17/19/24 +decimal 1–9; X290/340 or shim 310/360 |
If the label is incomplete, send the readable parts together with a photo.
BAQK50SAAA-177X3401Series and bore
BAQK50S: Ø50, magnet
2Mount / groove / arm
A/B mount; A–D groove; A–D arm
3Shims
Blank no shim; 2 adds 2mm; pin-height code changes
4Guide pin
14/15/17/19/24 +decimal 1–9; X290/340 or shim 310/360
AirTAC BAQK Ø50 double-acting pin clamp cylinders with a bidirectional rod lock and pneumatic/manual release. Match guide-pin diameter/height, workpiece hole, shims, mounting and arm position. Send label, fixture drawing, load/control requirements, quantity and destination for quotation.
No universal safety or load approval is established here. The source specifies static retention and separate unlock conditions; a loaded/unbalanced release may cause sudden movement. Send actual load, direction, fixture and control sequence for assembly confirmation.
