JCH is a double telescopic pin cylinder for fixture positioning. Confirm the pin type, bore, published stroke, sensor option, port thread and mounting arrangement before RFQ.
Ordering code matching
Code format

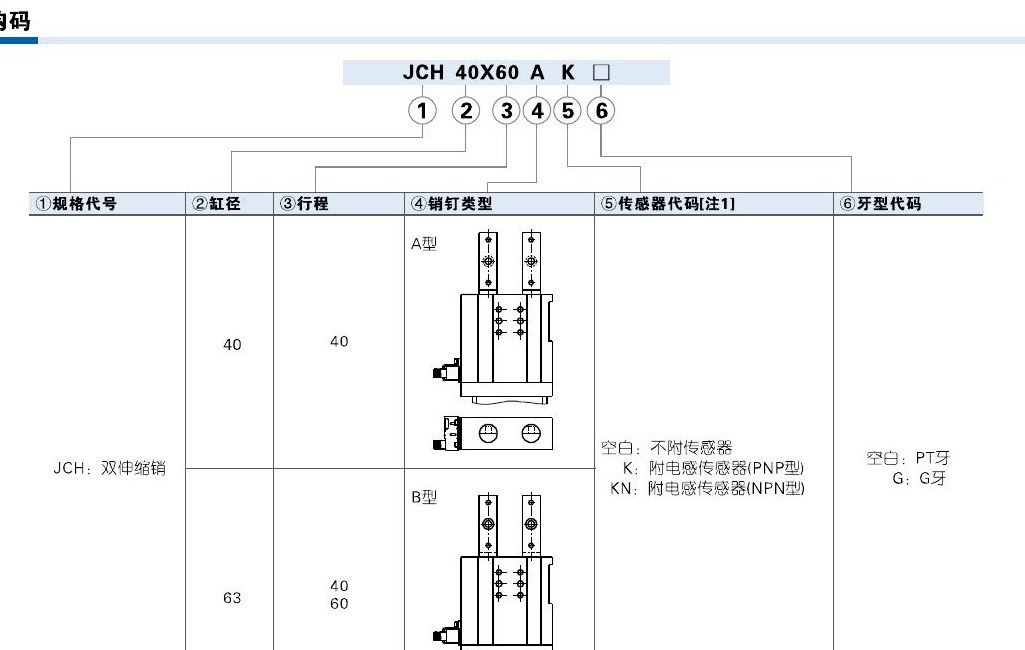

JCH [bore]X[stroke] [A/B] [K/KN] [PT/G]Published JCH code layoutJCH 40X40 A KJCH 63X40 BJCH 63X60 B KN G| ①Series | ②Bore (mm) | ③Stroke (mm) | ④Pin type | ⑤Sensor | ⑥Port thread |
|---|---|---|---|---|---|
| JCH double telescopic pin. | 40, 63 | JCH40: 40; JCH63: 40 or 60. | A or B as published. | Blank none; K PNP; KN NPN. | Blank PT; G G thread. |
If the label is incomplete, send the readable parts together with a photo.
JCH 63X60 B KN GJCHSeries
Double telescopic pin cylinder.
40 / 63Bore
Published bore choices in millimetres.
X40 / X60Stroke
JCH40: 40 mm; JCH63: 40 or 60 mm as published.
A / BPin type
Select the published A or B pin configuration.
K / KNSensor
Blank: no sensor; K: PNP; KN: NPN.
GPort thread
Blank: PT thread; G: G thread.
JCH is a fixture-positioning assembly with two telescopic pins, not a plain rod cylinder. Select the published pin type and stroke together with the bore, then confirm the sensor, thread and installed fixture interface.

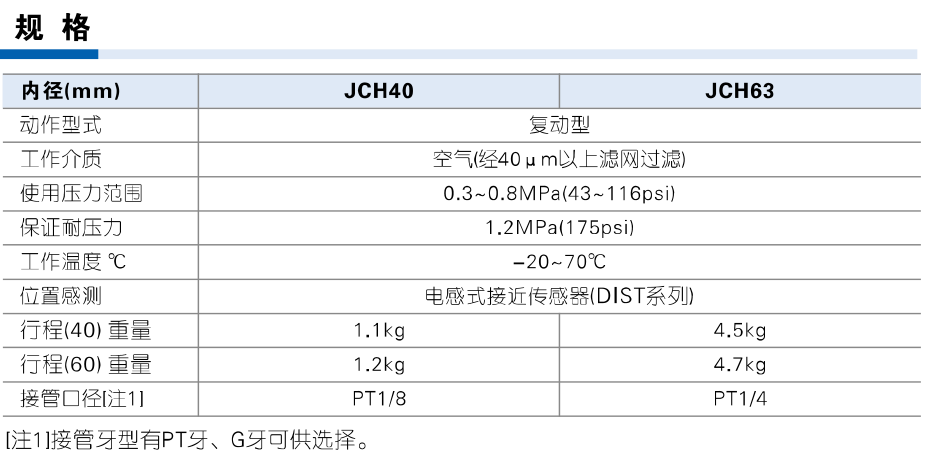

Product matching reference
No. The published stroke, A or B pin type, sensor choice, port thread and fixture mounting are also material to the match. Send the full code and a...
