JCP is a single telescopic pin cylinder for fixture positioning. Confirm the pin type, bore, published stroke, sensor option, port thread and mounting arrangement before RFQ.
Ordering code matching

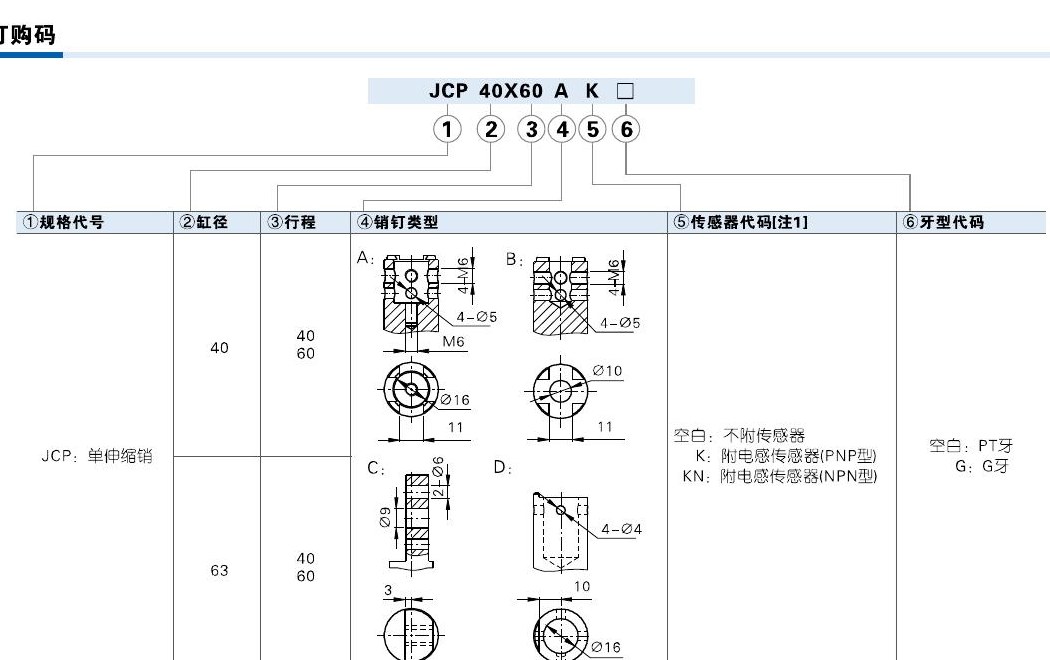

Code format
JCP [bore]X[stroke] [A/B/C/D] [K/KN] [PT/G]Published JCP code layoutJCP 40X40 A KJCP 63X40 BJCP 63X60 D KN G| ①Series | ②Bore (mm) | ③Stroke (mm) | ④Pin type | ⑤Sensor | ⑥Port thread |
|---|---|---|---|---|---|
| JCP single telescopic pin. | 40, 63 | 40, 60 | A, B, C, or D as published. | Blank none; K PNP; KN NPN. | Blank PT; G G thread. |
If the label is incomplete, send the readable parts together with a photo.
JCP 63X60 D KN GJCPSeries
Single telescopic pin cylinder.
40 / 63Bore
Published bore choices in millimetres.
X40 / X60Stroke
Published stroke choices: 40 or 60 mm.
A / B / C / DPin type
Select the published pin configuration.
K / KNSensor
Blank: no sensor; K: PNP; KN: NPN.
GPort thread
Blank: PT thread; G: G thread.
JCP is a fixture-positioning assembly with one telescopic pin, not a plain rod cylinder. Select the published A, B, C, or D pin type and stroke together with the bore, then confirm the sensor, thread and installed fixture interface.
Product matching reference
No. The A, B, C, or D pin type, sensor choice, port thread and fixture mounting are also material to the match. Send the full code and a photo or...
